TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DE2706800LTVS DIODE 4VWM SOD723 |
5,184 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 4V | 6.46V | - | - | - | No | General Purpose | 50pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2708200LTVS DIODE 5VWM SOD723 |
6,143 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5V | 7.79V | - | - | - | No | General Purpose | 43pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2703000LTVS DIODE 1VWM SOD723 |
5,163 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 1V | 2.85V | - | - | - | No | General Purpose | 103pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2703300LTVS DIODE 1VWM SOD723 |
5,386 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 1V | 3.14V | - | - | - | No | General Purpose | 100pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2703600LTVS DIODE 1VWM SOD723 |
9,441 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 1V | 3.42V | - | - | - | No | General Purpose | 97pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2704300LTVS DIODE 1VWM SSSMINI2-F4-B |
5,050 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 1V | 4.09V | - | - | - | No | General Purpose | 91pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2704700LTVS DIODE 1VWM SOD723 |
2,924 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 1V | 4.47V | - | - | - | No | General Purpose | 82pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2705100LTVS DIODE 2VWM SOD723 |
5,473 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 2V | 4.85V | - | - | - | No | General Purpose | 75pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2705600LTVS DIODE 2.5VWM SOD723 |
8,593 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 2.5V | 5.32V | - | - | - | No | General Purpose | 65pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2706200LTVS DIODE 4VWM SOD723 |
8,547 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 4V | 5.89V | - | - | - | No | General Purpose | 55pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
DE2707500LTVS DIODE 5VWM SOD723 |
6,956 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5V | 7.13V | - | - | - | No | General Purpose | 47pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSSMini2-F4-B |
|
|
D3V3HE1B2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
7,140 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

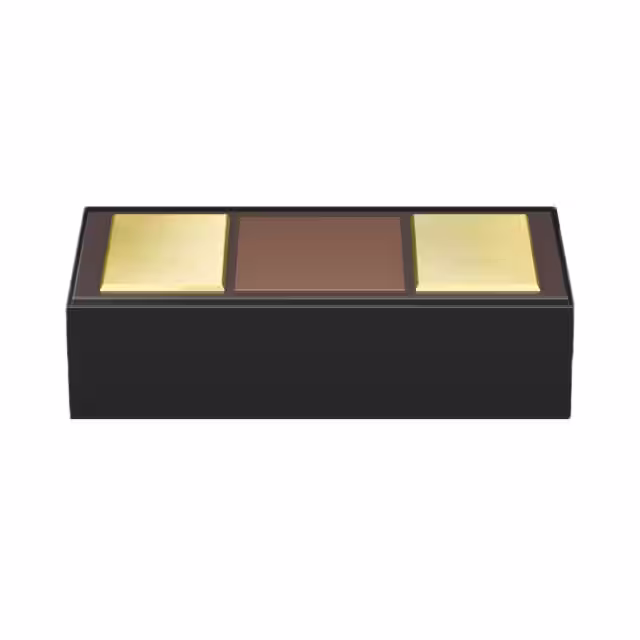

B74121G1160M16016VDC, 0.6X0.3X0.15MM,BI-DIR 15K |
4,833 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 16V (Max) | 17.5V | 25.4V (Typ) | 16A | - | No | General Purpose | 6.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | WL-CSP0201 SL |
|
ESDULC5V0LB-TPTVS DIODE 5VWM 11VC DFN1006-2 |
8,746 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 11V | 1A (8/20µs) | - | No | General Purpose | 2.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDSBLC5V0LB-TPInterface |
3,230 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 5.3V | 12V | 3.5A (8/20µs) | 41W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDHC7V0L-TPESD PROTECTION DEVICES,DFN1006-2 |
3,911 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.8V | 15V | 32A (8/20µs) | 480W | No | General Purpose | 180pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDLC12VLBHE3-TPTVS DIODES |
7,869 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 20V | 5A (8/20µs) | 100W | No | - | 8pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
ESDLC8V0LBHE3-TPTVS DIODES |
9,611 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 9V | 18V | 8A (8/20µs) | 140W | No | - | 9pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
ESD9BL24PTVS DIODE 24VWM 60VC SOD-882 |
6,448 |
|
Datasheet | SOD-882 | - | Bulk | Active | Zener | - | 1 | 24V | 26V | 60V | 6A (8/20µs) | 350W | No | General Purpose | 35pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-882 (DFN1006-2) |
|
|
ESD3302BATVS DIODE 3.3VWM 14.5VC SOT-523 |
9,409 |
|
Datasheet | SOT-523 | - | Bulk | Active | Zener | 2 | - | 3.3V | 5V | 14.5V | 4A (8/20µs) | 60W | No | USB | 0.45pF @ 1MHz (Max) | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-523 |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
