TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "PESD15VS1UBF")
|
PESD15VS1UBFTVS DIODE 15VWM 40VC SOD523 |
9,700 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | General Purpose | 32pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOD-523 |
|
SD36-7GENERAL PROTECTION PP SOD323 T&R |
2,272 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 55V | 5A (8/20µs) | 275W | No | General Purpose | 44pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

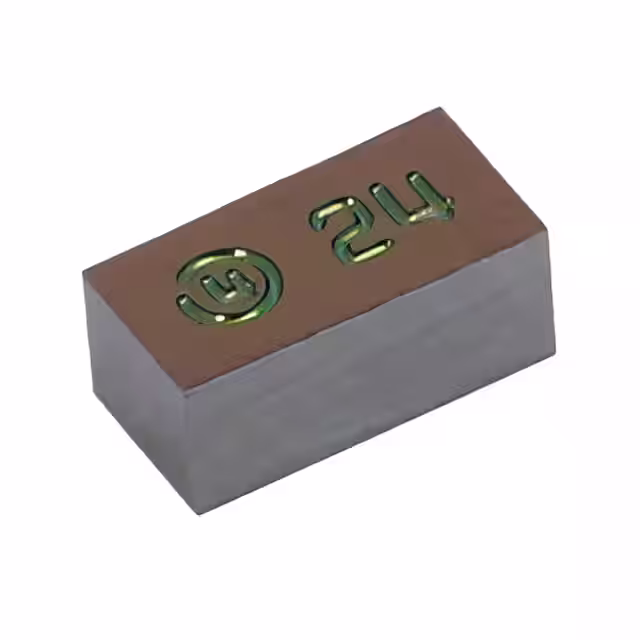

VCUT15A1-SD0-G4-08ESD PROTECTION DIODE CLP060315V; |
4,262 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V (Max) | 15.8V | 26V | 2.5A (8/20µs) | 65W | No | General Purpose | 5.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
VCUT05G1-SD0-G4-08ESD PROTECTION DIODE CLP0603 |
4,493 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 6.5V | 13V | 6A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
VCUT03G1-SD0-G4-08TVS DIODE 3.3VWM 13VC CLP0603 |
7,682 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6.5V | 13V | 6A (8/20µs) | 78W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
D3V3Q1B2DLP3-7TVS DIODE 3.3VWM 7.5VC ESN0603-2 |
6,931 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 3.8V | 7.5V | 4A (8/20µs) | 30W | No | General Purpose | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X3-ESN0603-2 |
|
|
DESD5V0V1BDLP3-7TVS DIODE 5VWM 12.8VC ESN0603-2 |
9,610 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 6V | 12.8V | 2A (8/20µs) | 20W | No | General Purpose | 5.3pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X2-ESN0603-2 |
|
ESDZV18-1BF4TKTVS DIODE 24VWM 21.5VC ST0201 |
9,258 |
|
Datasheet | 0201 (0603 Metric) | ESDZ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 18V | 21.5V (Typ) | 6A (8/20µs) | 140W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ST0201 |
|
|
PESD15VS1ULD-QYLPESD15VS1ULD-Q/SOD882D/DFN1006 |
7,458 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 150W | No | Telecom | 32pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
|
VCUT10G1-SD0-G4-08TVS DIODE 10VWM 18VC CLP0603 |
7,517 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V (Max) | 11V | 18V | 4A (8/20µs) | 72W | No | General Purpose | 7.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | CLP0603 |
|
|
VCUT15G1-SD0-G4-08ESD PROTECTION DIODE CLP060315V |
5,213 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 15.8V | 26V | 2.5A (8/20µs) | 65W | No | General Purpose | 5.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
AOZ8231ADI-05TVS DIODE 5VWM 15.5VC 2DFN |
9,516 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 15.5V | 5A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
|
AOZ8231ADI-12TVS DIODE 12VWM 26VC 2DFN |
5,940 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 26V | 4A (8/20µs) | - | No | General Purpose | 13pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
|
AOZ8231ADI-24TVS DIODE 24VWM 39VC 2DFN |
7,151 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 29V | 39V | 2.5A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
AOZ8251ADI-05TVS DIODE 5VWM 28VC 2DFN |
7,936 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 6.5V | 28V | 4A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|
|
AOZ8851ADI-05TVS DIODE 5VWM 28VC 2DFN |
8,229 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 6.5V | 28V | 4A (8/20µs) | - | No | General Purpose | 0.22pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|
|
AOZ8251BDI-05TVS DIODE 5VWM 24VC 2DFN |
7,337 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Box (TB) | Not For New Designs | Zener | - | 1 | 5V (Max) | 5.5V | 24V | 16A | - | No | General Purpose | 5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|
|
AOZ8S501BDS-051CH 5V BIDIRECTIONAL TVS |
2,000 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.7V | 11.5V | 20A (8/20µs) | - | No | General Purpose | 35pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
MMBZ33VALT3TVS DIODE 26VWM 46VC SOT23-3 |
9,986 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 26V | 31.35V | 46V | 870mA | 40W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
MMBZ6V2ALT3TVS DIODE 3VWM 8.7VC SOT23-3 |
9,933 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3V | 5.89V | 8.7V | 2.76A | 24W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
