TVS Diodes
Explore TVS Diodes parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V3Z1B2LP-7BDATALINE PROTECTION PP X1-DFN100 |
2,333 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 17V | 4A (8/20µs) | 250mW | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
ESDULC0524P5-TPTVS DIODES |
3,971 |
|
Datasheet | 10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 7V | 12V | 4.5A (8/20µs) | 54W | Yes | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
VBUS03B1-SD0HG4-08TVS DIODE 3.3VWM 18VC CLP0603 |
2,854 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 6V | 18V | 2.5A | 45W | No | - | 0.29pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | CLP0603 |
|
|
CSPSBULC5V0LB-TPInterface |
8,357 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 8V | 8V | 5A (8/20µs) | 35W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
ESD15VL-TPInterface |
7,222 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 15V (Max) | 16.7V | 30V | 10A (8/20µs) | 300W | No | General Purpose | 65pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CSP5V0L-TPInterface |
9,043 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 5V (Max) | 5.8V | 10.5V | 50A (8/20µs) | 500W | No | General Purpose | 110pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
AOZ8S207BLS-011 CHANNEL BIDIRECTIONAL TVS |
5,549 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 1V (Max) | 1.3V | 5.6V (Typ) | 5A (8/20µs) | 28W | No | HDMI, USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8S305BLS-121 CHANNEL BIDIRECTIONAL ULTRA LO |
6,614 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 15.5V (Typ) | 4A (8/20µs) | - | No | HDMI, USB | 0.25pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
FC09B1606NS-0LED ESD PROTECTION FC BI-DIRECTI |
6,427 |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD15VS1UB-QFPESD15VS1UB-Q/SOD523/SC-79 |
2,291 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | CAN, Telecom | 32pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
AOZ8S530BLS-051CH 5.0V BIDIRECTIONAL 28A HIGH |
6,174 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.8V | 7.6V (Typ) | 28A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8S204BLS-24LINEAR IC |
5,997 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 27V | 6.5V (Typ) | 8.5A (8/20µs) | 50W | No | HDMI, USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8660BLS-011CH 1.0V BIDIRECTIONAL 0.15PF TV |
9,464 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 1V (Max) | 1.5V | 7V (Typ) | 5A (8/20µs) | 35W | No | USB | 0.15pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
AOZ8251BDI-121 CHANNEL 12V BIDIRECTIONAL TVS |
3,330 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 25V | 1.5A (8/20µs) | - | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (0.62x0.32) |
|
|
AOZ8S530BLS-031CH 3.3V BIDIRECTIONAL 35A HIGH |
2,260 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 7.5V (Typ) | 35A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|

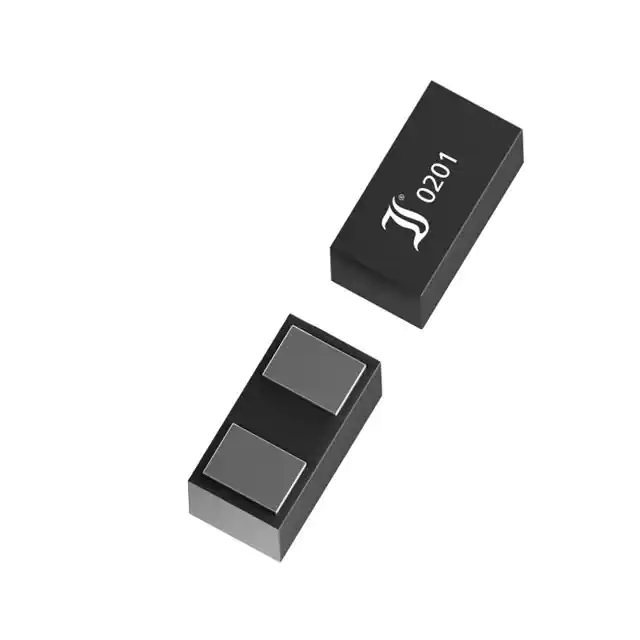

ESD3V3WTTVS DIODE 3.3VWM 8VC SOD-523 |
7,311 |
|
Datasheet | SC-79, SOD-523 | - | Bulk | Active | Zener | 1 | - | 3.3V | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 30pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESDSBL5V0LTB-TPDIODE ESD PROTECTION DFN |
3,774 |
|
Datasheet | SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.3V | 12V | 8A (8/20µs) | 96W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
ESDSBLC12VLB-TPInterface |
2,937 |
|
Datasheet | 0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 12V (Max) | 13V | 22V | 7A (8/20µs) | 120W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CPDZC5V0BU-HFDIODE ESD 5VWM 56W 0201/DFN0603 |
9,365 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 14V | 4A (8/20µs) | 56W | No | General Purpose | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
FC09B1606NLLED ESD PROTECTION FC BI-DIRECTI |
4,016 |
|
Datasheet | - | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Frequently Asked Questions
What are TVS Diodes components used for?
TVS Diodes components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right TVS Diodes part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find TVS Diodes parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
