RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AANI-CH-0070RF ANTENNA 2.4 GHz CERAMIC CHIP |
9,967 |
|
Datasheet | AANI-CH | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -6.5dB | 1.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, IoT, ISM, M2M, Wi-Fi, Zigbee™ |
|
|
ACS0301UANTENNA UWB MULTI-LAYER CHIP |
2,913 |
|
Datasheet | UWB | Tape & Reel (TR) | Active | Cellular | Wide Band | 7.1GHz | 6GHz ~ 8.2GHz | Chip | 1 | 2 | - | 2.2dBi | - | - | - | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|

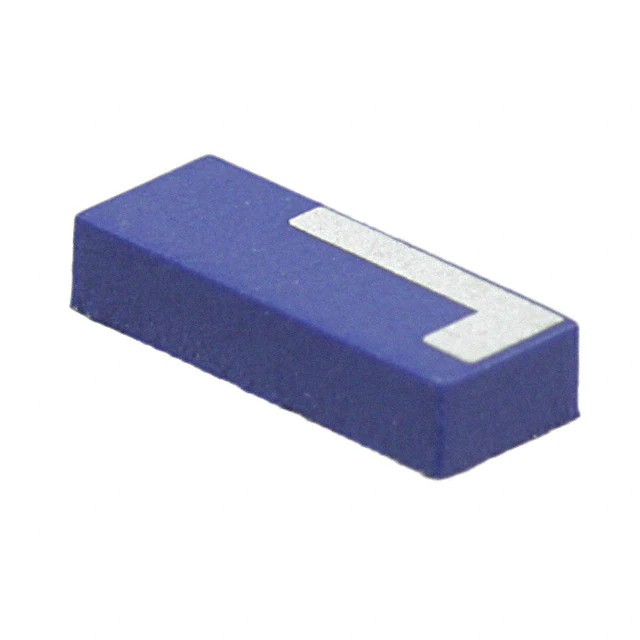

ANT5320LL24R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
9,152 |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -19dB | 2.78dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
|
AC10300-01ANT WIFI6E WLAN 2.4/5/6GHZ CHP |
4,000 |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Chip | 3 | 3, 5, 4.5 | -6dB, -3.5dB, -3.9dB | 0.5dBi, 2.26dBi, 2.52dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
|
|
ANT162450TT-3001A1MULTILAYER CHIP ANTENNA FOR WIFI |
4,000 |
|
Datasheet | ANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Chip | 2 | 1.7, 1.8 | - | 1.8dBi, 1.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.018" (0.45mm) | General Purpose |
|
|
ANT167250ST-1210A1MULTILAYER CHIP ANTENNA FOR UWB |
4,000 |
|
Datasheet | ANT | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 7.25GHz | 6.2GHz ~ 8.3GHz | Chip | 1 | 1.58 | - | 8.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.018" (0.45mm) | General Purpose |
|
|
L000558-01FPC ANT, HDP, 50MM, MHF, LPWAN 8 |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 1.1dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-01FPC ANT, HDP, 50MM, MHF, LPWAN 9 |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 1.5dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-01FPC ANT, VDP, 50MM, MHF, LPWAN 9 |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 3.34dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000551-01FPC ANT, VDP, 50MM, MHF, LPWAN 8 |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 2.2dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
7200AT14A2000001TRF ANT 6200-8240MHZ CHIP SMD |
8,000 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | Wide Band | 7.22GHz | 6.2GHz ~ 8.24GHz | Chip | 1 | - | 3.5dB | 3.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | General Purpose |
|
|
RFANT5220110A0TANTENNA |
1,780 |
|
Datasheet | RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 2 | - | 2dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | Bluetooth, ISM |
|
|
AANI-NI-0014STAMPED METAL NICHE UWB |
5,209 |
|
Datasheet | AANI-NI | Tape & Reel (TR) | Active | Ultra Wide Band | Ultra Wide Band | - | 6.24GHz ~ 8.74GHz | Stamped Metal | 5 | - | -8.9dB, -7.5dB, -7.4dB, -7.7dB, 9.1dB | 2.8dBi, 3.4dBi, 2.2dBi, 2.5dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.019" (0.49mm) | UWB |
|
|
AANI-NI-0013STAMPED METAL NICHE 2.4GHz |
8,657 |
|
Datasheet | AANI-NI | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | - | -10.1dB | 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, Wi-Fi |
|
|
L000551-04FPC ANT, VDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 2.2dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-02FPC ANT, VDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 1.5 | - | 3.3dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-04FPC ANT, HDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 1.5dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-02FPC ANT, HDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 1.5 | - | 1.5dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-04FPC ANT, VDP, 50MM, MHF4, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 3.34dBi | 10 W | Cable - 50mm | MHF4L | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000551-02FPC ANT, VDP, 100MM, MHF, LPWAN |
2,000 |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 1.5 | - | 2.2dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
