ELECTRONIC COMPONENTS
RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA963.A.BIVW.002.WMANT 5G/4G MIMO SUB 6GHZ WALL MNT |
3,171 |
|
Datasheet | Guardian | Box | Active | Cellular, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | Module | 10 | - | - | 1.93dBi, 2.76dBi, 3.56dBi, 3.62dBi, 4.71dBi, 4.71dBi, 4.32dBi, 4.76dBi, 3.06dBi, 3.84dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 1.024" (26.00mm) | 4G, 5G, GSM, LTE, UMTS, Wi-Fi |
|
MA285.LBICG.0015IN1 GNSS:3M RG174 FAKRA C LTE(M |
214 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2. | Module | 12 | - | -6dB, -10dB | 1.99dBi, 2.34dBi, 1.98dBi, 2.3dBi, 3.15dBi, 3.63dBi, 4.11dBi, 2.85dBi, -3.01dBi, -2.07dBi | - | Cable - 2m, LNA, Filter | RP-SMA Male (2), SMA Male (3) | IP67 | - | - | Adhesive | 0.512" (13.00mm) | Beidou, DCS, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, Wi-Fi |
|
MA950.W.A.LBICG.005GUARDIAN MA950.W 5IN1 ADHESIVE M |
3,955 |
|
Datasheet | Guardian | Box | Active | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.574GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.45GHz, 2.59GHz, 3.45GHz, 5.375GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.575GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Module | 15 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3dBi, 1.98dBi, 3.01dBi, 3.98dBi, 4.37dBi, 4.37dBi, 4.35dBi, 3.7dBi, 4.49dBi, 4.84dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | 2G, 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
GA400.A.305111WIDEBAND DIPOLE ANT 400-6000MHZ |
1,875 |
|
Datasheet | Guardian | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 3.5dBi, 2.4dBi, 2.4dBi, 2.6dBi, 4dBi, 3.8dBi, 4.6dBi, 2.2dBi, 5.3dBi | 2 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | 4G, 5G, LTE, Wi-Fi |
|
MA912.W.A.BI.001MA912.W.A.BI.001 2IN1 WHITE ADHE |
3,486 |
|
Datasheet | Guardian | Box | Active | Cellular, General ISM, WiFi | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz, 3.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 3 | - | 2.48dBi, 2.9dBi, 1.44dBi, 2.98dBi, 3.27dBi, 3.27dBi, 2.4dBi, 2.99dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
2344721-3CEILING MOUNT ANTENNA MIMO 4X4 S |
2,474 |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.45GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | Dome | 2 | - | - | 4dBi, 6dBi | 10 W | Cable - 2m | RP-SMA | IP66 | - | - | Ceiling Mount | 1.181" (30.00mm) | LTE, UMTS, WCDMA, Wi-Fi |
|
MA931.A.LBICGH.008GUARDIAN MA931.W 6-IN-1 ADHESIVE |
3,343 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 3.4GHz, 5.5GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.85GHz, 5.1 | Module | 12 | - | - | 3.81dBi, 3.81dBi, 3.73dBi, 4.06dBi, 4.61dBi, 3.91dBi, 3.98dBi, 4.25dBi, 4.6dBi, 4.32dBi, 4.48dBi | 50 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
DASUTCC500NFRF ANT 700MHZ/850MHZ FLAT PATCH |
1,018 |
|
Datasheet | Clarity™ | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
GNSS1-TMG-26NMSCLRF ANT 1.5845GHZ DOME N TYPE F |
1,824 |
|
Datasheet | GNSS1-TMG-26N | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Base Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
MA352.A.LBI.0013IN1 MAGNET MNT ANT 3M SMA(M) |
2,766 |
|
Datasheet | Steedan | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Module | 11 | - | -10dB | 1.1dBi, 3.5dBi, 5dBi, 5.1dBi, 1dBi, 1dBi, 1dBi, 6.6dBi, 6.9dBi, 5.9dBi, 3.3dBi | 10 W | Cable - 3m, LNA, Filter | SMA Male (2) | IP65 | - | - | Magnetic | 1.881" (47.78mm) | 3G, 4G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MA9909.A.002GUARDIANX 3M 9IN1 1*ACTIVE GNSS |
1,581 |
|
Datasheet | Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.592GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.59GHz | 698MHz ~ 960MHz, 1.574GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Module | 8 | 2 | - | 1.2dBi, 1.4dBi, 1.72dBi, -4.51dBi, 2.8dBi, 2.75dBi, 2.97dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA460.K.LBIC.002RF ANT 829MHZ/1.94GHZ FLAT BAR |
2,792 |
|
Datasheet | Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | -10dB | 6.8dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
MA9908.A.001GUARDIANX 3M 8IN1 1*ACTIVE GNSS |
2,133 |
|
Datasheet | Guardian | Bag | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 761MHz, 859MHz, 920MHz, 1.5785GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz, 5.5GHz | 698MHz ~ 960MHz, 1.547GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 10 | 2 | - | 1.41dBi, 1.53dBi, 1.04dBi, 1.5dBic, 0dBic, 3.17dBi, 3.54dBi, 3.91dBi, 4.08dBi, 4.23dBi, 3.47dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Surface Mount | 0.650" (16.50mm) | DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
MA450.K.LBICG.004RF ANT 829MHZ/1.94GHZ FLAT BAR |
2,343 |
|
Datasheet | Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Flat Bar | 6 | 2 | - | 6.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.220" (31.00mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
MA9929.A.0029-IN-1 GUARDIANX WITH GNSS, 4 5G |
1,488 |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, | Module | 15 | 2 | - | 2.82dBi, 2.84dBi, 2.06dBi, 3.98dBi, 3dBi, 3.2dBi, 3.71dBi, 3.16dBi, 3.92dBi, 2.46dBi, 2.32dBi, 4.25dBi, 1.78dBi, 1.4dBi | 20 W | Cable - 3m, LNA, Filter | Fakra (3) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, GSM, LTE, Wi-Fi |
|

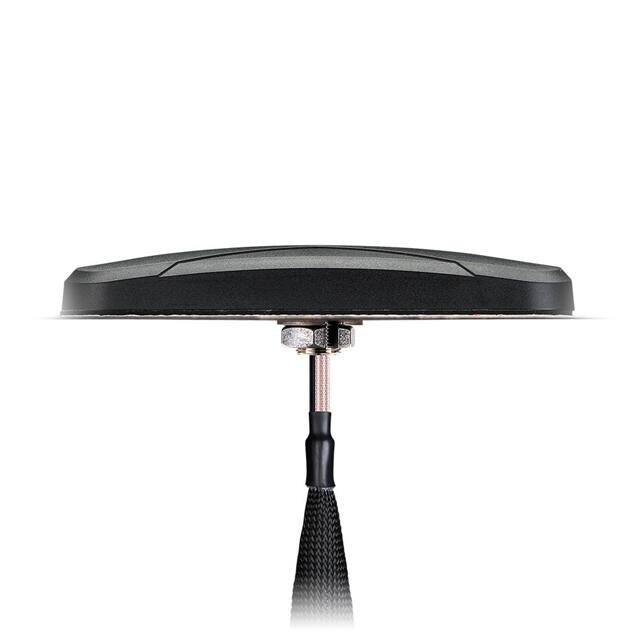

MA450.K.LBICG.003RF ANT 829MHZ/1.575GHZ FLAT BAR |
4,506 |
|
Datasheet | Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Flat Bar | 7 | 2 | -10dB | 4.4dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
|
ANT8010LL05R1575AANTENNA CHIP GPS |
2,970 |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | 10dB | 0.67dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | GPS |
|
ANT1608LL14R2460AANT 2.4/6GHZ WIFI 6 2.4G/5-7G |
23,928 |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 6.1375GHz | 5.15GHz ~ 7.125GHz | Chip | 2 | - | 7dB | 3.65dBi, 3.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Wi-Fi 6E |
|
|
RFANT3216120A1TANTENNA |
2,000 |
|
Datasheet | RFANT | Tape & Reel (TR) | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Chip | 1 | - | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.472" (12.00mm) | Bluetooth, ISM |
|
|
ANT3216A063R2455AANTENNA CHIP 2.4/5GHZ PIFA |
8,970 |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 10dB | 1.59dBi, 2.23dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | ISM, Wi-Fi |
FAQ
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
