RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YG0021AAPATCH GNSS L1&B1&G1 ACTIVE 18X18 |
1,186 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.56GHz ~ 1.605GHz | Ceramic Patch | 1 | 2 | - | 2.5dBic | - | LNA | I-PEX | - | - | - | Surface Mount | 0.349" (8.86mm) | GNSS |
|
W1903ANT EXT STICK 824-960/1710-2170 |
267 |
|
Datasheet | External Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | - | - | 0dBi | 2 W | - | FME Female | - | - | - | Connector Mount | 1.969" (50.00mm) | 2G, 3G, 4G |
|
S131CL-6-PX-2450SRF ANT 2.4GHZ WHIP/TILT CONN 6" |
615 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | Cable - 152mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.425" (87.00mm) | - |
|
|
2246667-1DUAL BAND PUCK ANTENNA ASSY, 1.3 |
3,274 |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3.5 | -5dB | 1.2dBi, 4.7dBi | 10 W | Cable - 136.5mm | MHF | - | - | - | Panel Mount | 0.240" (6.10mm) | Wi-Fi |
|
|
2118308-24G WORLD BAND, METASPAN, PCB, W/ |
228 |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular, General ISM | Wide Band | 829MHz, 859MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.5GHz | 698MHz ~ 960MHz, 824MHz ~ 894MHz, 868MHz ~ 870MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 8 | 3 | - | 3.9dBi | - | Cable - 120mm | MHF4L | - | - | - | Adhesive | 0.052" (1.32mm) | CDMA, GSM, ISM, LTE, UMTS, ZigBee™ |
|
PC29.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
156 |
|
Datasheet | TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|
NMOQW700STAINLESS BASE / WHIP, 0 DB / 2 |
124 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|
APAMP-124RF ANT 1.575GHZ DOME SMA ML MAG |
3,901 |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GPS |
|
GGBTP.35.3.A.40TERRABLAST GGBTP.35.3.A.40 GPS L |
113 |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 4.12dBi, 4.03dBi, 4.33dBi | - | - | Pin | - | - | - | Adhesive | 0.146" (3.72mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-5GMWS1-SMARF ANT 3.3GHZ-5.0GHZ 5G TILT SMA |
813 |
|
Datasheet | SMA | Bulk | Active | Cellular, Navigation | Wide Band | 3.625GHz, 3.95GHz, 4.965GHz | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Whip, Tilt | 3 | 1.3, 3.3, 3.4 | - | 5.9dBi, 5.4dBi, 2.3dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | 5G, GPRS, LTE |
|
ANT-DB1-WRT-MHF4-100RF ANT 2.4/5GHZ WRT MHF4 -100 |
483 |
|
Datasheet | WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-916-MHW-RPS-LRF ANT 916MHZ WHIP CTR CAB 180" |
779 |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 916MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 4.6m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SDCP.5900.12.4.A.405.9GHZ DSRC SMD PATCH ANTENNA 12 |
305 |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 2 | - | 4.64dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | DSRC |
|

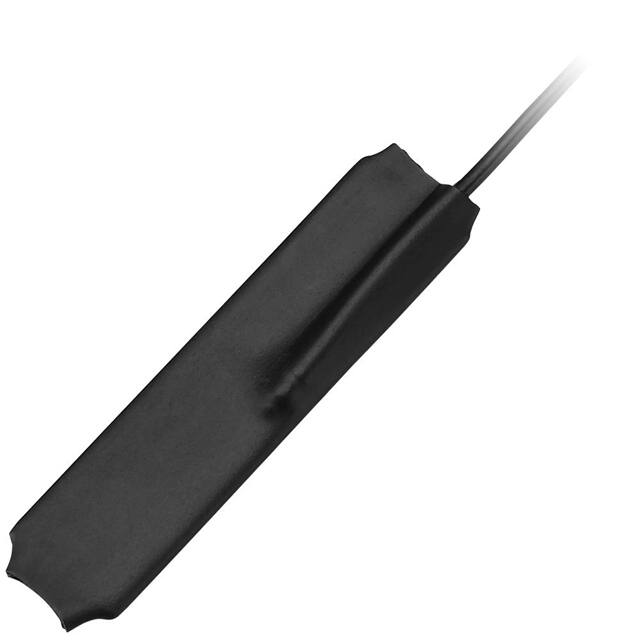

GSA.8830.A.201111GSA.8830 3G/2G CELLULAR ADHESIVE |
177 |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Flat Bar | 5 | - | -8dB, -9dB, -10dB | -0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.181" (4.60mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|
ANT-W63-WRT-MHF4RF ANT 2.4/5/6GHZ DOME PNL MT MH |
985 |
|
Datasheet | WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | MHF4 | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ALPHA3A/0.2M/MMCXM/S/S/26RF ANT 850MHZ/868MHZ BLADE MMCX |
112 |
|
Datasheet | ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
|
YG0065AAMAG ACTIVE GNSS L1 3M FAKRA C |
958 |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | 1.575GHz ~ 1.61GHz | Dome | 1 | 2 | - | 2.8dBi | - | LNA, Filter | Fakra Female | IP66 | - | - | Adhesive | 0.492" (12.50mm) | GNSS, LTE |
|
AP-DIPOLE-W-I-S2-RP-BLANTENNA PLUS DIPOLE ANTENNA |
191 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.445GHz, 5.35GHz | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | - | - | 4.03dBi, 4.58dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.980" (202.70mm) | 802.11a/b/g/-c |
|
AEACAC053010Z-S433ANTENNA AUTO 433MHZ EXT WHIP |
177 |
|
Datasheet | AEAC | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, Sigfox |
|

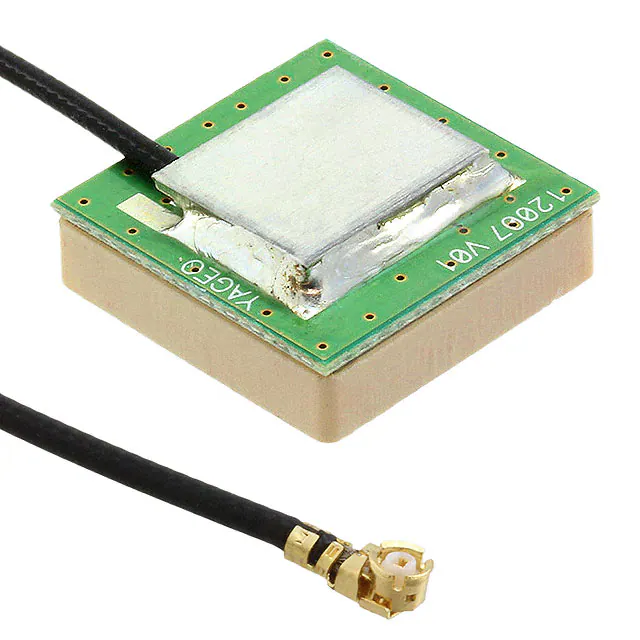

ANT1818JB30B1575ARF ANT 1.575GHZ CER PATCH CAB |
118 |
|
Datasheet | 1818 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.561GHz ~ 1.589GHz | Ceramic Patch | 1 | 2 | - | -2.67dBic | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
