RF Antennas
Explore RF Antennas parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-W63-WRT-MHF4-150RF ANT WIFI6/6E WRT MHF4 -150 |
495 |
|
Datasheet | WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.4, 1.5, 2.2 | - | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 150mm | MHF4 | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
X1005323-W3A1SA10A1WIFI ANTENNA |
200 |
|
Datasheet | - | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Module | 2 | 2 | - | 2.5dBi, 3.3dBi | - | Cable - 1m, LNA | SMA Male | IPX7 | - | - | Adhesive | 0.264" (6.70mm) | Wi-Fi |
|
ECHO2/0.2M/UFL/S/S/1RF ANT 850/868MHZ PCB TRACE CAB |
114 |
|
Datasheet | ECHO 2 | Bulk | Active | - | Wide Band | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | PCB Trace | 7 | 1.5 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | - |
|
2246667-2DUAL BAND PUCK ANTENNA ASSY, 1.1 |
173 |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3.5 | -5dB | 1.2dBi, 4.7dBi | 10 W | Cable - 136.5mm | MHF | - | - | - | Panel Mount | 0.240" (6.10mm) | Wi-Fi |
|
SDDCP.5900.25.10.A.08DUAL PIN SINGLE FEED STACKED PAT |
4,716 |
|
Datasheet | - | Tray | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.3325GHz, 5.8875GHz | 2.32GHz ~ 2.345GHz, 5.85GHz ~ 5.925GHz | Ceramic Patch | 2 | - | -10dB | 5.4dBi, 3.5dBi | - | - | Pin | - | - | - | Adhesive | 0.400" (10.15mm) | DSRC |
|
APAKC2506A-SG3RF ANT 1561/1575/1602MHZ PATCH |
520 |
|
Datasheet | APAK | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.555GHz ~ 1.615GHz | Ceramic Patch | 1 | 1.5 | - | -1.5dBi, -1dBi, -2.5dBi | - | Cable - 59mm, LNA | I-PEX | - | - | - | Surface Mount | 0.272" (6.90mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

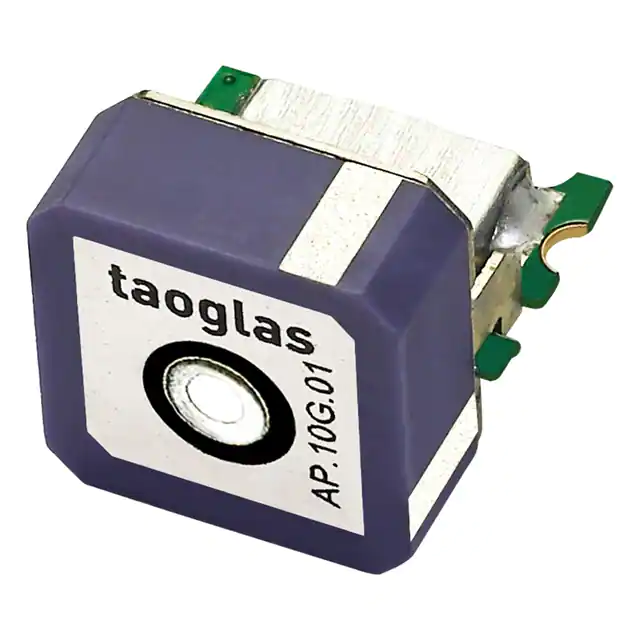

AP.10G.01RF ANT 1.575GHZ CER PATCH SLD |
2,776 |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -10dBic | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
AEACBA045015-S2332RF ANT 2332 MHZ SDARS CABLE SMA |
187 |
|
Datasheet | AEAC | Box | Active | SDARS | UHF (2GHz ~ 3GHz) | 2.32GHz | 2.32GHz ~ 2.345GHz | Puck | 1 | 1.5 | - | 3dBi | - | Cable - 3m, LNA | SMA | - | - | - | Magnetic | 0.594" (15.10mm) | SDARS |
|
|
TG.45.8113WTG.45.8113W APEX III WIDEBAND 4G |
207 |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 460MHz, 752MHz, 753MHz, 859MHz, 920MHz, 1.5815GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Whip, Straight | 13 | - | - | 1.46dBi, 2.87dBi, 2.87dBi, 3.26dBi, 3.58dBi, 0.75dBi, 3.95dBi, 4.17dBi, 4.85dBi, 2.82dBi, 4.16dBi, 0.26dBi, 3.88dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.583" (218.00mm) | Beidou, CDMA, DCS, EDGE, Galileo, GLONASS, GPRS, GPS, HSPA, LTE, PCS, UMTS, WCDMA |
|
GSA.8845.A.105111GSA.8845 WIDEBAND 4G/3G/2G LTE I |
132 |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 460MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.85GHz | Flat Bar | 9 | - | - | -0.23dBi, 2.56dBi, 2.56dBi, 1.93dBi, 2.43dBi, 2.31dBi, 3.85dBi, 3.55dBi, 5.32dBi | 5 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.535" (13.60mm) | CDMA, DCS, GPS, GSM, LTE, PCS, UMTS, WLAN |
|
|
NMOC/P3EBASE WHIP ENCLOSED, 4 DBI, 806 - |
188 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.92GHz | 824MHz ~ 960MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 1 | - | - | 4dBi | 10 W | - | NMO | - | - | - | Magnetic | 4.700" (119.38mm) | - |
|
NBR-0041NEBRA 3DBI GLASS FIBER LORA ANTE |
118 |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 445MHz | 420MHz ~ 470MHz | Whip, Straight | 1 | - | - | 3dBi | - | - | N Type | - | - | - | Connector Mount | - | LoRa |
|
|
YG0028AAGNSS L1&L5 ACTIVE 3M, MAGNETIC |
971 |
|
Datasheet | - | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.582GHz | 1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz | Dome | 2 | 1.5 | - | 2.64dBi, 2.64dBi | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Magnetic | 1.496" (38.00mm) | GNSS |
|
|
2-1513472-6UAM ASSEMBLY 830 MM CABLE BLACK |
111 |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Stamped Metal | 2 | 3 | - | 3dBi | - | Cable - 500mm | MHF | - | - | - | - | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
TRAB806-17103RF ANT 850MHZ/900MHZ DOME NMO |
125 |
|
Datasheet | Phantom® | Bulk | Active | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 806MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Dome | 7 | 2, 2.5 | - | 5.9dBi, 5.8dBi, 5.1dBi, 4.2dBi, 4.2dBi, 4.4dBi, 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 2.300" (58.42mm) | AMPS, DCS, GPS, GSM, PCS, UMTS |
|
BMHO80617102NMRF ANT OMNI CELLULAR 2 DBI G |
124 |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ICEFINWDMNRF ANT 2.4GHZ/5.4GHZ BLADE N FEM |
134 |
|
Datasheet | ICEFIN | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 2 | 2 | - | 6.2dB | 30 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | - |
|
NBR-0042NEBRA 5.8DBI GLASS FIBER LORA AN |
164 |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 19.685" (500.00mm) | LoRa |
|
NMO700STAINLESS SPRING BASE / WHIP, EN |
1,262 |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
SG1015NM-2450RF ANTENNA 2.4GHZ WHIP STR N MAL |
4,329 |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.44175GHz | 2.4GHz ~ 2.4835GHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type | IP67 | - | - | Connector Mount | 8.071" (205.00mm) | General Purpose |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
