RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL.10.1HH11WRF ANT 749MHZ/892MHZ DOME NMO |
4,076 |
|
Datasheet | Shockwave | Bag | Discontinued at Digi-Key | Cellular, Navigation, WiFi | Wide Band | 749MHz, 892MHz, 1.5GHz, 1.9GHz, 2.6GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 5 | - | - | 2.6dBi, 2.5dBi, 1.2dBi, 3.2dBi, 2.8dBi | - | - | NMO | IP69K | - | - | Base Mount | 3.343" (84.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|

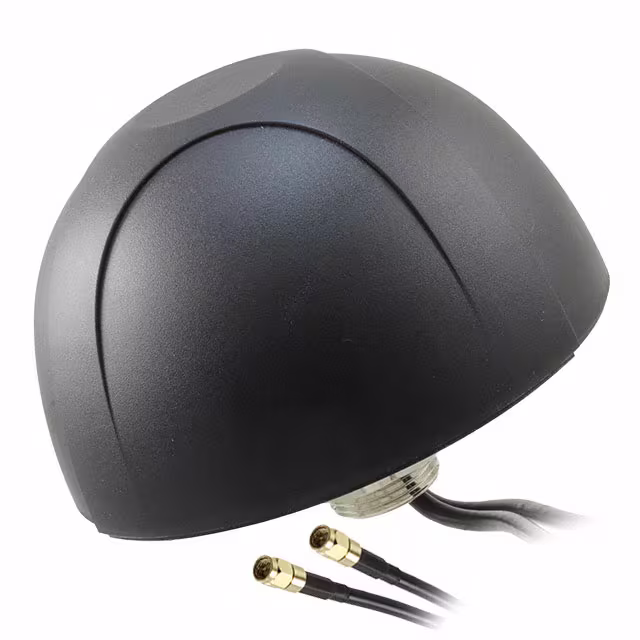

MA741.A.BI.001RF ANT 742/892MHZ DOME SMA MALE |
4,089 |
|
Datasheet | Pantheon | Box | Discontinued at Digi-Key | Cellular, Navigation | Wide Band | 742MHz, 892MHz, 1.575GHz, 1.9GHz, 2.8GHz | 698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz | Dome | 6 | - | - | 2.52dBi, 1.48dBi, 32dBi, 1.27dBi, 0.15dBi, 3.2dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | CDMA, GPS, GSM, LTE, UMTS |
|
G20.B.305111.WMCRF ANT 892MHZ/1.94GHZ DOME SMA |
2,434 |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | - | - | 4.21dBi | 5 W | - | SMA Male | IP69K | - | - | Chassis Mount | 1.142" (29.00mm) | CDMA, HSDPA, GSM, UMTS, WCDMA |
|
GRS.01.A.024KSSX1RF ANT 1.575GHZ DOME CONNECTOR |
4,479 |
|
Datasheet | - | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | - | - | - | Connector | - | - | - | Base Mount | 7.008" (178.00mm) | Beidou, Galileo, GLONASS, GPS |
|
WMA.01.301151RF ANT 2.4GHZ MODULE RP-SMA MAG |
1,090 |
|
Datasheet | - | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 1.92 | -10dB | 3dBi | 10 W | - | RP-SMA Male | - | - | - | Adhesive, Magnetic | 5.591" (142.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
DSGP.1575.18.4.C.02GPS SMT PATCH ANTENNA |
1,818 |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ASGP.1575.10B.4.A.01RF ANT 1.575GHZ CER PATCH SLD |
4,818 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.232" (5.90mm) | GPS |
|
|
ASGPR.10D.2.A.25RF ANT 1.575GHZ CER PATCH SLD |
1,640 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
|
ASGPR.25B.4.A.27RF ANT 1.575GHZ CER PATCH SLD |
4,743 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 30dB | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.260" (6.60mm) | GPS |
|
|
SGP.1575.18.2.A.02RF ANT |
1,798 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GPS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
