RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

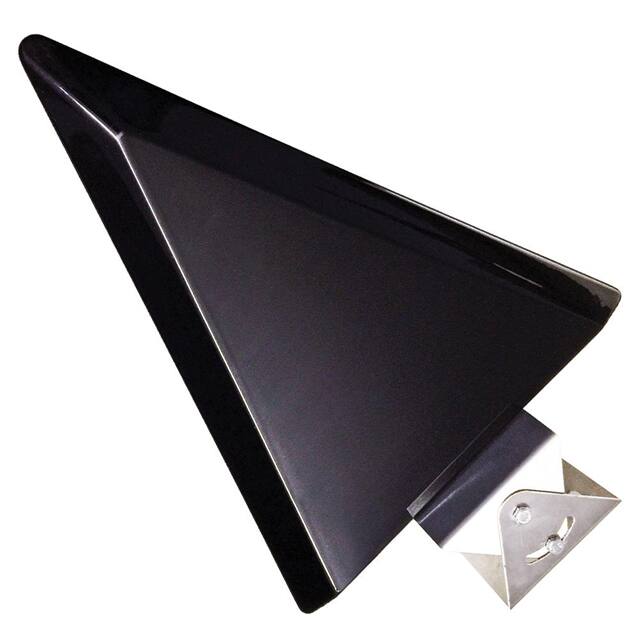

LPDA.02.032111ENGAGER LPDA.02 EXTERNAL WIDE BA |
4,124 |
|
Datasheet | - | Box | Obsolete | Cellular, General ISM, WiFi | Wide Band | 829MHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Module | 6 | 2, 3 | - | 7dBi, 6dBi, 6dBi, 5.5dBi, 5dBi, 5dBi | 10 W | Cable - 300mm | SMA Male | - | - | - | Bracket Mount | 1.260" (32.00mm) | DCS, GSM, HSPA, LTE, PCS, UMTS, Wi-Fi |
|
MA700.A.ABC.002RF ANT 750MHZ/892MHZ DOME RP-SMA |
2,124 |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.588GHz, 1.9GHz, 2.4GHz, 5.5GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Dome | 6 | 2, 1.7 | - | 2.4dBi, 1.7dBi, 32dBi, 2.4dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | RP-SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
MA750.B.ABICG.003RF ANT DOME SMA MALE PAN MT 3M |
3,778 |
|
Datasheet | Pantheon | Box | Active | Cellular, WiFi | Wide Band | - | - | Dome | 4 | 2 | - | 32dBi | - | LNA | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GPS, WLAN |
|
MA705.A.ABC.001PANTHEON MA705 3-IN-1 PERMANENT |
1,666 |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 750MHz, 860MHz, 1.048GHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.45GHz, 4.85GHz, 5.2GHz, 5.65GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.7GHz ~ 5.9GHz | Dome | 12 | 1.7, 2 | - | 2.1dBi, 2.5dBi, 3.1dBi, 4dBi, 2.3dBi, 1.6dBi, 2.3dBi, 1.8dBi, 3.9dBi, 5.9dBi, 5.4dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | Beidou, Galileo, GLONASS, LTE, Wi-Fi |
|
MA931.A.LBICGH.001RF ANT 829MHZ/1.575GHZ MOD ADH |
1,555 |
|
Datasheet | Guardian | Box | Not For New Designs | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz | Module | 7 | 3 | -10dB | 28dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Beidou, GLONASS, GPS, GNSS, GSM, LTE, UMTS, Wi-Fi |
|
MA1060.A.LBCT.0014IN1 SCREW 0.3M RG-316:GNSS SMA( |
4,224 |
|
Datasheet | - | Tray | Last Time Buy | Cellular, Navigation, WiFi | Wide Band | 1.07MHz, 98MHz, 761MHz, 859MHz, 920MHz, 1.584GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 5.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.4GHz ~ 5.8GHz | Module | 15 | - | - | -3.11dBi, -3.16dBi, -4.69dBi, 1.45dBi, 1.92dBi, 2.88dBi, 3.1dBi, 3.32dBi, 3.52dBi, 4.36dBi, 5.62dBi, 7.22dBi | - | Cable - 300mm | SMA Male | - | - | - | - | 2.835" (72.00mm) | 2G, 3G, 4G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
|
LPDA.05.032111ENGAGER LPDA.05 8DBI 600-6000MHZ |
1,406 |
|
Datasheet | - | Bulk | Obsolete | - | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.925GHz | Directional Antenna | 8 | - | - | 7.5dBi, 7.4dBi, 7.4dBi, 8.3dBi, 8.3dBi, 8dBi, 7.9dBi, 6.1dBi | 10 W | Cable - 300mm | SMA Male | IP65 | - | - | Bracket Mount | 3.740" (95.00mm) | - |
|
MA650.A.AB.002RF ANT 892MHZ/1.575GHZ DOME SMA |
1,529 |
|
Datasheet | Spartan | Box | Not For New Designs | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.9GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz | Dome | 3 | 2, 3 | - | 4dBic, -0.5dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.969" (50.00mm) | CDMA, GPS, GSM, UMTS |
|
MA1130.A.LBICGT.0026IN1 RAPTOR II 0.3M RG-174:GNSS |
3,837 |
|
Datasheet | - | Tray | Last Time Buy | Cellular, Navigation, WiFi | Wide Band | 761MHz, 859MHz, 920MHz, 1.584GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.595GHz, 5.5GHz, 5.887GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.4GHz ~ 5.8GHz | Module | 14 | 2 | - | -0.23dBi, -1dBi, -1.5dBi, -2.5dBi, 0.64dBi, 1.61dBi, 2.92dBi, 3.43dBi, 3.4dBi, 3.54dBi, 4dBi, 5.69dBi, 6.6dBi | - | Cable - 300mm | SMA Male | - | - | - | - | 2.787" (70.80mm) | 2G, 3G, 4G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
|
DCN.01.035111DISCONE EXTERNAL MOUNT WIDEBAND |
3,034 |
|
Datasheet | Discone One | Bulk | Active | Cellular | Wide Band | 440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1.2dBi, 1.8dBi, 4.7dBi, 4.9dBi, 5dBi, 6.6dBi, 4.7dBi, 4.8dBi, 6.5dBi | 20 W | Cable - 300mm | SMA Male | IP67 | - | - | Pole, Wall Mount | 7.992" (203.00mm) | 4G/5G |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
