RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA.PANEL.20RF ANT 5.4GHZ PANEL N FEM BRKT |
2,908 |
|
Datasheet | - | Box | Obsolete | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Panel | 1 | - | -14dB | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 2.756" (70.00mm) | Wi-Fi |
|
FXP14.11.0100BRF ANT 850/900MHZ FLAT PATCH GSC |
1,050 |
|
Datasheet | - | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | GSC | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
AA.161.301111RF ANT 1.6GHZ MOD SMA ML MAG 3M |
2,814 |
|
Datasheet | Dominator™ | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Module | 1 | 2 | -15.8, -6.2dB | 29dBic, 30dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.843" (21.40mm) | GLONASS, GPS |
|

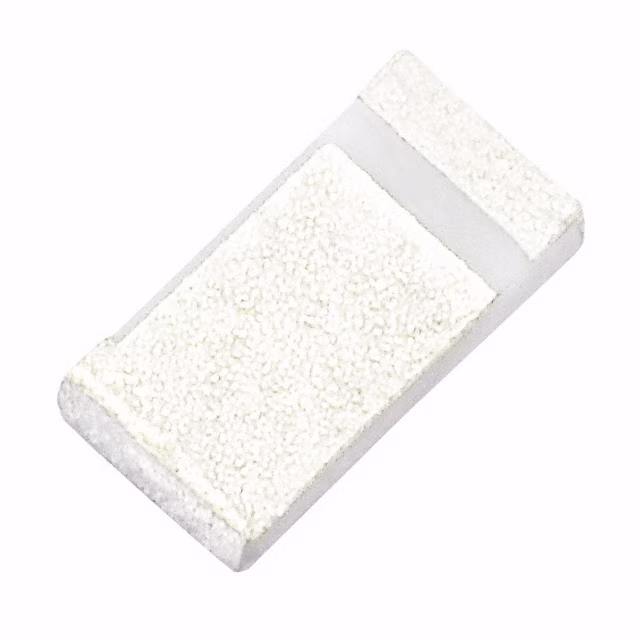

HLA.01RF ANT 5.5GHZ CHIP SOLDER SMD |
2,245 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -11dB | 2.1dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|
|
AA.108.301F21RF ANT 1.575GHZ MOD GT5 FML ADH |
4,274 |
|
Datasheet | Titan | Bag | Discontinued at Digi-Key | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | GT5 Female | IP67 | - | - | Adhesive | 0.598" (15.20mm) | GPS |
|
MA301.A.AB.010RF ANT 1.4GHZ MODULE FAKRA ADH |
4,812 |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMB, Fakra | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
|
GSA.8825.A.051M11RF ANT 892MHZ/1.9GHZ WHIP 0.5M |
3,332 |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 2 | - | 2dBi | - | - | CRC9 | - | - | - | Clip | 5.512" (140.00mm) | GSM, UMTS |
|
MA105.C.LB.001RF ANT 892MHZ/1.9GHZ DOME SMA ML |
2,273 |
|
Datasheet | Hercules | Bag | Discontinued at Digi-Key | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 3.3dB, 4dB | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, GPS, GSM, UMTS |
|
MA209.A.LB.001RF ANT 700/892MHZ FLAT BAR SMA |
4,371 |
|
Datasheet | Stream Two | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 700MHz, 892MHz, 2GHz | 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz | Flat Bar | 3 | 1.24, 1.27 | -10dB | 1.98dBi, 3.25dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.157" (4.00mm) | CDMA, GPS, GSM, LTE, UMTS |
|
TL.01.1F11RF ANT 749MHZ/892MHZ DOME N MALE |
2,038 |
|
Datasheet | Shockwave | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 749MHz, 892MHz, 1.5GHz, 1.9GHz, 2.6GHz | 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 5 | - | - | 2.6dBi, 2.5dBi, 1.2dBi, 3.2dBi, 2.8dBi | - | - | N Type Male | IP69K | - | - | Panel Mount | 3.446" (87.54mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
