RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC24.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
3,250 |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | 2 | -12dB, -25dB, -12dB, -10dB | 0dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.031" (0.80mm) | AMPS, DCS, GSM, PCS |
|

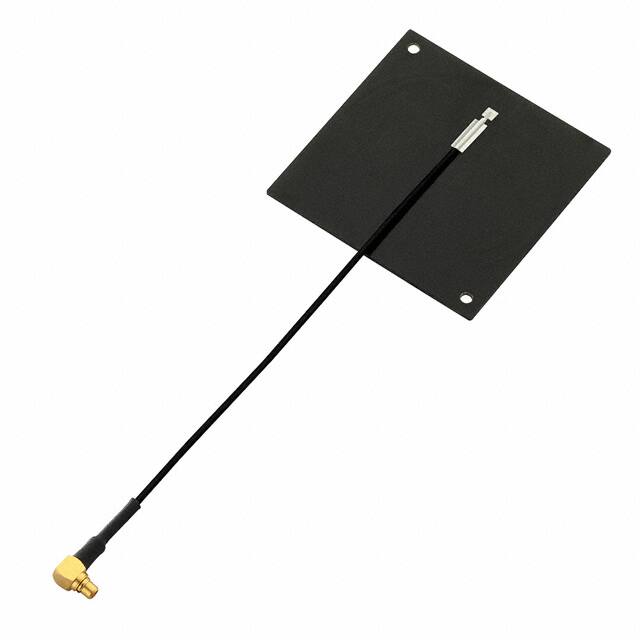

PC24.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,501 |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXP100.07.0100ARF ANT 2.3GHZ/2.5GHZ FLAT PATCH |
1,752 |
|
Datasheet | - | Bag | Obsolete | WiFi | Wide Band | 2.3GHz, 2.5GHz, 3.5GHz | 2.1GHz ~ 4.32GHz | Flat Patch | 1 | 2 | - | 3.2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WiMax™ |
|
FXP400.07.0100ARF ANT 815MHZ/2.4GHZ FLAT PATCH |
4,260 |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 815MHz, 2.4GHz | 690MHz ~ 940MHz, 1.72GHz ~ 3.13GHz | Flat Patch | 2 | 2 | -6dB | 4dBi | 10 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
WS.01.B.305151RF ANT 3.8GHZ DOME RP-SMA MALE |
3,045 |
|
Datasheet | Hercules | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 3.8GHz | 2.4GHz ~ 5.2GHz | Dome | 1 | 1.6 | -15dB | - | - | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.15RF ANT 2.4GHZ CHIP SOLDER SMD |
1,445 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -21dB | -3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, 802.11a/b/g |
|
FXP240.07.0100ARF ANT 434MHZ FLAT PATCH MHFII |
1,090 |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP245.07.0100ARF ANT 450MHZ FLAT PATCH CAB ADH |
4,114 |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 457MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
FXP270.07.0100ARF ANT 783MHZ FLAT PATCH MHFII |
4,301 |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Flat Patch | 1 | 2 | -20dB | 1.4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
MA301.A.AB.001RF ANT 1.4GHZ MODULE SMA ML ADH |
4,162 |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMA Male | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
