RF Antennas
Review RF Antennas RF and Wireless components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISA.06.A.301111RF ANT 440MHZ FLAT BAR SMA MALE |
3,885 |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Bar | 1 | - | -15dB | 2dBi | - | - | SMA Male | IP67 | - | - | Adhesive | 0.433" (11.00mm) | CDMA |
|
WSA.5800.A.101151RF ANT 5.8GHZ FLAT BAR RP-SMA ML |
4,506 |
|
Datasheet | Phoenix | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.8GHz | 4.9GHz ~ 5.85GHz | Flat Bar | 1 | 2 | -10dB | 4.1dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | Wi-Fi, WLAN |
|
MA203.A.AB.045RF ANT 1.575GHZ MOD SMA MALE ADH |
2,926 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | -15dB | 4dBic | - | LNA | SMA Male | IP67 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|

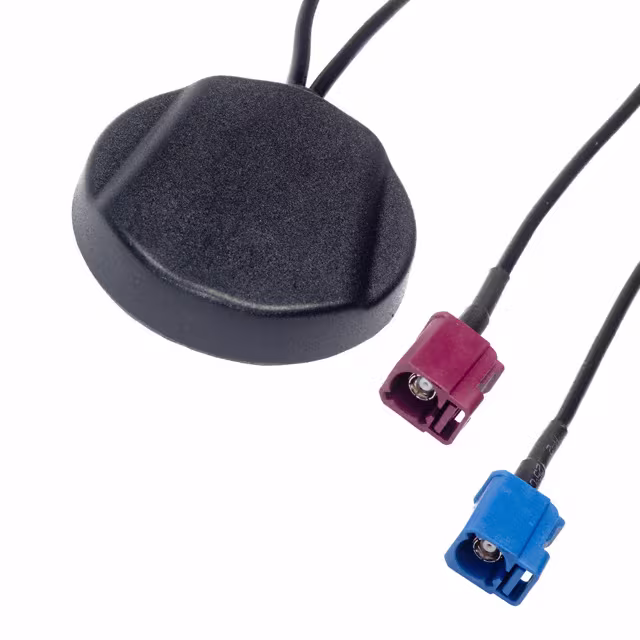

MA.203W.AB.009RF ANT 860MHZ/920MHZ MOD FAKRA |
3,836 |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 860MHz, 920MHz, 1.8GHz, 1.9GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz | Module | 4 | 1.92 | - | -3dB | - | LNA | SMB, Fakra | IP67 | - | - | Adhesive | 0.630" (16.00mm) | CDMA, GPS, GSM, UMTS |
|
TLS.30.1F11RF ANT 433MHZ WHIP STR N MALE |
3,800 |
|
Datasheet | Shockwave | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -15dB | -1.19dBi | 100 W | - | N Type Male | IP67, IP69K | - | - | Base Mount | 3.128" (79.45mm) | ISM |
|
TLS.20.1F11RF ANT 460MHZ WHIP STR N MALE |
3,330 |
|
Datasheet | Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -2.2dBi | 100 W | - | N Type Male | IP69K | - | - | Base Mount | 3.134" (79.60mm) | CDMA |
|
TLS.30.1F21RF ANT 433MHZ WHIP STR N FEM PAN |
1,636 |
|
Datasheet | Shockwave | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -15dB | -1.16dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | ISM |
|
TLS.20.1F21RF ANT 450MHZ WHIP STR N FEM PAN |
1,859 |
|
Datasheet | Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -1.8dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|
MA2220.A.TT.0022IN1 ADHESIVE MOUNT 300MM RG-174 |
1,687 |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 1.07MHz, 98MHz, 207MHz | 535kHz ~ 1.605MHz , 88MHz ~ 108MHz , 174MHz ~ 240MHz | Module | 3 | - | - | - | - | Cable - 300mm | SMB, Fakra | IP41 | - | - | Adhesive | 0.283" (7.20mm) | General Purpose |
|
G21.B.W.301111RF ANT 850MHZ/900MHZ DOME PNL MT |
4,876 |
|
Datasheet | Hercules | Bag | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 5 | 3.5 | -11dB, -12.4dB, -17.5dB, -18.3dB, -18.1dB | 1dBi, 1dBi, -0.9dBi, -1.1dBi, -1.1dBi | 10 W | Cable - 3m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA |
Frequently Asked Questions
What are RF Antennas components used for?
RF Antennas components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right RF Antennas part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find RF Antennas parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
