Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM2146NLTXFMR SGL 1CT:1CT 150UH 3KV |
900 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
PA1130NLTXFRMR 3.3V 3W 500UH POE EP7 SMD |
340 |
|
Datasheet | EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.083:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

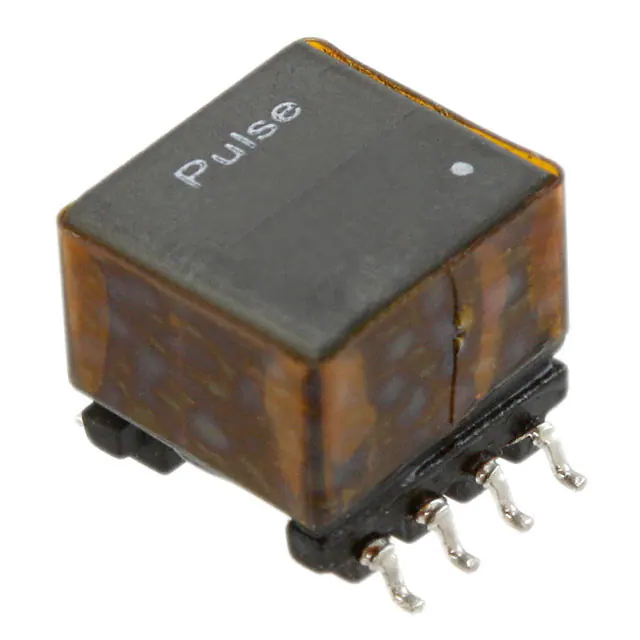

PA1283NLTXFRMR 5V 7W 155UH POE EP10 SMD |
925 |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.273:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1282NLTXFRMR 3.3V 7W 155UH POE EP10 SMD |
1,814 |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.182:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PA1137NLXFMR FLYBACK EP13 SMT |
340 |
|
Datasheet | PA1137NL | Tray | Active | Power over Ethernet (PoE) | 126µH | - | 1:0.125:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PH9185.083NLTTRANSFORMER 560UH 8:3 SMD |
944 |
|
Datasheet | PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
ST7010QNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
822 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 18µH, 60µH, 80µH, 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

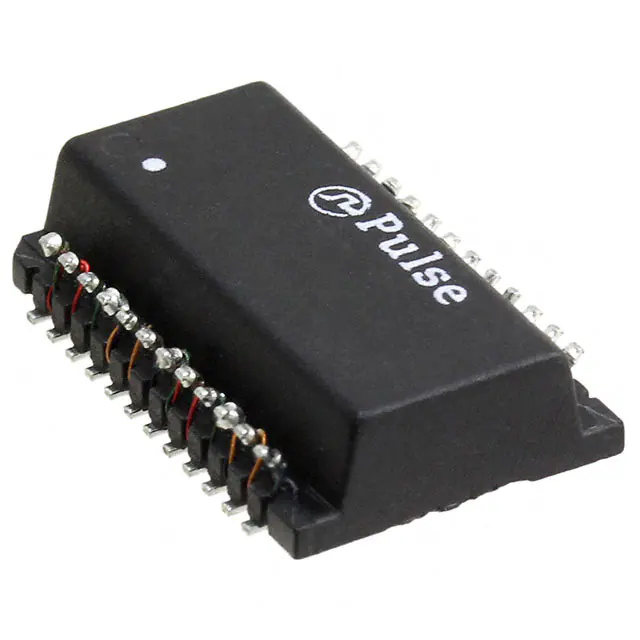

H5084FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,814 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HM1225NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
270 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 200µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 95°C | - | - |
|
|
HM2171HLTDUAL XFMR CMC 150UH 1:1 4.3KV |
950 |
|
Datasheet | - | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
