Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

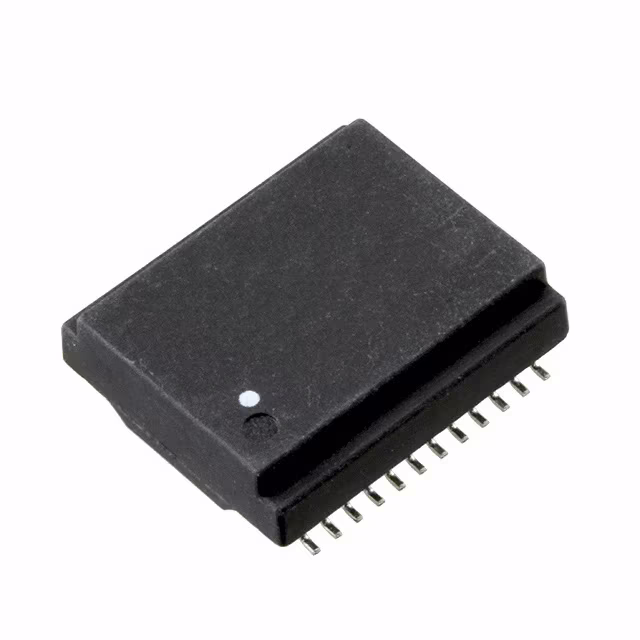

H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
736 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

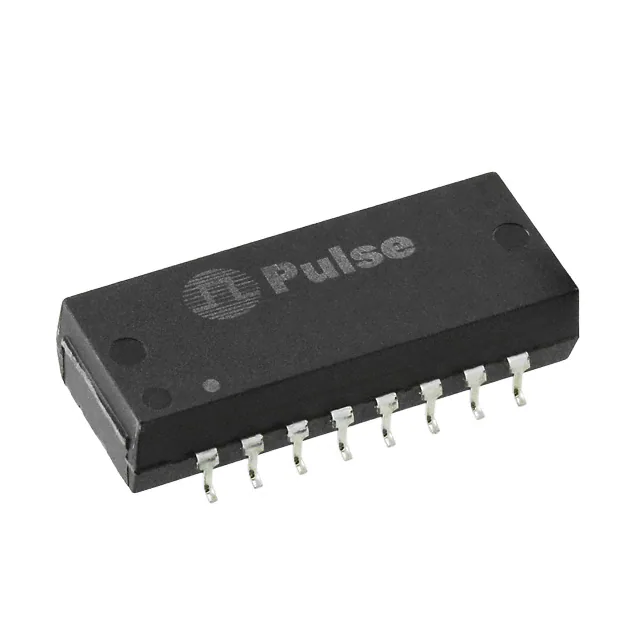

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 |
803 |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

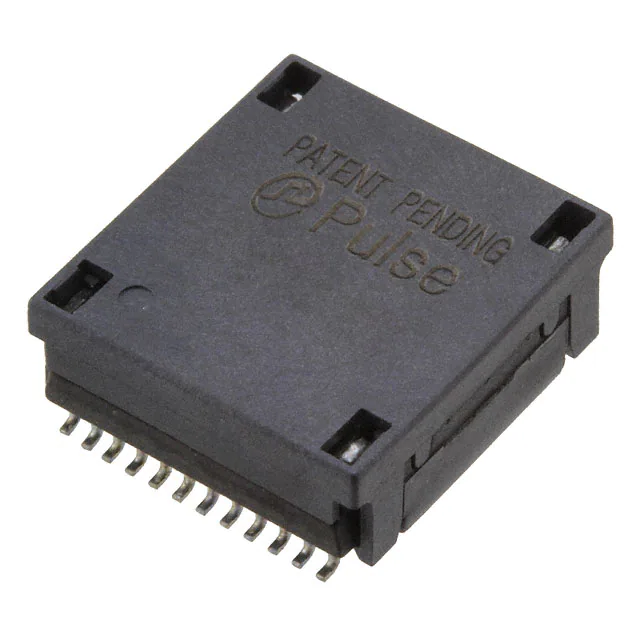

H7019FNLTRANSFORMER MODULE 10GBASE-T SMD |
151 |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
HX1112QNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
412 |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
T7015NLXFRMR 64KBPS 1:2CT/1:2CT 20MH |
275 |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
B8845NLPULSE XFMR ADSL/VDSL2 4B3T |
293 |
|
Datasheet | SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.531" L x 0.839" W (13.50mm x 21.30mm) | 0.453" (11.50mm) | - | - | - |
|

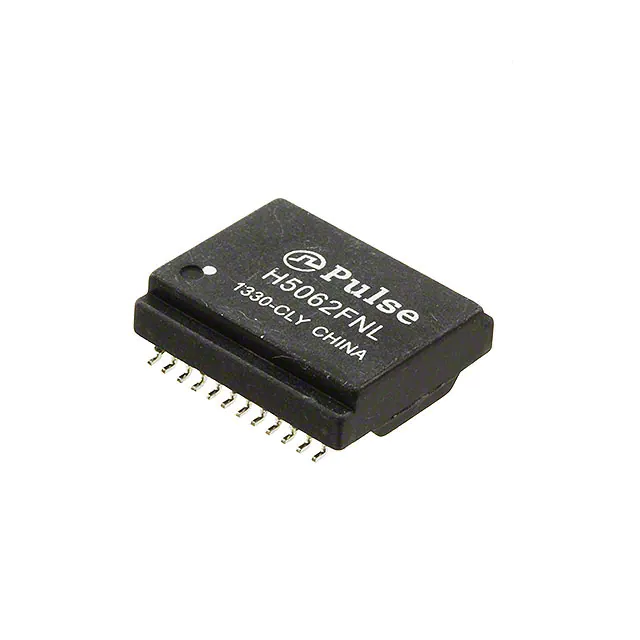

H5062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
400 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
TX1344NLTXFRMR OCTAL 1:1/1:2 1.2MH SMD |
586 |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1472NLXFRMR OCTAL 1:2.4/1:1 1.2MH SMD |
363 |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX1294NLTMODULE XFRMR LAN 10/100 SMD |
2,348 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
