Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

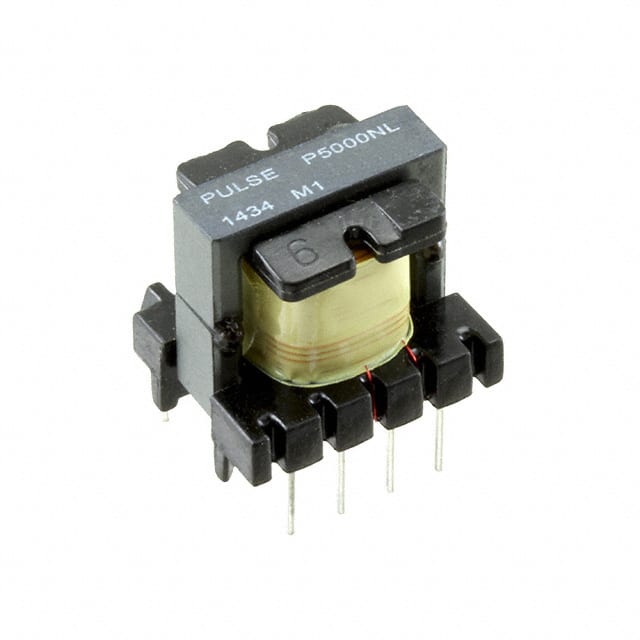

P5000NLPULSE XFMR 1:0.07:0.07 |
102 |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9384.083NLTXFMR GATE-DR 8CT:3CT SM NPB |
154 |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2185.034NLTXFMR GATE-DR 3T:4CT SMT NPB |
270 |
|
Datasheet | PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:4CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|

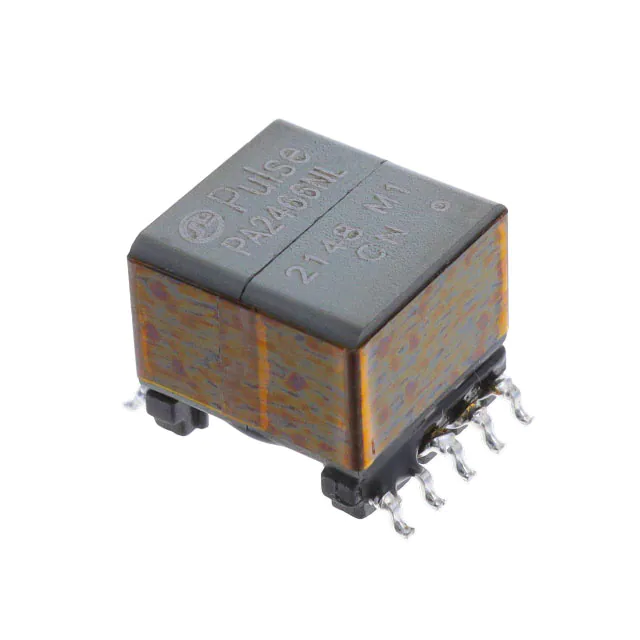

PA2466NLPULSE XFMR 37UH |
2,205 |
|
Datasheet | - | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PH9384.035NLTXFMR GATE-DR 3CT:5CT SM NPB |
264 |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PH9572.122NLTGDT, FUNCTIONAL, EP7, SMT |
1,295 |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PM2155.045NLTXFMR PUSH-PULL SIDE CAR S NPB |
886 |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 4CT:5CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
TX1188NLXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
1,360 |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-68678NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
1,252 |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-65861NLTRANSFORMER TELECOM DUAL T1/E2 |
1,218 |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
