Pulse Transformers
Review Pulse Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX7137NLMDL SIN 10GD 1:1 SM CMS 18 |
126 |
|
Datasheet | HX7137NL | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

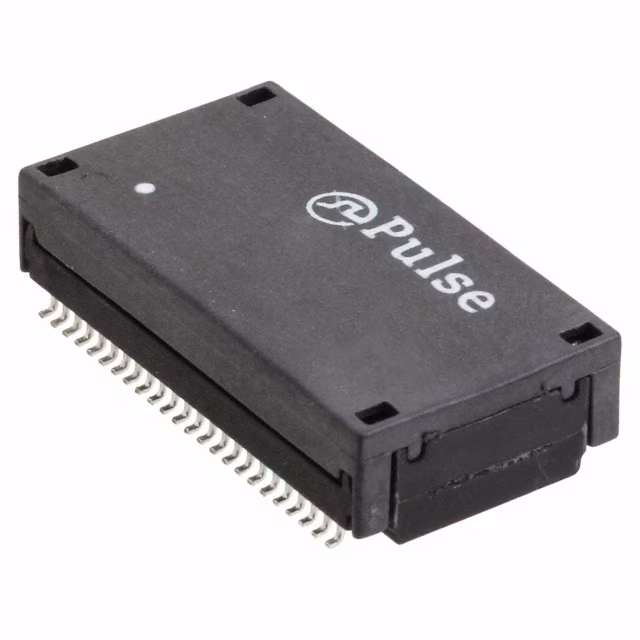

H5014FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
316 |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

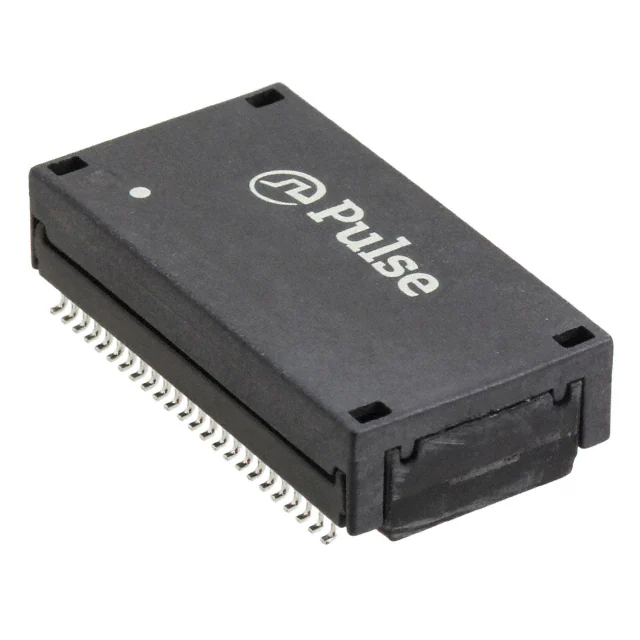

H5014FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
269 |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
H5401NLMODULE XFORMR QUAD GIGABIT SMD |
220 |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | 0°C ~ 70°C | - | - |
|

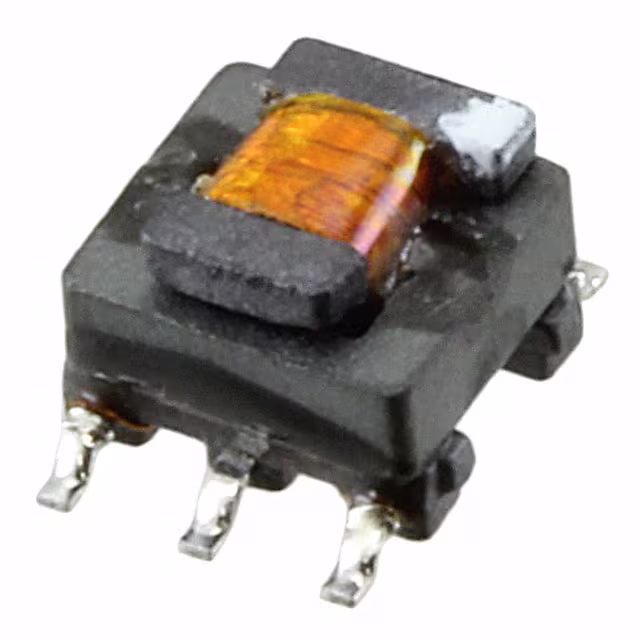

PA1323NLPULSE XFMR 1:1 600UH |
1,340 |
|
Datasheet | - | Tray | Active | - | 600µH | 21.7VµS | 1:1 | Surface Mount | 0.280" L x 0.375" W (7.11mm x 9.52mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|
PA0264NLPULSE XFMR 1:1:1 1.14MH |
1,510 |
|
Datasheet | - | Tube | Active | - | 1.14mH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA2006NLPULSE XFMR 1:1 864UH |
1,670 |
|
Datasheet | - | Tube | Active | - | 864µH | 26VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
.00xNL-Series.jpg "PA3855.001NL")
|
PA3855.001NLPULSE XFMR 54UH |
770 |
|
Datasheet | - | Tray | Active | - | 54µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
|
PA3855.004NLPULSE XFMR 21UH |
770 |
|
Datasheet | - | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
PA2008NLPULSE XFMR 2:1:1 1.43MH |
2,499 |
|
Datasheet | - | Tube | Active | - | 1.43mH | 52VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
