Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

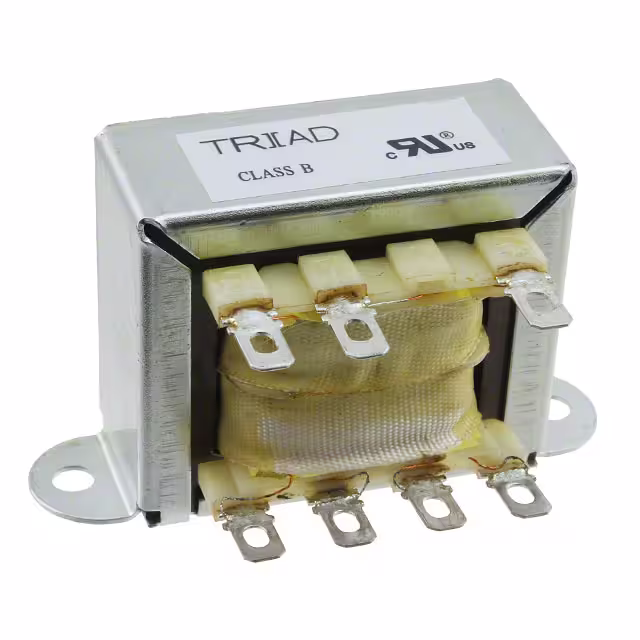

FD5-48PWR XFMR LAMINATED 12VA CHAS MT |
3,795 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 48V | 250mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
FD5-56PWR XFMR LAMINATED 12VA CHAS MT |
4,189 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 56V | 220mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC | 0.7 lb (317.51 g) |
|
F-3115XPWR XFMR LAMINATED 2VA CHAS MT |
1,247 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 24V | 85mA | Dual | Single | Yes | 2VA | Chassis Mount | Wire Leads | 52.37mm L x 34.93mm W | 30.15mm | 1500Vrms | 0.3 lb (136.08 g) |
|
F-365XPPWR XFMR LAMINATED 10VA TH |
3,833 |
|
Datasheet | Dual Primary | Box | Active | Laminated Core | 115V, 230V | Parallel 6.30V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms | 0.688 lb (312.07 g) |
|
FP10-600-BPWR XFMR LAMINATED 6VA TH |
3,362 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP16-375-BPWR XFMR LAMINATED 6VA TH |
3,497 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 750mA, Series 375mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP20-300-BPWR XFMR LAMINATED 6VA TH |
2,398 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP24-250-BPWR XFMR LAMINATED 6VA TH |
4,499 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP30-200-BPWR XFMR LAMINATED 6VA TH |
2,301 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP34-170-BPWR XFMR LAMINATED 6VA TH |
1,009 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
