Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-145XPPWR XFMR LAMINATED 4.5VA TH |
3,899 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 38V, Series 76V | Parallel 120mA, Series 60mA | Single | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
|
F-146XPPWR XFMR LAMINATED 4.5VA TH |
2,351 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 58V, Series 116V | Parallel 66mA, Series 33mA | Single | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
|
F-147XPPWR XFMR LAMINATED 4.5VA TH |
3,060 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 224mA, Series 112mA | Single | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
|
F-161XPPWR XFMR LAMINATED 4.5VA TH |
3,247 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 8.5V, Series 17V | Parallel 528mA, Series 264mA | Single | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
TCT3-11E07AE-BPWR XFMR LAMINATED 2.5VA CHAS MT |
1,164 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 120V | 10V | 250mA | Single | Single | No | 2.5VA | Chassis Mount | Solder, Quick Connect | 60.00mm L x 42.50mm W | 54.10mm | 1500Vrms | 0.5 lb (226.8 g) |
|
FS120-02PWR XFMR LAMINATED 2.5VA TH |
1,139 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.3 lb (136.08 g) |
|
|
FS48-050PWR XFMR LAMINATED 2.5VA TH |
1,202 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 100mA, Series 50mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
FS56-045PWR XFMR LAMINATED 2.5VA TH |
1,592 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
F-3112XPWR XFMR LAMINATED 3.5VA CHAS MT |
2,528 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 14V | 250mA | Dual | Single | Yes | 3.5VA | Chassis Mount | Wire Leads | 60.33mm L x 38.10mm W | 34.93mm | 1500Vrms | 0.3 lb (136.08 g) |
|

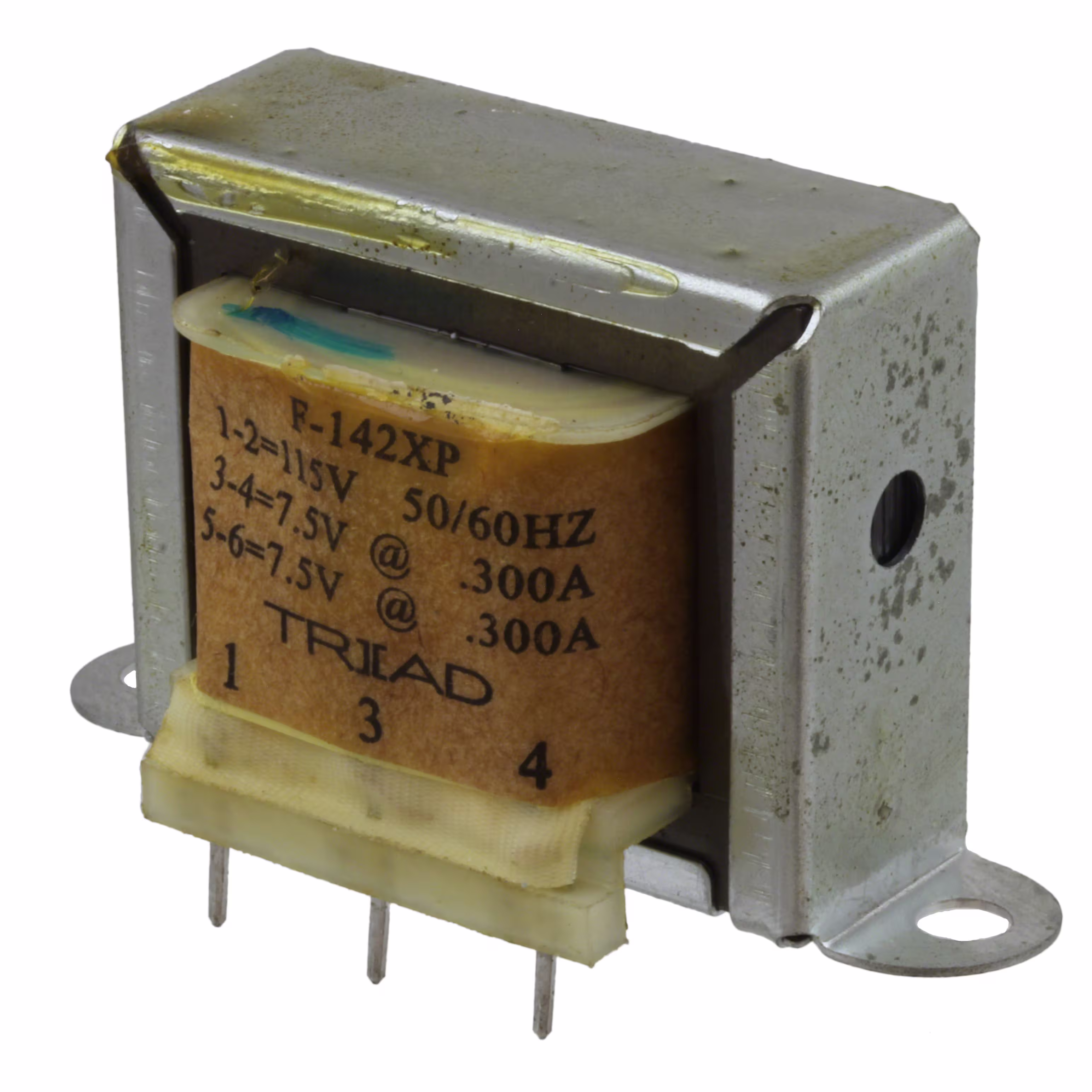

F-142XPPWR XFMR LAMINATED 4.5VA CHAS MT |
4,755 |
|
Datasheet | Single Primary | Box | Active | Laminated Core | 115V | Parallel 7.5V, Series 15V | Parallel 600mA, Series 300mA | Single | Dual | No | 4.5VA | Chassis Mount | Wire Leads | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
