Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-214UPWR XFMR LAMINATED 96VA CHAS MT |
3,742 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 4A, Series 2A | Single | Dual | No | 96VA | Chassis Mount | Solder Lug | 80.95mm L x 71.42mm W | 86.51mm | 1500Vrms | 3.3 lbs (1.5 kg) |
|
F-108UPWR XFMR LAMINATED 96VA CHAS MT |
4,178 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 8A, Series 4A | Dual | Dual | No | 96VA | Chassis Mount | Solder Lug | 71.42mm L x 63.50mm W | 86.51mm | 1500Vrms | 3.5 lbs (1.6 kg) |
|
VPT18-5560PWR XFMR TOROIDAL 100VA CHAS MT |
2,194 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 9V, Series 18V | Parallel 11.12A, Series 5.56A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPS12-14000PWR XFMR LAMINATED 175VA CHAS MT |
1,296 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS36-4800PWR XFMR LAMINATED 175VA CHAS MT |
4,481 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS20-8800PWR XFMR LAMINATED 175VA CHAS MT |
1,033 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
VPM240-210PWR XFMR TOROIDAL 50VA CHAS MT |
4,612 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 420mA, Series 210mA | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|

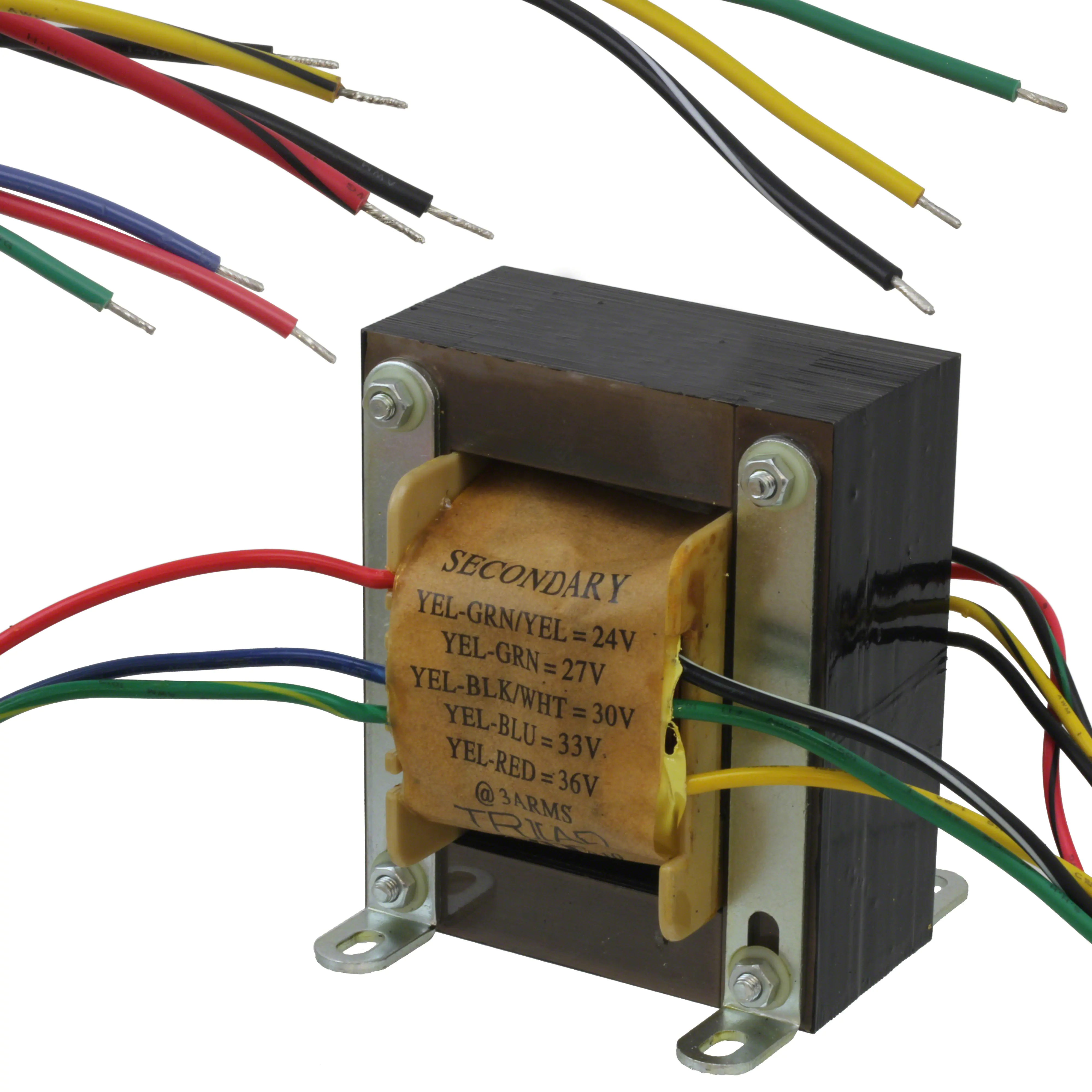

F-361UPWR XFMR LAMINATED 108VA CHAS MT |
4,169 |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V, 230V | 24V, 27V, 30V, 33V, 36V | 3A | Dual | Single, Multiple Taps | No | 108VA | Chassis Mount | Wire Leads | 79.38mm L x 82.55mm W | 95.25mm | 1500Vrms | 5.7 lbs (2.6 kg) |
|

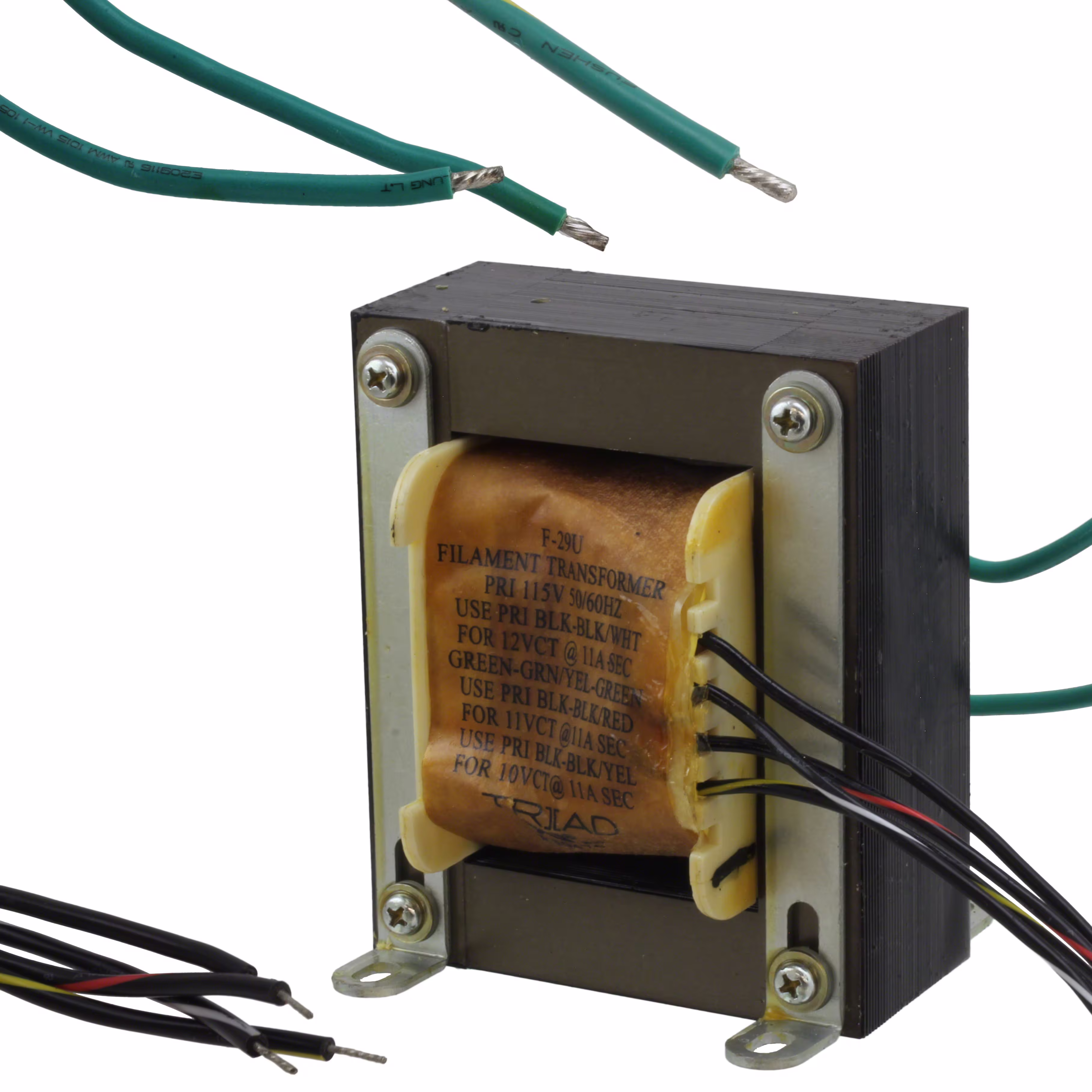

F-29UPWR XFMR LAMINATED 132VA CHAS MT |
3,145 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 10V, 11V, 12V | 11A | Single | Single | Yes | 132VA | Chassis Mount | Wire Leads | 88.90mm L x 85.73mm W | 104.77mm | 3000Vrms | 6.5 lbs (2.9 kg) |
|
|
VPM36-1390PWR XFMR TOROIDAL 50VA CHAS MT |
4,130 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 2.78A, Series 1.39A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.1 lbs (499 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
