Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS20-1800-C2PWR XFMR LAMINATED 36VA TH |
3,690 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|

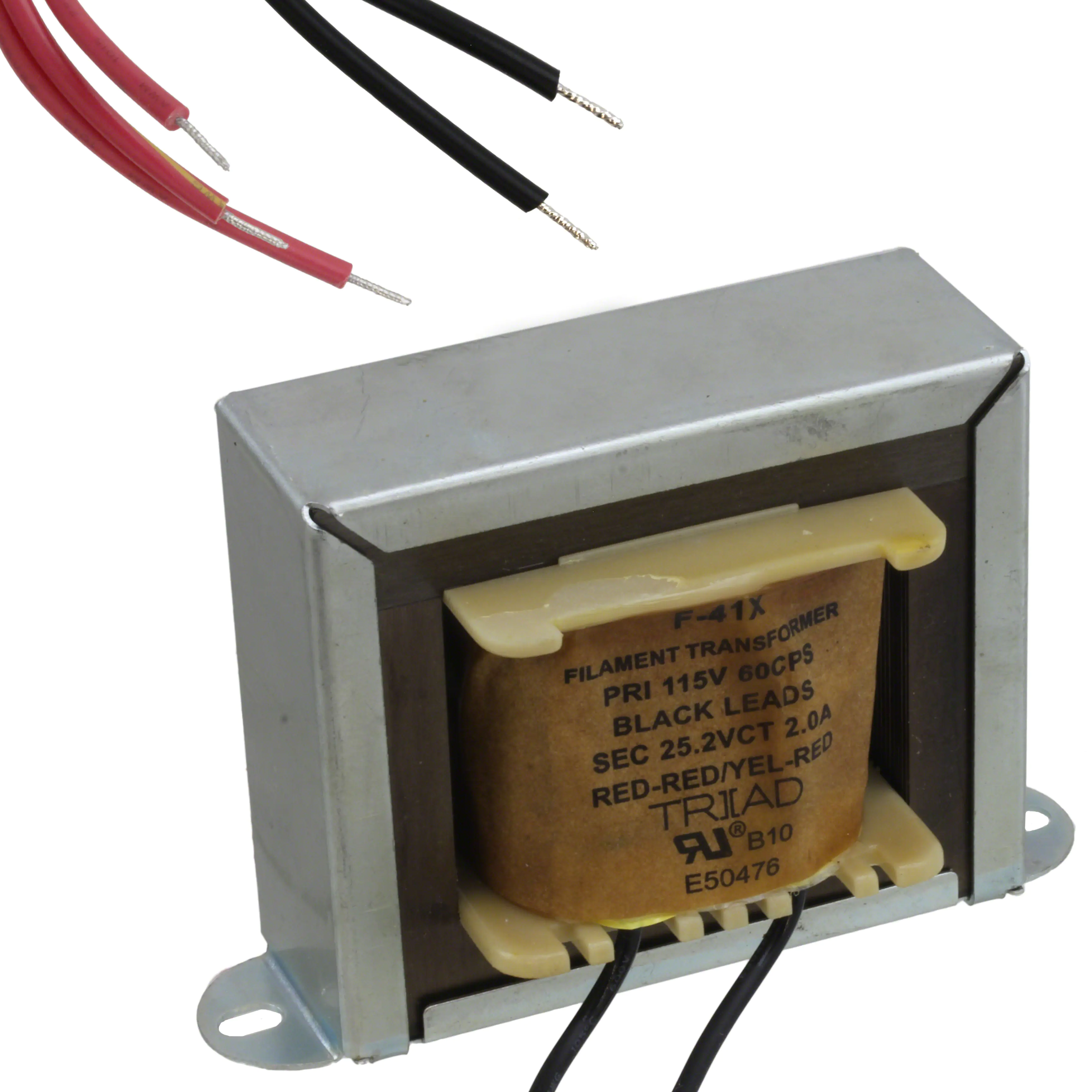

F-41XPWR XFMR LAMINATED 50.4VA CHAS |
2,380 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 25.2V | 2A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.2 lbs (997.9 g) |
|
VPS10-17500PWR XFMR LAMINATED 175VA CHAS MT |
3,544 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
VPM48-1040PWR XFMR TOROIDAL 50VA CHAS MT |
4,212 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 2.08A, Series 1.04A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPM48-2080PWR XFMR TOROIDAL 100VA CHAS MT |
2,490 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms | 2.7 lbs (1.2 kg) |
|
|
VPM100-25000PWR XFMR TOROIDAL 2500VA CHAS MT |
1,572 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 50A, Series 25A | Dual, Multiple Taps | Dual | No | 2500VA | Chassis Mount | Wire Leads | 215.00mm Dia | 120.00mm | 4000Vrms | 44 lbs (20 kg) |
|
F24-800-C2-BPWR XFMR 20VA TH |
3,321 |
|
Datasheet | - | Bulk | Active | - | 115V | 12V | 500mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 58.01mm L x 48.51mm W | 38.51mm | - | - |
|
FS10-110PWR XFMR LAMINATED 1.1VA TH |
4,875 |
|
Datasheet | Split Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
VPP12-1600-BPWR XFMR LAMINATED 20VA TH |
2,153 |
|
Datasheet | PC Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
FP24-100-BPWR XFMR LAMINATED 2.5VA TH |
3,513 |
|
Datasheet | Flat Pack™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms | 0.313 lb (141.97 g) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
