Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

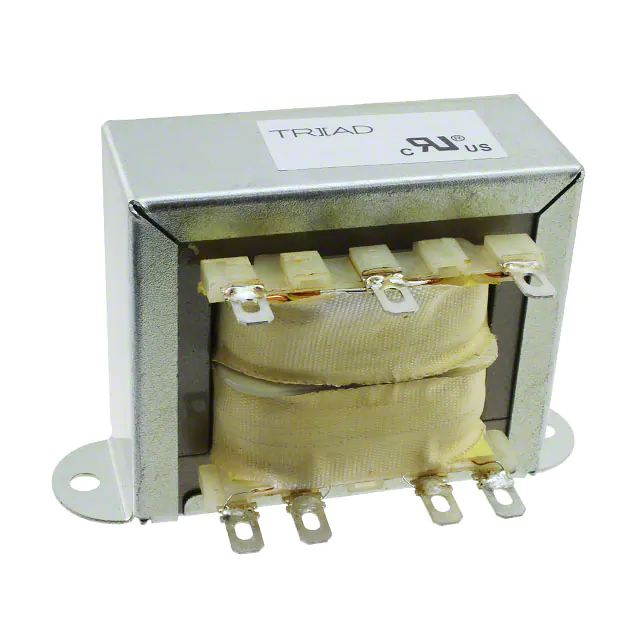

FD7-36PWR XFMR LAMINATED 56VA CHAS MT |
1,931 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 36V | 1.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

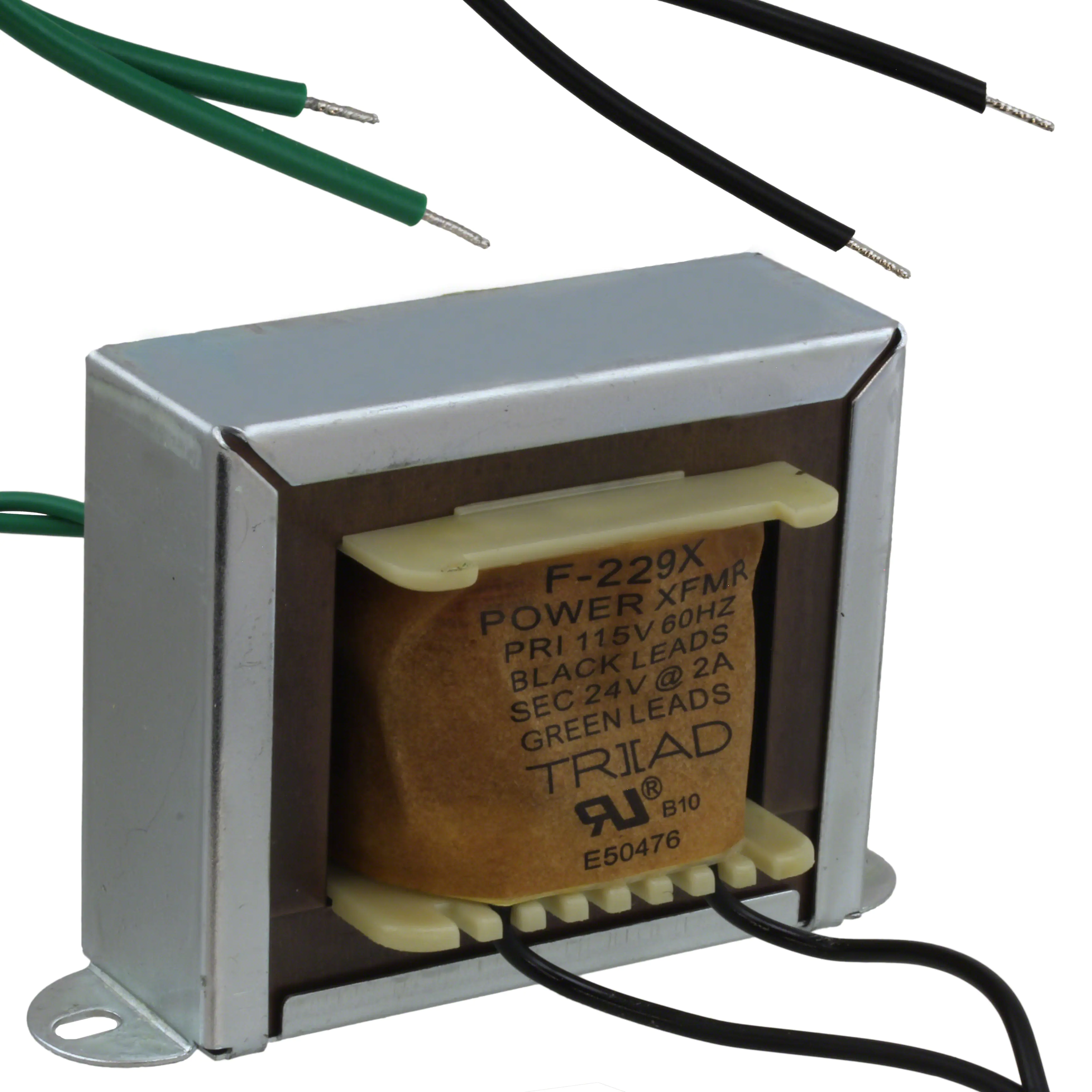

F-229XPWR XFMR LAMINATED 48VA CHAS MT |
4,586 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 2A | Single | Single | No | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 50.80mm W | 65.07mm | 1500Vrms | 2.3 lbs (1 kg) |
|
F-213ZPWR XFMR LAMINATED 48VA CHAS MT |
4,130 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 2A, Series 1A | Single | Dual | No | 48VA | Chassis Mount | Solder Lug | 92.07mm L x 60.32mm W | 79.38mm | 1500Vrms | 2.3 lbs (1 kg) |
|
VPL36-1400PWR XFMR LAMINATED 50.0VA CHAS |
2,977 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 36V | 1.389A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|
VPL20-2500PWR XFMR LAMINATED 50.0VA CHAS |
4,554 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 2.5A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|
F8-36PWR XFMR LAMINATED 100VA CHAS MT |
4,705 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 36V | 2.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
F8-16PWR XFMR LAMINATED 100VA CHAS MT |
1,361 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 16V | 6.25A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|
VPL28-2000PWR XFMR LAMINATED 56.0VA CHAS |
1,868 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Dual | No | 56.0VA | Chassis Mount | Wire Leads | 66.68mm L x 65.09mm W | 77.79mm | 3500Vrms | 2.7 lbs (1.2 kg) |
|

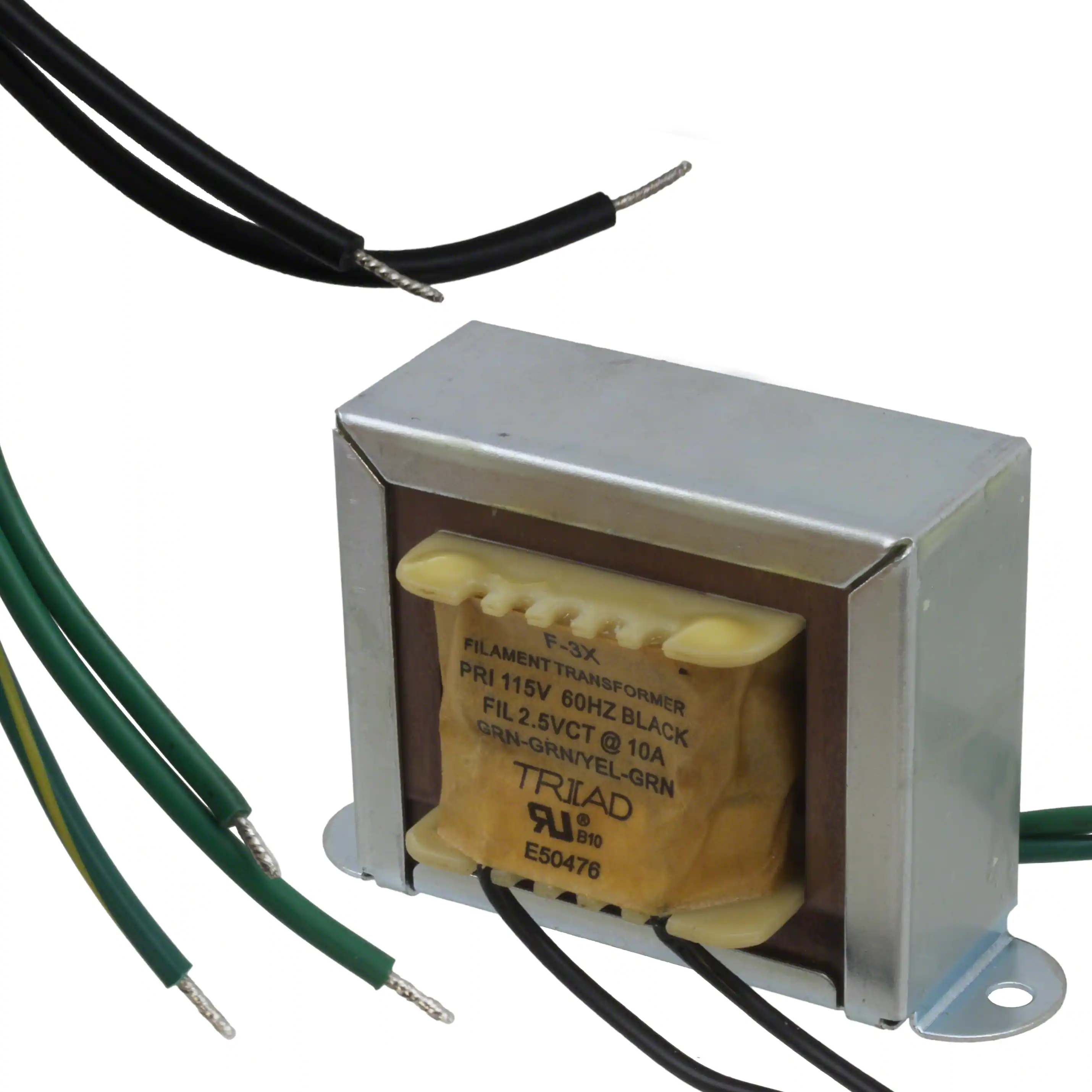

F-3XPWR XFMR LAMINATED 25VA CHAS MT |
2,247 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 2.5V | 10A | Single | Single | Yes | 25VA | Chassis Mount | Wire Leads | 95.25mm L x 53.97mm W | 57.94mm | 3000Vrms | 1.7 lbs (771.1 g) |
|
F-18XPWR XFMR LAMINATED 37.8VA CHAS |
1,686 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 6A | Single | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms | 2.3 lbs (1 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
