Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

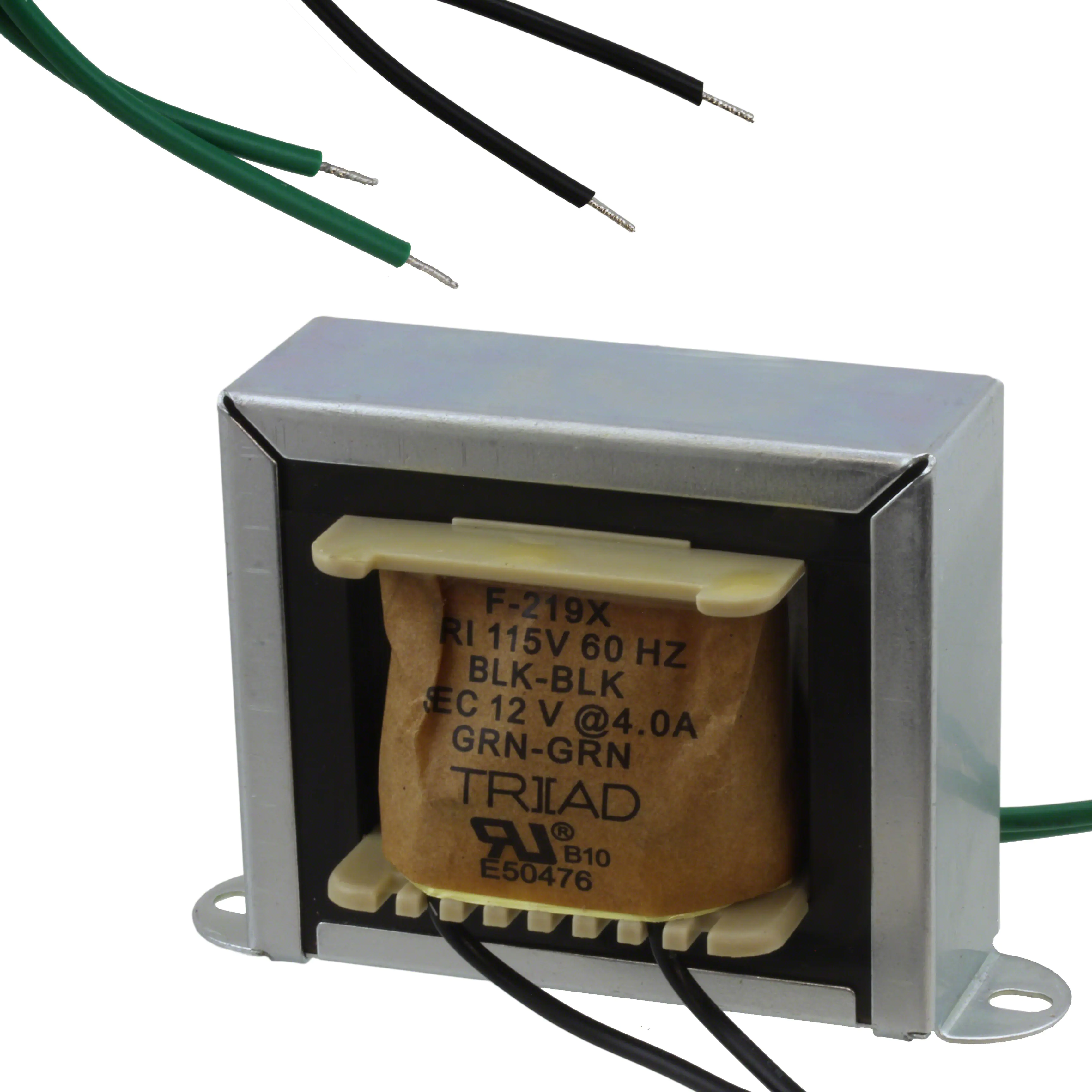

F-219XPWR XFMR LAMINATED 48VA CHAS MT |
4,454 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12V | 4A | Single | Single | No | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.07mm | 1500Vrms | 2.3 lbs (1 kg) |
|
F-56XPWR XFMR LAMINATED 71VA CHAS MT |
2,105 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 25.2V | 2.8A | Single | Single | Yes | 71VA | Chassis Mount | Wire Leads | 101.60mm L x 63.50mm W | 65.15mm | 1500Vrms | 2.5 lbs (1.1 kg) |
|

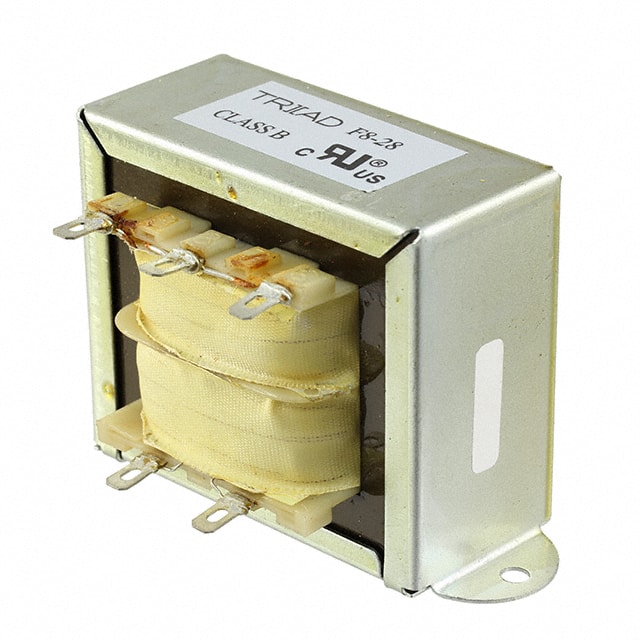

F8-28PWR XFMR LAMINATED 100VA CHAS MT |
2,740 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 28V | 3.6A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

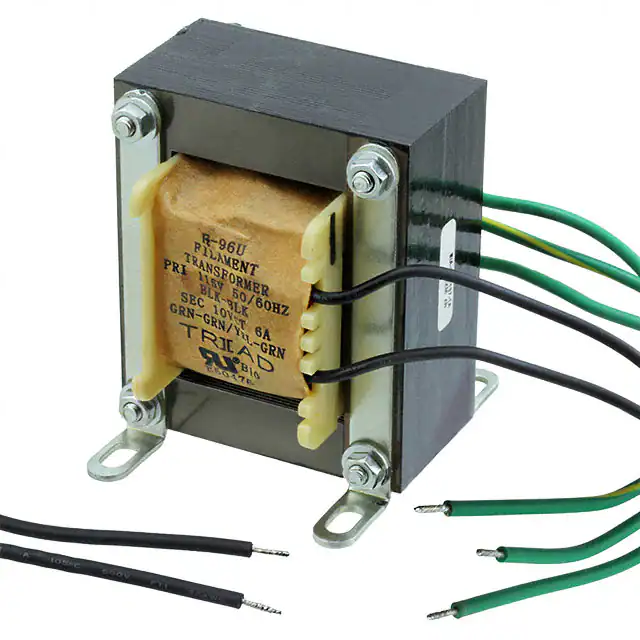

F-96UPWR XFMR LAMINATED 60VA CHAS MT |
3,060 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 10V | 6A | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 76.20mm | 1500Vrms | 2.1 lbs (952.5 g) |
|
VPS20-4000PWR XFMR LAMINATED 80VA CHAS MT |
4,254 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 8A, Series 4A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 74.68mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS230-350PWR XFMR LAMINATED 80VA CHAS MT |
2,628 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS16-5000PWR XFMR LAMINATED 80VA CHAS MT |
3,148 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS28-2800PWR XFMR LAMINATED 80VA CHAS MT |
2,132 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|
|
VPS12-6300PWR XFMR LAMINATED 80VA CHAS MT |
1,430 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

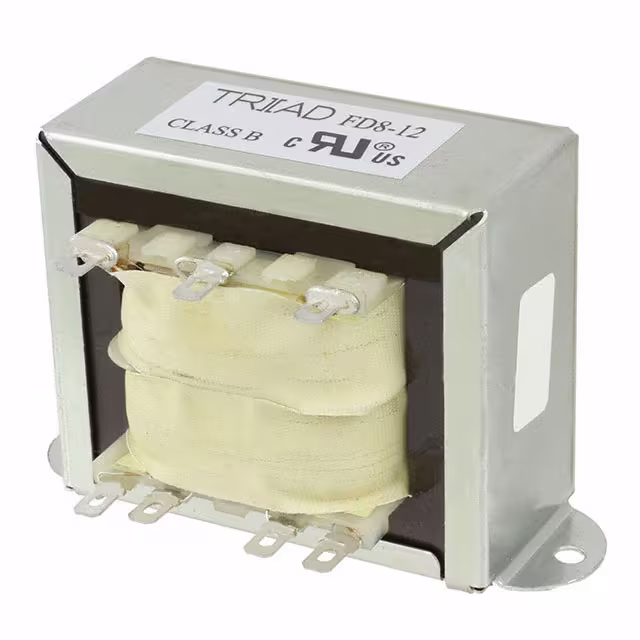

FD8-12PWR XFMR LAMINATED 100VA CHAS MT |
1,094 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 12.6V | 8A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
