Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
272BXPWR XFMR LAMINATED 95VA CHAS MT |
1,203 |
|
Datasheet | 272 | Bulk | Active | Laminated Core | 115V | 600V, 6.3V, 5V | 115mA, 3A, 2A | Single | Triple | Yes | 95VA | Chassis Mount | Wire Leads | 63.50mm L x 82.55mm W | 77.72mm | 2000Vrms | 3.5 lbs (1.6 kg) |
|

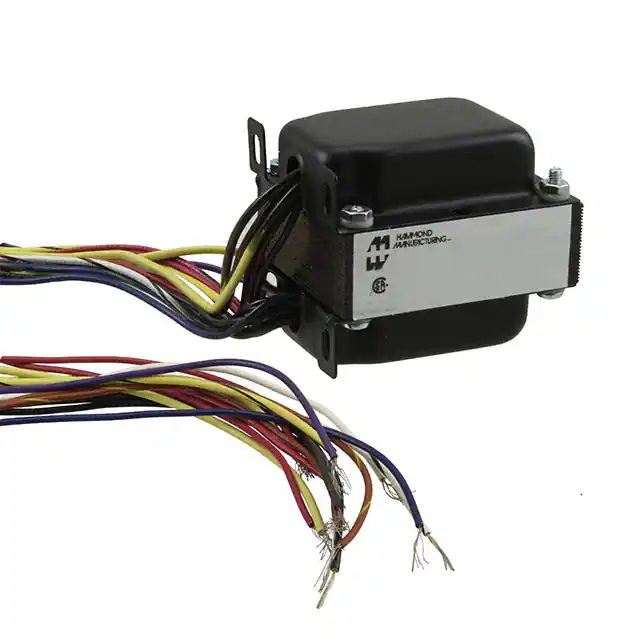

363AXPWR XFMR LAMINATED 32VA CHAS MT |
3,503 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 200V, 5V | 115mA, 2A | Dual, Multiple Taps | Dual | Yes | 32VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms | 40 lbs (18.1 kg) |
|
369GXPWR XFMR LAMINATED 50VA CHAS MT |
4,909 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 450V, 6.3V | 75mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 50VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
|
263CXPWR XFMR LAMINATED 116VA CHAS MT |
1,037 |
|
Datasheet | 263 | Bulk | Active | Laminated Core | 115V | 360V, 5V | 287mA, 3A | Single | Triple | Yes | 116VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 4.4 lbs (2 kg) |
|
|
369BXPWR XFMR LAMINATED 39VA CHAS MT |
1,280 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 300V, 6.3V | 86mA, 2A | Dual, Multiple Taps | Dual | Yes | 39VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
|
265X5PWR XFMR LAMINATED CHAS MT |
1,456 |
|
Datasheet | 265 | Bulk | Active | Laminated Core | 117V | 5V | 30A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | - | 79.38mm | - | - |
|
165T22PWR XFMR LAMINATED 264VA CHAS MT |
3,273 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 22V | 12A | Single | Single | Yes | 264VA | Chassis Mount | Wire Leads | 114.30mm L x 88.90mm W | 95.25mm | 2000Vrms | 8.2 lbs (3.7 kg) |
|
266P24PWR XFMR LAMINATED 120VA CHAS MT |
3,526 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 10A, Series 5A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 79.50mm L x 72.64mm W | 96.77mm | 2000Vrms | 5.2 lbs (2.4 kg) |
|
1182S15PWR XFMR TOROIDAL 300VA CHAS MT |
3,171 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 15V, Series 30V | Parallel 20A, Series 10A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
|
1182K240PWR XFMR TOROIDAL 300VA CHAS MT |
2,809 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | 240V | 1.25A | Dual | Single | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
