Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182L60PWR XFMR TOROIDAL 300VA CHAS MT |
2,487 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 60V, Series 120V | Parallel 5A, Series 2.5A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|

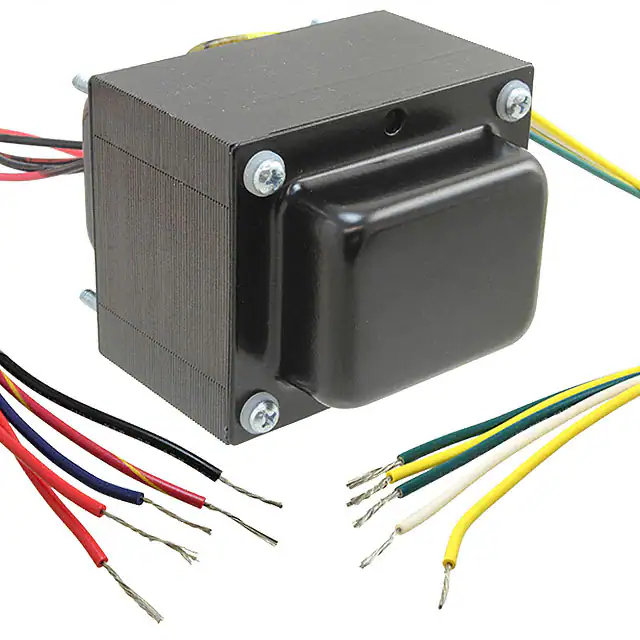

290BXPWR XFMR LAMINATED CHAS MT |
2,471 |
|
Datasheet | 290 | Box | Active | Laminated Core | 120V | 660V, 6V, 5V | 138mA, 3A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 71.45mm L x 103.20mm W | 87.33mm | - | 5.4 lbs (2.4 kg) |
|
228HPWR XFMR SEMI-TORO 10VA TH |
1,923 |
|
Datasheet | 228 | Bulk | Active | Semi-Toroidal | 115V | Parallel 20V, Series 40V | Parallel 500mA, Series 250mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 69.85mm L x 56.64mm W | 30.99mm | - | 0.91 lb (412.77 g) |
|
|
227RPWR XFMR SEMI-TORO 40VA TH |
1,155 |
|
Datasheet | 227 | Bulk | Active | Semi-Toroidal | 115V | Parallel 15V, Series 30V | Parallel 2.66A, Series 1.33A | Single | Dual | No | 40VA | Through Hole | PC Pin | 51.31mm L x 41.40mm W | 26.67mm | - | 0.38 lb (172.37 g) |
|
266L48PWR XFMR LAMINATED 96VA CHAS MT |
3,008 |
|
Datasheet | 266 | Bulk | Active | Laminated Core | 117V, 234V | Parallel 24V, Series 48V | Parallel 4A, Series 2A | Dual | Dual | No | 96VA | Chassis Mount | Wire Leads | 71.37mm L x 77.72mm W | 85.85mm | 2000Vrms | 4.5 lbs (2 kg) |
|
|
1182M110PWR XFMR TOROIDAL 300VA CHAS MT |
2,572 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 2.72A, Series 1.36A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms | 6 lbs (2.7 kg) |
|
|
227PPWR XFMR SEMI-TORO 40VA TH |
2,840 |
|
Datasheet | 227 | Bulk | Active | Semi-Toroidal | 115V | Parallel 13V, Series 26V | Parallel 3.08A, Series 1.54A | Single | Dual | No | 40VA | Through Hole | PC Pin | 51.31mm L x 41.40mm W | 26.67mm | - | 0.38 lb (172.37 g) |
|
|
226RPWR XFMR SEMI-TORO 20VA TH |
2,230 |
|
Datasheet | 226 | Bulk | Active | Semi-Toroidal | 115V | Parallel 15V, Series 30V | Parallel 1.33A, Series 670mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|
|
266V6BPWR XFMR LAMINATED 126VA CHAS MT |
1,482 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 40A, Series 20A | Dual | Dual | No | 126VA | Chassis Mount | Wire Leads | 79.50mm L x 90.42mm W | 96.77mm | 2000Vrms | 6.4 lbs (2.9 kg) |
|
370AXPWR XFMR LAMINATED 44VA CHAS MT |
1,891 |
|
Datasheet | 300 | Bulk | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 480V, 6.3V | 58mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 44VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.3 lbs (1 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
