Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
167S12PWR XFMR LAMINATED 126VA CHAS MT |
3,067 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 12.6V | 10A | Single | Single | Yes | 126VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 3.6 lbs (1.6 kg) |
|
266M20PWR XFMR LAMINATED 60VA CHAS MT |
3,887 |
|
Datasheet | 266 | Box | Active | Laminated Core | 117V, 234V | Parallel 10V, Series 20V | Parallel 6A, Series 3A | Dual | Dual | No | 60VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|
1182G18PWR XFMR TOROIDAL 225VA CHAS MT |
1,232 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 18V, Series 36V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 225VA | Chassis Mount | Wire Leads | 114.30mm Dia | 47.75mm | 4000Vrms | 4.7 lbs (2.1 kg) |
|

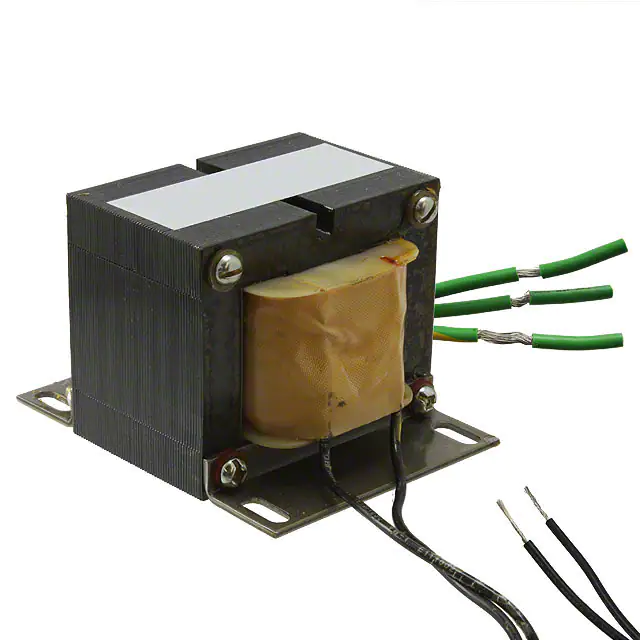

165P30PWR XFMR LAMINATED 150VA CHAS MT |
1,502 |
|
Datasheet | 165 | Bulk | Active | Laminated Core | 115V | 30V | 5A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 76.20mm L x 101.60mm W | 65.02mm | 2000Vrms | 5 lbs (2.3 kg) |
|
270AXPWR XFMR LAMINATED 42VA CHAS MT |
2,814 |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 480V, 6.3V | 58mA, 2.5A | Single | Dual | Yes | 42VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
|
167M60PWR XFMR LAMINATED 180VA CHAS MT |
4,566 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 60V | 3A | Single | Single | Yes | 180VA | Chassis Mount | Wire Leads | 79.50mm L x 95.25mm W | 96.77mm | 2000Vrms | 5.9 lbs (2.7 kg) |
|
|
270XPWR XFMR LAMINATED 41VA CHAS MT |
2,042 |
|
Datasheet | 270 | Bulk | Active | Laminated Core | 115V | 480V, 6.3V, 5V | 46mA, 1.5A, 2A | Single | Triple | Yes | 41VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
271XPWR XFMR LAMINATED 63VA CHAS MT |
1,389 |
|
Datasheet | 271 | Bulk | Active | Laminated Core | 115V | 560V, 6.3V, 5V | 69mA, 2A, 2A | Single | Triple | Yes | 63VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
167X5PWR XFMR LAMINATED 150VA CHAS MT |
4,246 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 5V | 30A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms | 5.2 lbs (2.4 kg) |
|
|
1182N22PWR XFMR TOROIDAL 160VA CHAS MT |
4,065 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 22V, Series 44V | Parallel 7.28A, Series 3.64A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms | 3 lbs (1.4 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
