Power Transformers
Review Power Transformers Transformers components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1182J117PWR XFMR TOROIDAL 120VA CHAS MT |
1,123 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 1.026A, Series 513mA | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182Q9PWR XFMR TOROIDAL 120VA CHAS MT |
3,959 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 9V, Series 18V | Parallel 13.34A, Series 6.67A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
167L60PWR XFMR LAMINATED 120VA CHAS MT |
3,425 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 60V | 2A | Single | Single | Yes | 120VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 3.6 lbs (1.6 kg) |
|
BF5GPWR XFMR LAMINATED 75VA CHAS MT |
3,393 |
|
Datasheet | BF | Bulk | Active | Laminated Core | 240V | 24V | 3.13A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
|
1182L30PWR XFMR TOROIDAL 120VA CHAS MT |
4,251 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 30V, Series 60V | Parallel 4A, Series 2A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
1182N15PWR XFMR TOROIDAL 120VA CHAS MT |
1,979 |
|
Datasheet | 1182 | Box | Active | Toroidal | 117V, 234V | Parallel 15V, Series 30V | Parallel 8A, Series 4A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 101.60mm Dia | 41.40mm | 4000Vrms | 3 lbs (1.4 kg) |
|
|
BF5FPWR XFMR LAMINATED 75VA CHAS MT |
4,144 |
|
Datasheet | BF | Bulk | Active | Laminated Core | 240V | 16V | 4.68A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - | 3.2 lbs (1.5 kg) |
|
269GXPWR XFMR LAMINATED 48VA CHAS MT |
1,783 |
|
Datasheet | 269 | Bulk | Active | Laminated Core | 115V | 450V, 6.3V | 75mA, 2.5A | Single | Dual | Yes | 48VA | Chassis Mount | Wire Leads | 55.63mm L x 66.80mm W | 66.80mm | 2000Vrms | 1.9 lbs (861.8 g) |
|
|
167P25PWR XFMR LAMINATED 125VA CHAS MT |
3,483 |
|
Datasheet | 167 | Bulk | Active | Laminated Core | 115V | 25V | 5A | Single | Single | Yes | 125VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms | 3.6 lbs (1.6 kg) |
|

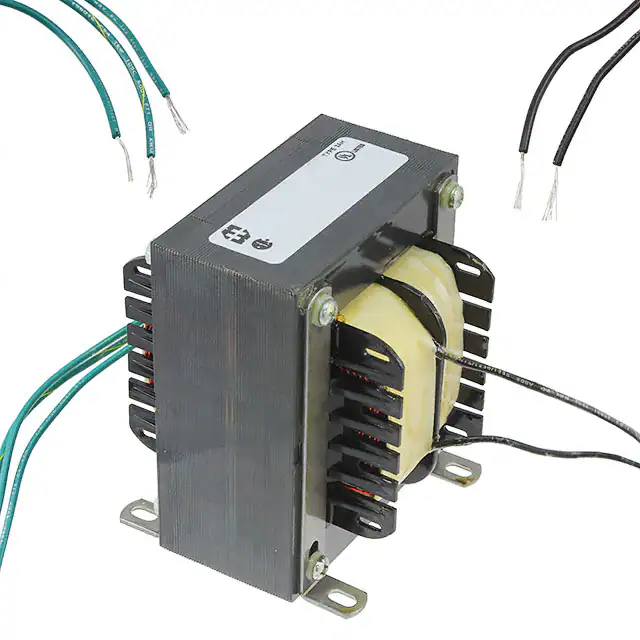

166M72PWR XFMR LAMINATED 216VA CHAS MT |
2,644 |
|
Datasheet | 166 | Box | Active | Laminated Core | 117V | 72V | 3A | Single | Single | Yes | 216VA | Chassis Mount | Wire Leads | 95.25mm L x 90.42mm W | 114.30mm | 2000Vrms | 11 lbs (5 kg) |
Frequently Asked Questions
What are Power Transformers components used for?
Power Transformers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Power Transformers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Power Transformers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
