IGBT Modules
Review IGBT Modules IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT200GN60JDQ4IGBT MOD 600V 283A 682W ISOTOP |
33 |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 50 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT75GT120JU2IGBT MOD 1200V 100A 416W SOT227 |
66 |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT200GN60JIGBT MOD 600V 283A 682W ISOTOP |
35 |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 283 A | 682 W | 1.85V @ 15V, 200A | 25 µA | 14.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT70GR120JD60IGBT MOD 1200V 112A 543W SOT227 |
20 |
|
Datasheet | - | SOT-227-4 | Tube | Active | NPT | Single | 1200 V | 112 A | 543 W | 3.2V @ 15V, 70A | 1.1 mA | 7.26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT150GN60JDQ4IGBT MOD 600V 220A 536W ISOTOP |
20 |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 50 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JRDQ4IGBT MOD 1200V 123A 570W ISOTOP |
8 |
|
Datasheet | Thunderbolt IGBT® | ISOTOP | Tube | Active | NPT | Single | 1200 V | 123 A | 570 W | 3.7V @ 15V, 100A | 200 µA | 7.85 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN120JDQ4IGBT MOD 1200V 215A 625W ISOTOP |
9 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 300 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

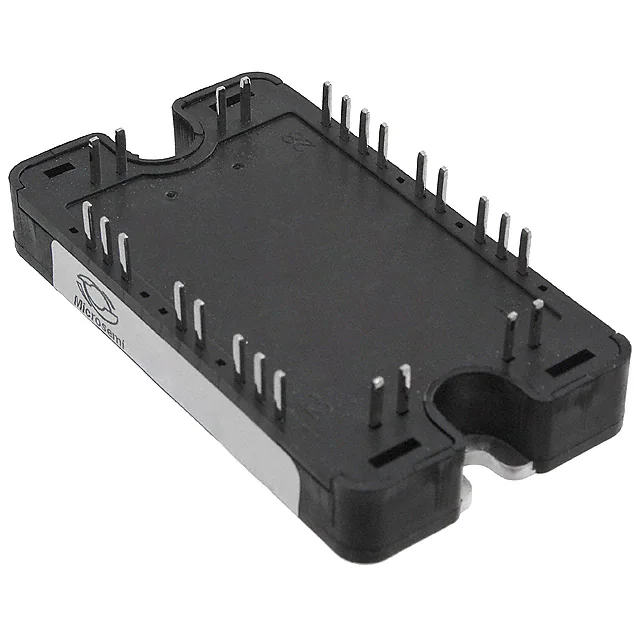

APTGT50H60T3GIGBT MODULE 600V 80A 176W SP3 |
15 |
|
Datasheet | - | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APT85GR120JIGBT MOD 1200V 116A 543W SOT227 |
10 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT85GR120JD60IGBT MOD 1200V 116A 543W SOT227 |
20 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1.1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
