Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5501-RCFIXED IND 5UH 10A 13 MOHM TH |
2,867 |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
5502-RCFIXED IND 10UH 9A 17 MOHM TH |
4,135 |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | - | Unshielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - |
|

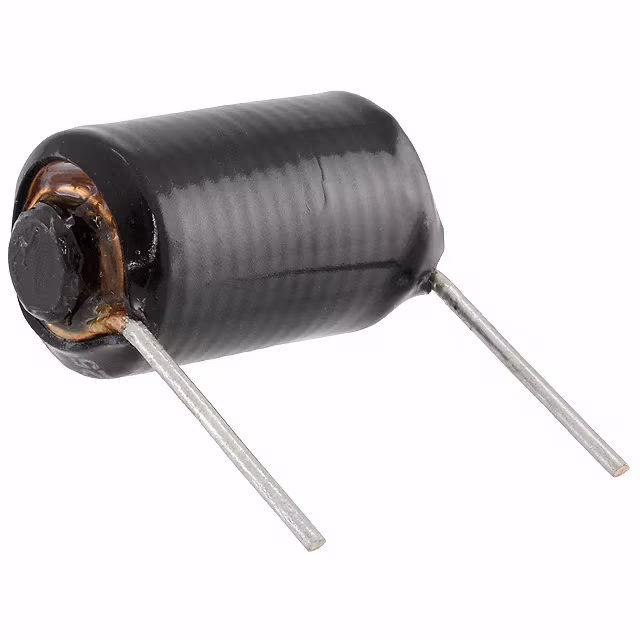

5520-RCFIXED IND 100UH 10A 27 MOHM TH |
3,074 |
|
Datasheet | 5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 10 A | - | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.620" L (23.88mm x 41.15mm) | - |
|
5607-RCFIXED IND 500UH 2A 378 MOHM TH |
1,967 |
|
Datasheet | 5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2 A | - | Unshielded | 378mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|

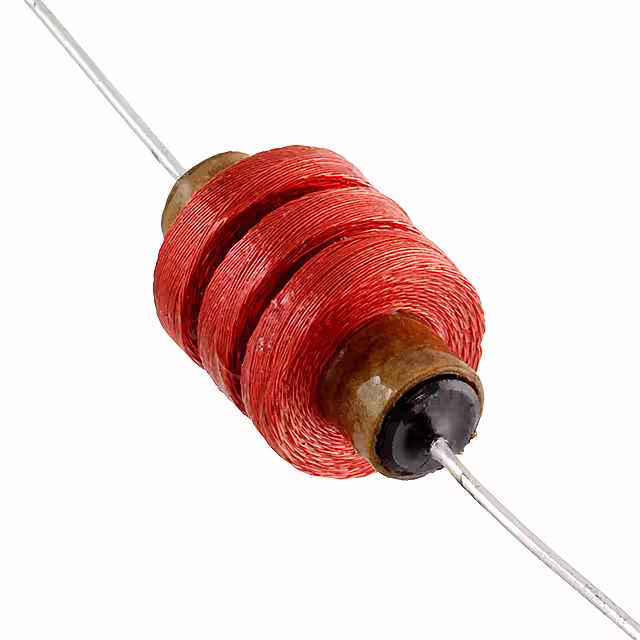

6310-RCFIXED IND 50MH 65MA 127 OHM TH |
3,613 |
|
Datasheet | 6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±5% | 65 mA | - | Unshielded | 127Ohm Max | 100 @ 79.6kHz | 330kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.630" Dia x 0.875" L (16.00mm x 22.22mm) | - |
|
PT12133SLFIXED IND 8.2MH 50MA 26 OHM TH |
3,164 |
|
Datasheet | PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 8.2 mH | ±10% | 50 mA | - | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
CM201212-1R0KLFIXED IND 1UH 120MA 3.82 OHM SMD |
3,980 |
|
Datasheet | CM201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Polymer | 1 µH | ±10% | 120 mA | - | Unshielded | 3.82Ohm Max | 8 @ 7.96MHz | 80MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.079" L x 0.050" W (2.00mm x 1.27mm) | 0.058" (1.47mm) |
|
CS321613-330KFIXED IND 33UH 25MA 1.5 OHM SMD |
1,410 |
|
Datasheet | CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 33 µH | ±10% | 25 mA | - | Shielded | 1.5Ohm Max | 45 @ 400kHz | 13MHz | - | -55°C ~ 125°C | 400 kHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
PM1008S-5R6M-RCFIXED IND 5.6UH 1A 400 MOHM SMD |
3,277 |
|
Datasheet | PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1 A | - | Shielded | 400mOhm Max | 38 @ 1MHz | 150MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-100M-RCFIXED IND 10UH 780MA 1 OHM SMD |
3,036 |
|
Datasheet | PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 780 mA | - | Shielded | 1Ohm Max | 38 @ 1MHz | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
