Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F272AF-RCFIXED IND 27MH 45MA 120 OHM TH |
2,105 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±5% | 45 mA | - | Unshielded | 120Ohm Max | 61 @ 79kHz | 244kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|
70F273AI-RCFIXED IND 2.7MH 57MA 45.6 OHM TH |
2,158 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.7 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 50 @ 250kHz | 880kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
|
70F304AI-RCFIXED IND 300UH 106MA 13.2OHM TH |
3,473 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 300 µH | ±5% | 106 mA | - | Unshielded | 13.2Ohm Max | 46 @ 790kHz | 2.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F687AP-RCFIXED IND 680NH 1A 200 MOHM TH |
1,895 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±20% | 1 A | - | Unshielded | 200mOhm Max | 48 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F752AF-RCFIXED IND 75MH 33MA 222 OHM TH |
2,057 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 75 mH | ±5% | 33 mA | - | Unshielded | 222Ohm Max | 53 @ 79kHz | 174kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|
70F337AP-RCFIXED IND 330NH 1.69A 700MOHM TH |
3,598 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 330 nH | ±20% | 1.69 A | - | Unshielded | 700mOhm Max | 47 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F754AI-RCFIXED IND 750UH 80MA 22.9 OHM TH |
2,820 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 750 µH | ±5% | 80 mA | - | Unshielded | 22.9Ohm Max | 40 @ 790kHz | 1.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.210" Dia x 0.250" L (5.33mm x 6.35mm) | - |
|
|
70F755AI-RCFIXED IND 75UH 162MA 4.56 OHM TH |
2,305 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 75 µH | ±5% | 162 mA | - | Unshielded | 4.56Ohm Max | 38 @ 2.5MHz | 7.2MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|

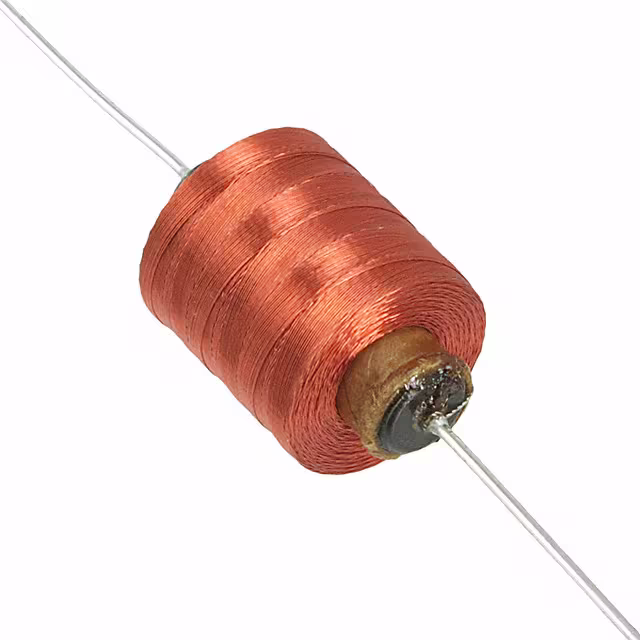

70F391AF-RCFIXED IND 390MH 33MA 617 OHM TH |
2,066 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
|
|
70F756AI-RCFIXED IND 7.5UH 566MA 624MOHM TH |
2,418 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 µH | ±10% | 566 mA | - | Unshielded | 624mOhm Max | 32 @ 7.9MHz | 44MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
