Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F152AI-RCFIXED IND 15MH 47MA 113 OHM TH |
3,579 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 mH | ±5% | 47 mA | - | Unshielded | 113Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|
70F253AI-RCFIXED IND 2.5MH 57MA 45.6 OHM TH |
4,058 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.5 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 48 @ 250kHz | 960kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
70F563AI-RCFIXED IND 5.6MH 46MA 69.6 OHM TH |
4,553 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 mH | ±5% | 46 mA | - | Unshielded | 69.6Ohm Max | 53 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) | - |
|
70F252AF-RCFIXED IND 25MH 46MA 115 OHM TH |
1,591 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|
4622-RCFIXED IND 10UH 1.5A 110 MOHM TH |
1,183 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±5% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.52MHz | 40MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4624-RCFIXED IND 15UH 1A 170 MOHM TH |
4,324 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±5% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4626-RCFIXED IND 24UH 800MA 340 MOHM TH |
1,071 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 24 µH | ±5% | 800 mA | - | Unshielded | 340mOhm Max | 65 @ 2.52MHz | 25MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628-RCFIXED IND 39UH 600MA 650 MOHM TH |
3,385 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 39 µH | ±5% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4632-RCFIXED IND 100UH 400MA 3 OHM TH |
4,711 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

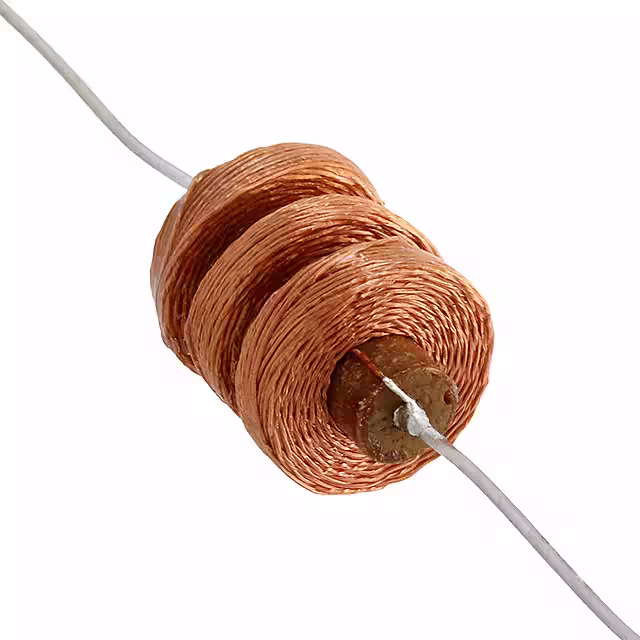

4652-RCFIXED IND 1MH 160MA 19 OHM TH |
4,400 |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 mH | ±5% | 160 mA | - | Unshielded | 19Ohm Max | 59 @ 252kHz | 3.7MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
