Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F392AF-RCFIXED IND 39MH 41MA 147 OHM TH |
4,891 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 41 mA | - | Unshielded | 147Ohm Max | 59 @ 79kHz | 220kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.370" Dia x 0.630" L (9.40mm x 16.00mm) | - |
|
70F155AI-RCFIXED IND 15UH 250MA 1.92 OHM TH |
4,199 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±10% | 250 mA | - | Unshielded | 1.92Ohm Max | 52 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F224AI-RCFIXED IND 220UH 114MA 11.5OHM TH |
1,326 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 220 µH | ±5% | 114 mA | - | Unshielded | 11.5Ohm Max | 46 @ 790kHz | 2.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
70F275AI-RCFIXED IND 27UH 213MA 2.64 OHM TH |
1,033 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 27 µH | ±5% | 213 mA | - | Unshielded | 2.64Ohm Max | 49 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
70F107AP-RCFIXED IND 100NH 3.922A 130MOHM |
4,188 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 100 nH | ±20% | 3.922 A | - | Unshielded | 130mOhm Max | 49 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) | - |
|
70F566AI-RCFIXED IND 5.6UH 637MA 492MOHM TH |
4,840 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 µH | ±10% | 637 mA | - | Unshielded | 492mOhm Max | 41 @ 7.9MHz | 49MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

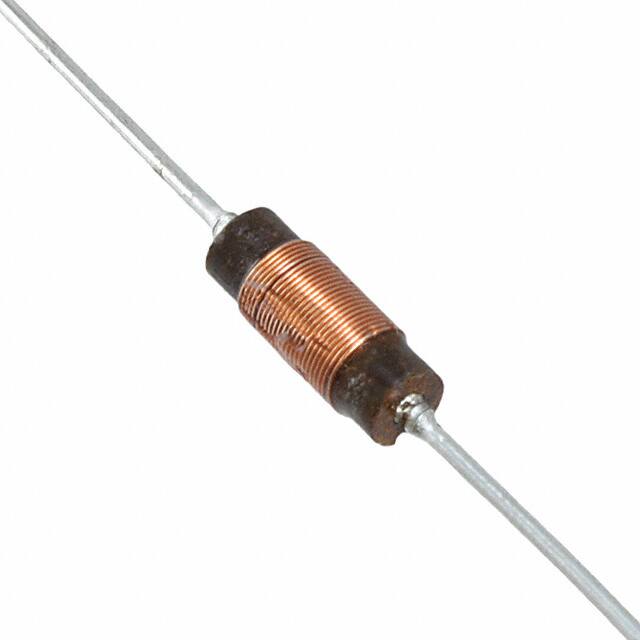

70F757AP-RCFIXED IND 750NH 870MA 264MOHM TH |
2,635 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 750 nH | ±20% | 870 mA | - | Unshielded | 264mOhm Max | 48 @ 25MHz | 224MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|

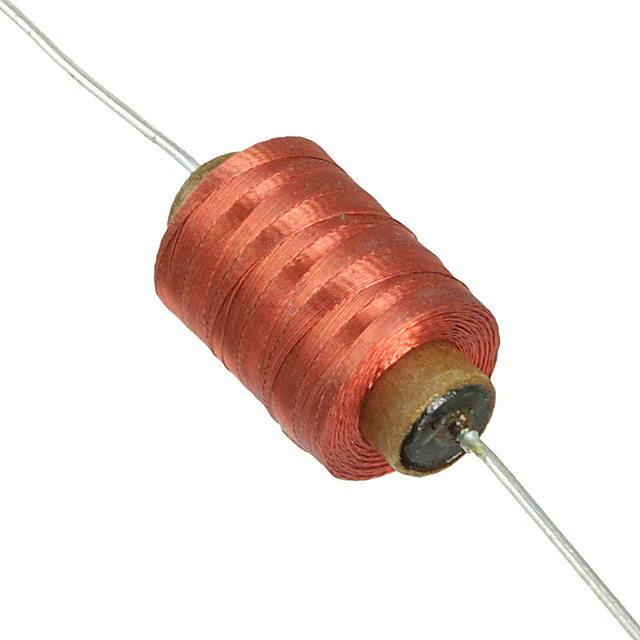

70F251AF-RCFIXED IND 250MH 37MA 468 OHM TH |
1,658 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 mH | ±5% | 37 mA | - | Unshielded | 468Ohm Max | 52 @ 25kHz | 65kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | - |
|

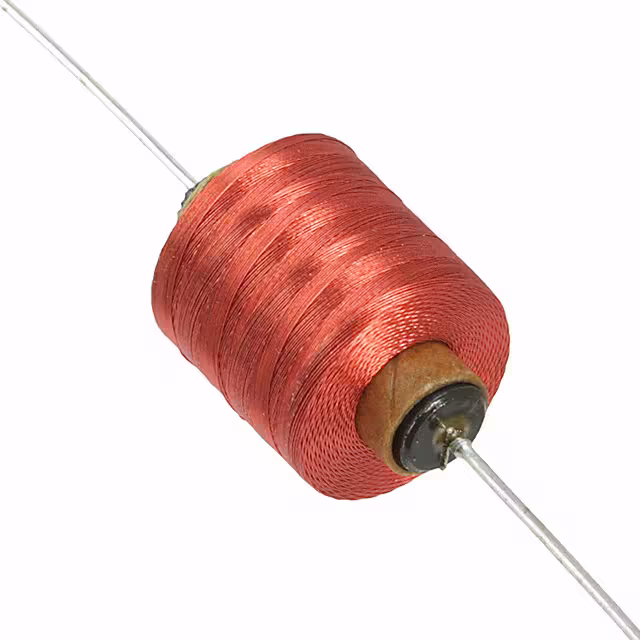

70F501AF-RCFIXED IND 500MH 30MA 736 OHM TH |
3,384 |
|
Datasheet | 70F | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 500 mH | ±5% | 30 mA | - | Unshielded | 736Ohm Max | 53 @ 25kHz | 52kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
70F122AI-RCFIXED IND 12MH 50MA 100 OHM TH |
2,946 |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 12 mH | ±5% | 50 mA | - | Unshielded | 100Ohm Max | 46 @ 79kHz | 360kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
