Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2306-V-RCFIXED IND 27UH 15.6A 8 MOHM TH |
808 |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 27 µH | ±15% | 15.6 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2319-V-RCFIXED IND 390UH 5A 72 MOHM TH |
483 |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 390 µH | ±15% | 5 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2318-V-RCFIXED IND 330UH 5.2A 67 MOHM TH |
299 |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 5.2 A | - | Unshielded | 67mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2209-V-RCFIXED IND 47UH 6.7A 24 MOHM TH |
1,071 |
|
Datasheet | 2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2300HT-220-V-RCFIXED IND 22UH 19A 8 MOHM TH |
974 |
|
Datasheet | 2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 19 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
SRP2313AA-100MFIXED IND 10UH 30A 4.15 MOHM SMD |
326 |
|
Datasheet | SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 30 A | 20A | Shielded | 4.15mOhm Max | 40 @ 100kHz | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

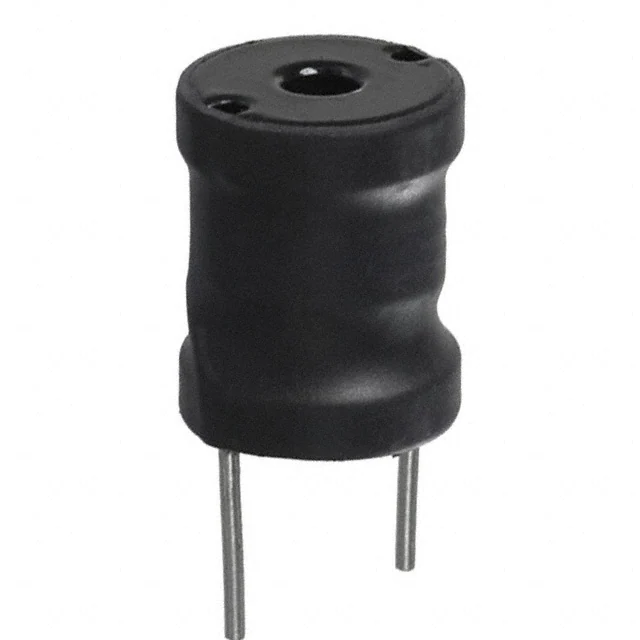

1110-101K-RCFIXED IND 100UH 2.8A 95 MOHM TH |
1,616 |
|
Datasheet | 1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.8 A | - | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
1130-472K-RCFIXED IND 4.7MH 1A 1.86 OHM TH |
988 |
|
Datasheet | 1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 1 A | - | Unshielded | 1.86Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-152K-RCFIXED IND 1.5MH 2A 518 MOHM TH |
676 |
|
Datasheet | 1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 2 A | - | Unshielded | 518mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

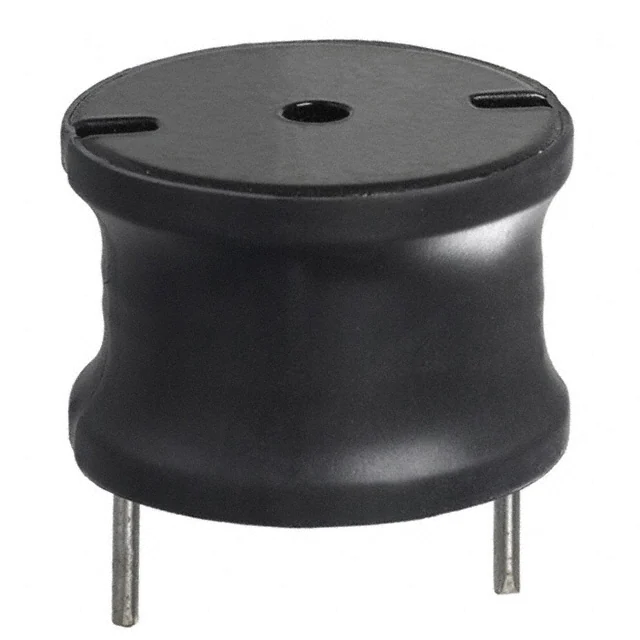

1140-101K-RCFIXED IND 100UH 10.5A 25 MOHM TH |
769 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10.5 A | 20.6A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
