Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS160808-2R7KFIXED IND 2.7UH 50MA 1 OHM SMD |
8,213 |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 50 mA | - | Shielded | 1Ohm Max | 50 @ 10MHz | 40MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-R27KFIXED IND 270NH 200MA 500MOHM SM |
7,967 |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±10% | 200 mA | - | Shielded | 500mOhm Max | 30 @ 25MHz | 136MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-2R2KFIXED IND 2.2UH 50MA 900MOHM SMD |
6,666 |
|
Datasheet | CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 900mOhm Max | 50 @ 10MHz | 45MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CWF1610-220KIND,1.6X1X1MM,22UH10%,0.2A,NON-S |
10,357 |
|
Datasheet | CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 200 mA | 200mA | Unshielded | 3.61Ohm | 14 @ 2.5MHz | 24MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
CWF1610-100KIND,1.6X1X1MM,10UH10%,0.28A,NON- |
4,012 |
|
Datasheet | CWF1610 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 280 mA | 280mA | Unshielded | 1.85Ohm | 14 @ 2.5MHz | 36MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.043" (1.10mm) |
|
CWF2414-6R8KIND,2.2X1.4X1.3MM,6.8UH10%,0.7A, |
1,597 |
|
Datasheet | CWF2414 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 700 mA | 420mA | Unshielded | 680mOhm | 14 @ 7.9MHz | 46MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.055" (1.40mm) |

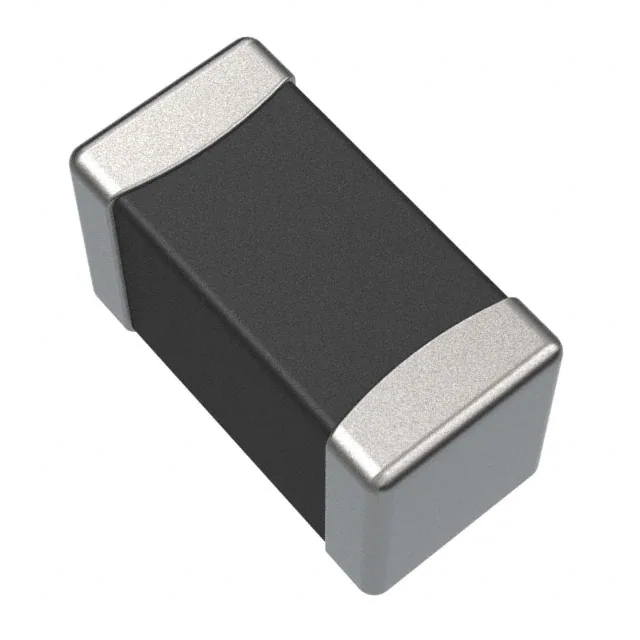

-,95.jpg "CVH160808-1R0M")
|
CVH160808-1R0MFIXED IND 1UH 950MA 250MOHM SMD |
9,130 |
|
Datasheet | CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | - | Shielded | 250mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

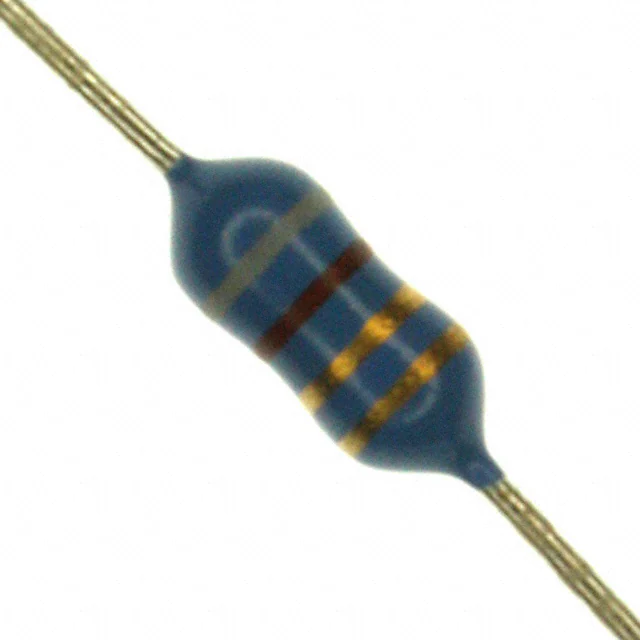

78F8R2J-RCFIXED IND 8.2UH 425MA 550MOHM TH |
21,121 |
|
Datasheet | 78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 425 mA | - | Unshielded | 550mOhm Max | 40 @ 7.9MHz | 20MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
SRN2012T-220KIND,2X1.2X1.2MM,22UH10%,0.34A,SE |
42,258 |
|
Datasheet | SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 340 mA | 240mA | Shielded | 1.76Ohm | 15 @ 2.5MHz | 20MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
SRP3212-4R7MIND,3.2X2.5X1MM,4.7UH20%,2.2A,SH |
5,282 |
|
Datasheet | SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 2.2 A | 2.8A | Shielded | 146mOhm Max | 5 @ 100kHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
