Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1770TA-3R3MFIXED IND 3.3UH 28A 3.9 MOHM SMD |
12,533 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 28 A | 45A | Shielded | 3.9mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-4R7MFIXED IND 4.7UH 25A 5.5 MOHM SMD |
4,421 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 25 A | 41A | Shielded | 5.5mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-1R0MFIXED IND 1UH 52A 2 MOHM SMD |
1,734 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 52 A | 60A | Shielded | 2mOhm Max | 20 @ 100kHz | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-560MFIXED IND 56UH 7.8A 62 MOHM SMD |
674 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 56 µH | ±20% | 7.8 A | 9A | Shielded | 62mOhm Max | 20 @ 100kHz | 3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-101MFIXED IND 100UH 5.3A 118MOHM SMD |
575 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 µH | ±20% | 5.3 A | 6.5A | Shielded | 118mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-330MFIXED IND 33UH 10.7A 44 MOHM SMD |
1,030 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 10.7 A | 15A | Shielded | 44mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|
|
SRP1770TA-680MFIXED IND 68UH 7A 80 MOHM SMD |
709 |
|
Datasheet | SRP1770TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 7 A | 8A | Shielded | 80mOhm Max | 20 @ 100kHz | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.276" (7.00mm) |
|

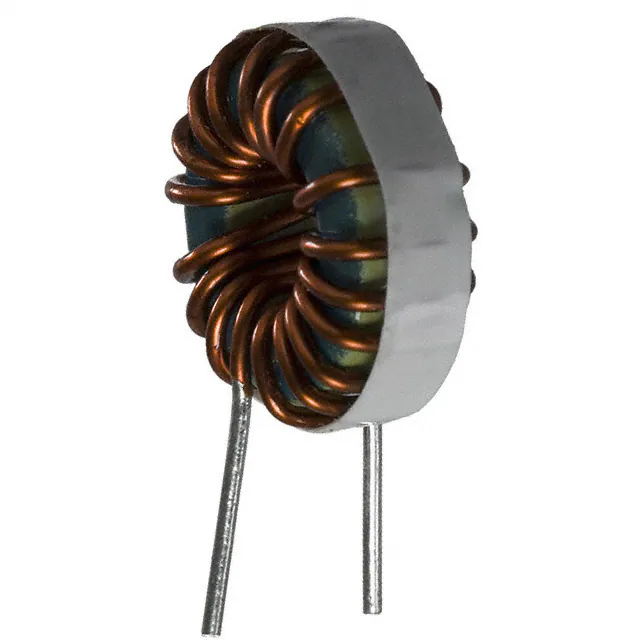

2320-V-RCFIXED IND 470UH 3.8A 130 MOHM TH |
2,452 |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 3.8 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2309-V-RCFIXED IND 47UH 10.7A 16 MOHM TH |
1,631 |
|
Datasheet | 2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10.7 A | - | Unshielded | 16mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
PQ2617BHA-150KFIXED IND 15UH 28A 2.5 MOHM SMD |
1,453 |
|
Datasheet | PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 28 A | 21.2A | Shielded | 2.5mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
