Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265A-330MFIXED IND 33UH 8A 58 MOHM SMD |
2,451 |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 8 A | 11A | Shielded | 58mOhm Max | 20 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-470MFIXED IND 47UH 6.5A 90 MOHM SMD |
720 |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 6.5 A | 9.5A | Shielded | 90mOhm Max | 20 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
5250-RCFIXED IND 100UH 2A 216 MOHM TH |
3,523 |
|
Datasheet | 5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | - |
|

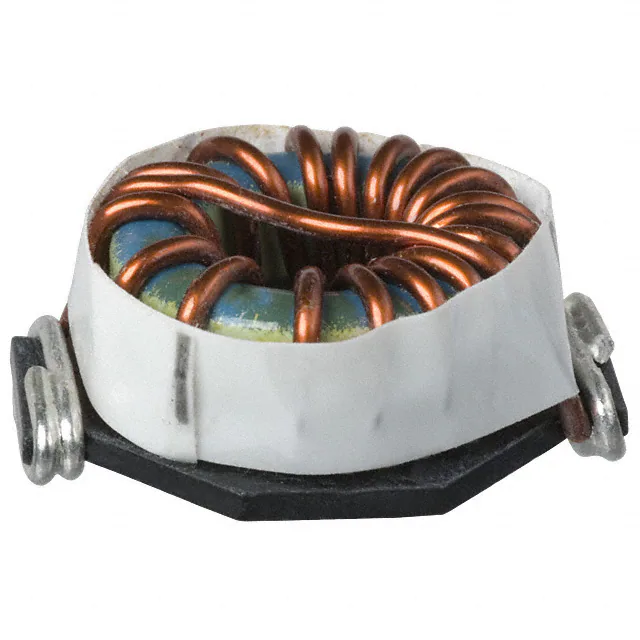

PM2110-221K-RCFIXED IND 220UH 3.5A 74 MOHM SMD |
4,518 |
|
Datasheet | PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 3.5 A | - | Unshielded | 74mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|

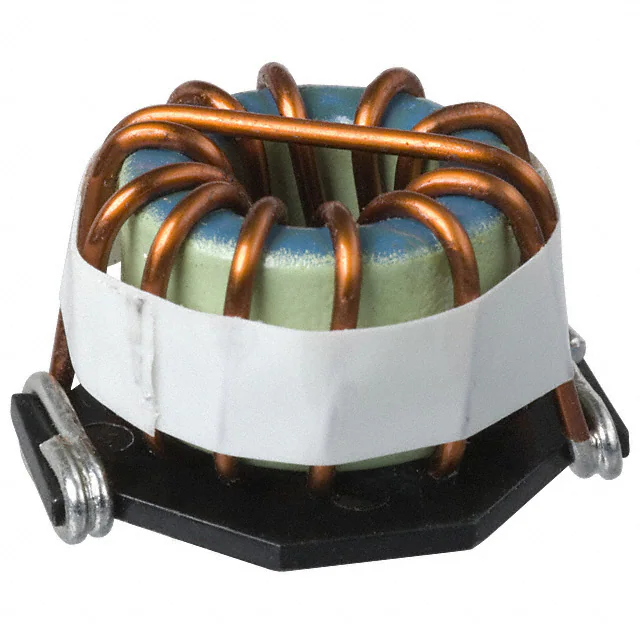

PM2120-221K-RCFIXED IND 220UH 5A 52 MOHM SMD |
2,655 |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 5 A | - | Unshielded | 52mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.830" (21.08mm) |
|
|
PM2120-471K-RCFIXED IND 470UH 3.3A 119MOHM SMD |
1,877 |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 470 µH | ±10% | 3.3 A | - | Unshielded | 119mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.850" (21.59mm) |
|
|
PM2120-330K-RCFIXED IND 33UH 10.1A 13 MOHM SMD |
715 |
|
Datasheet | PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 33 µH | ±10% | 10.1 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
2100LL-471-H-RCFIXED IND 470UH 2.3A 124 MOHM TH |
213 |
|
Datasheet | 2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 2.3 A | - | Shielded | 124mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
PQ2614BHA-100KFIXED IND 10UH 30A 1.9 MOHM SMD |
5,646 |
|
Datasheet | PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 30 A | 21.5A | Shielded | 1.9mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|

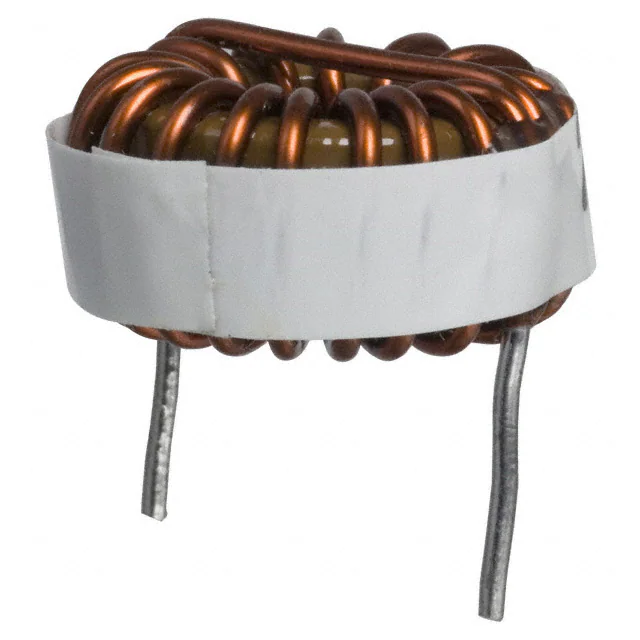

2218-H-RCFIXED IND 330UH 3.3A 100 MOHM TH |
255 |
|
Datasheet | 2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.3 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
