Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-RF18NGFBFIXED IND 18NH 240MA 700MOHM SMD |
108 |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 18 nH | ±2% | 240 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 2.2GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-FB391JFFIXED IND 390UH 70MA 19 OHM SMD |
356 |
|
Datasheet | FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±5% | 70 mA | - | Unshielded | 19Ohm Max | 40 @ 796kHz | 3.3MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

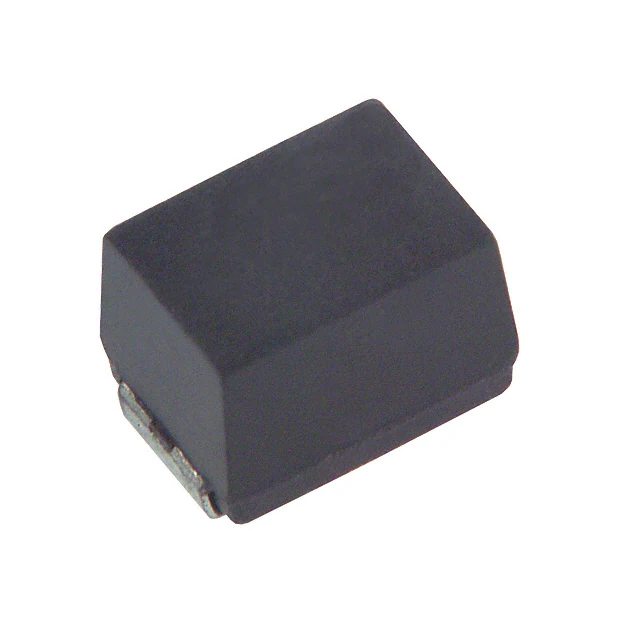

ELJ-PB270KFFIXED IND 27UH 270MA 1.2 OHM SMD |
335 |
|
Datasheet | PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±10% | 270 mA | - | Unshielded | 1.2Ohm Max | 10 @ 2.52MHz | 11MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

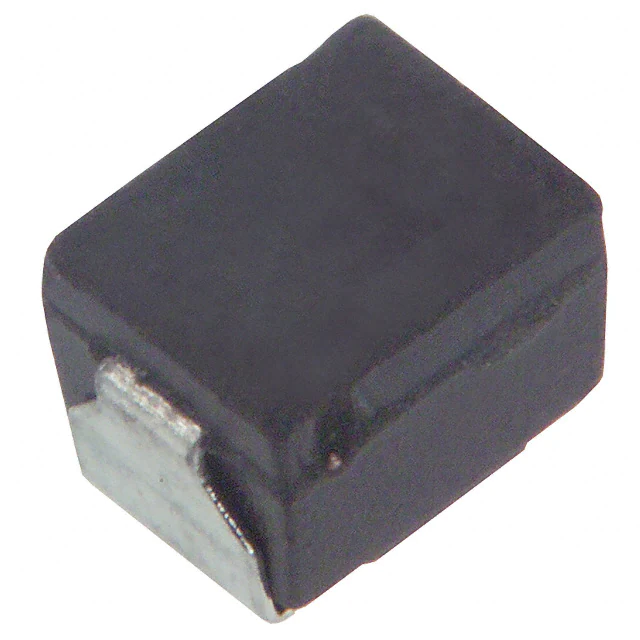

ELJ-EA150KFFIXED IND 15UH 145MA 320MOHM SMD |
589 |
|
Datasheet | EA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±10% | 145 mA | - | Shielded | 320mOhm Max | 10 @ 2.52MHz | 25MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELL-VEG4R7NFIXED IND 4.7UH 770MA 240MOHM SM |
530 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 770 mA | 750mA | Shielded | 240mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
ELJ-FBR56MFFIXED IND 560NH 560MA 420MOHM SM |
300 |
|
Datasheet | FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±20% | 560 mA | - | Unshielded | 420mOhm Max | 30 @ 25.2MHz | 120MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

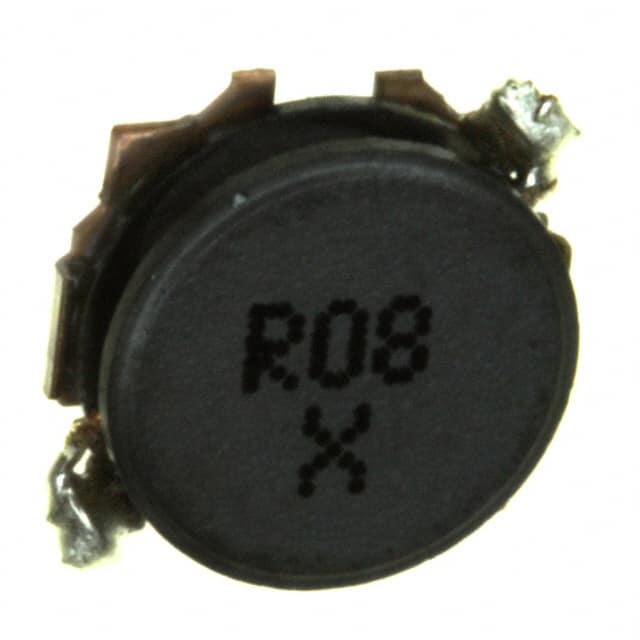

ELL-6PG3R9NFIXED IND 3.9UH 1.9A 51 MOHM SMD |
500 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±30% | 1.9 A | 1.6A | Shielded | 51mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
ELL-4FG3R3NAFIXED IND 3.3UH 1.22A 110MOHM SM |
380 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 1.22 A | 1.1A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-4FG1R5NAFIXED IND 1.5UH 1.7A 60 MOHM SMD |
145 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.7 A | 1.6A | Shielded | 60mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
|
ELL-6PG270MFIXED IND 27UH 800MA 260MOHM SMD |
2,604 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 µH | ±20% | 800 mA | 730mA | Shielded | 260mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
