Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

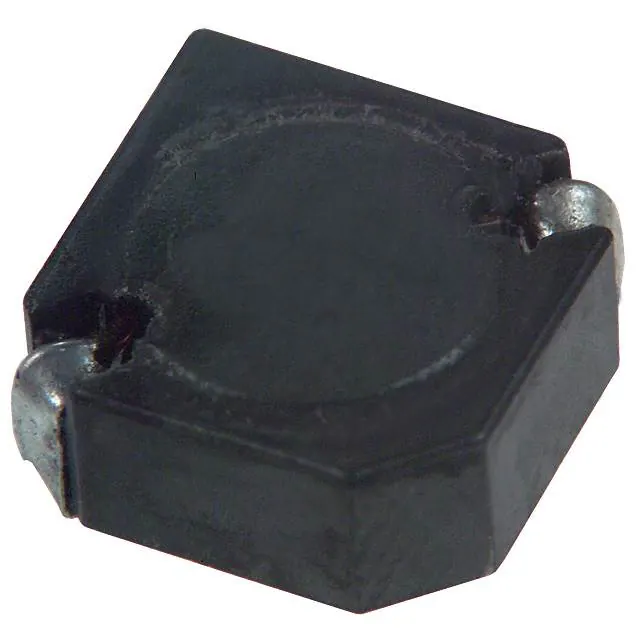

ELL-ATV821MFIXED IND 820UH 340MA 1.27OHM SM |
280 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 340 mA | - | Shielded | 1.27Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
ELT-3KN118BFIXED IND 2.5MH 20MA 64OHM SMD |
1,873 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 20 mA | - | Unshielded | 64Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|

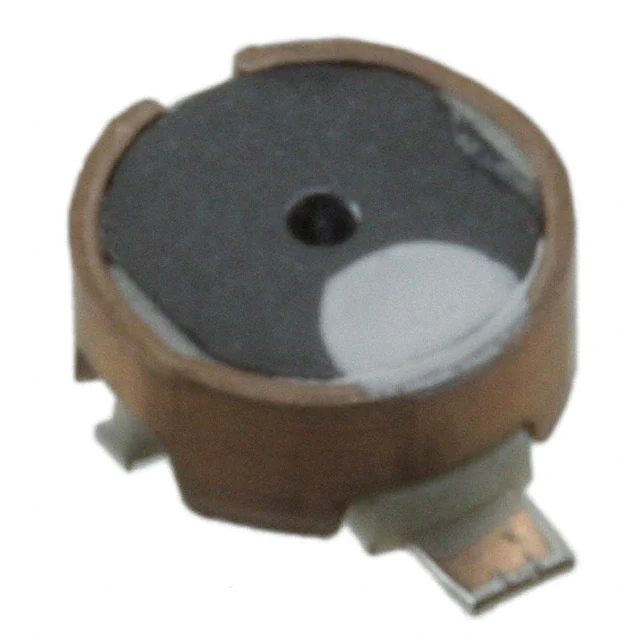

ELT-3KN162BFIXED IND 4MH 15MA 117OHM SMD |
584 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 mH | ±10% | 15 mA | - | Unshielded | 117Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
|
ELT-3KN104BFIXED IND 1MH 30MA 35OHM SMD |
1,978 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 35Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
|
ELT-3KN124BFIXED IND 4MH 15MA 85OHM SMD |
1,761 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 mH | ±10% | 15 mA | - | Unshielded | 85Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
|
ELT-3KN131BFIXED IND 2MH 20MA 44OHM SMD |
854 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 mH | ±10% | 20 mA | - | Unshielded | 44Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
ELT-3KN028CFIXED IND 50MH 1.4MA 250OHM SMD |
533 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 50 mH | ±35% | 1.4 mA | - | Unshielded | 250Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
|
ELT-3KN128BFIXED IND 560UH 45MA 15OHM SMD |
998 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 45 mA | - | Unshielded | 15Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
|
ELT-3KN121BFIXED IND 1MH 40MA 22.5OHM SMD |
936 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 40 mA | - | Unshielded | 22.5Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
ELT-3KN163BFIXED IND 1.1MH 30MA 32OHM SMD |
545 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 mH | ±10% | 30 mA | - | Unshielded | 32Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
