Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

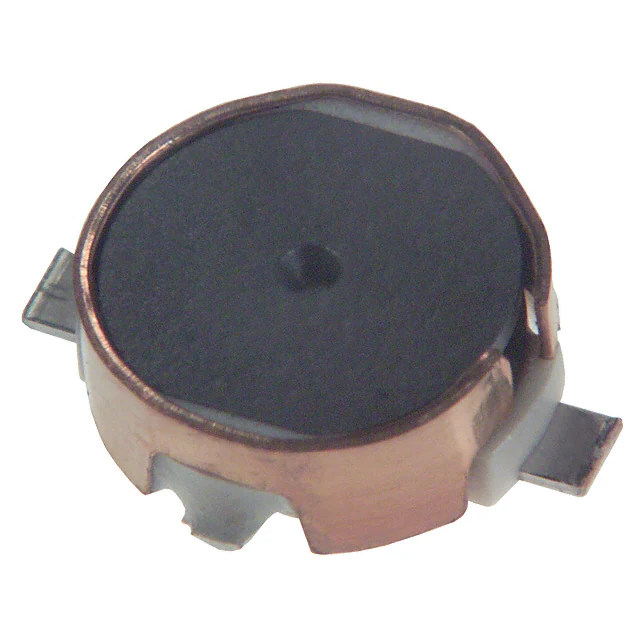

ELT-5KN135CFIXED IND 1.5MH 40MA 20 OHM SMD |
3,280 |
|
Datasheet | 5KN | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 mH | ±10% | 40 mA | - | Unshielded | 20Ohm | - | - | - | - | 1 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

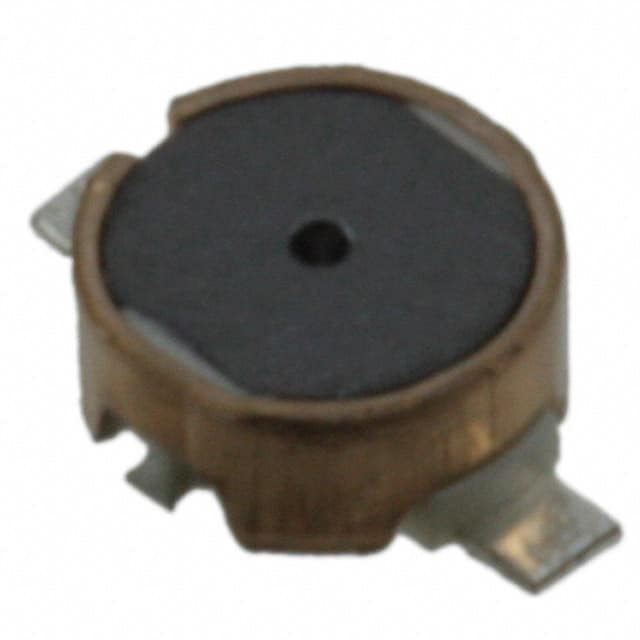

ELT-3KN136BFIXED IND 2MH 20MA 55OHM SMD |
1,436 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 mH | ±10% | 20 mA | - | Unshielded | 55Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|

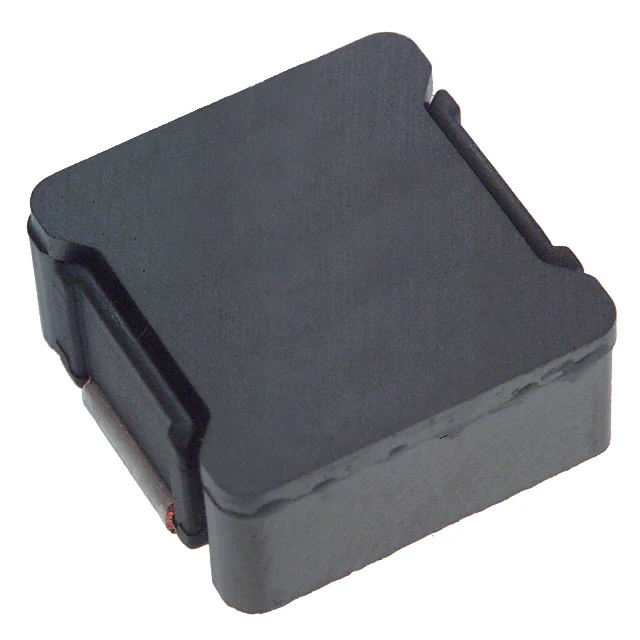

ETQ-P6F4R1LFAFIXED IND 4.1UH 7.9A 8.64MOHM SM |
1,313 |
|
Datasheet | PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.1 µH | ±20% | 7.9 A | 10.8A | Shielded | 8.64mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

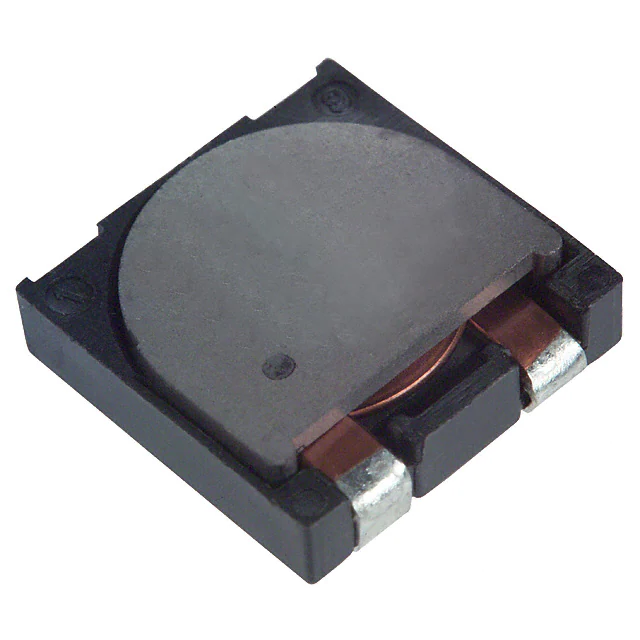

ETQ-P3H0R8BFAFIXED IND 800NH 16A 2.33MOHM SMD |
415 |
|
Datasheet | PCC-D124H (NX1) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 800 nH | ±20% | 16 A | - | Shielded | 2.33mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.154" (3.90mm) |
|

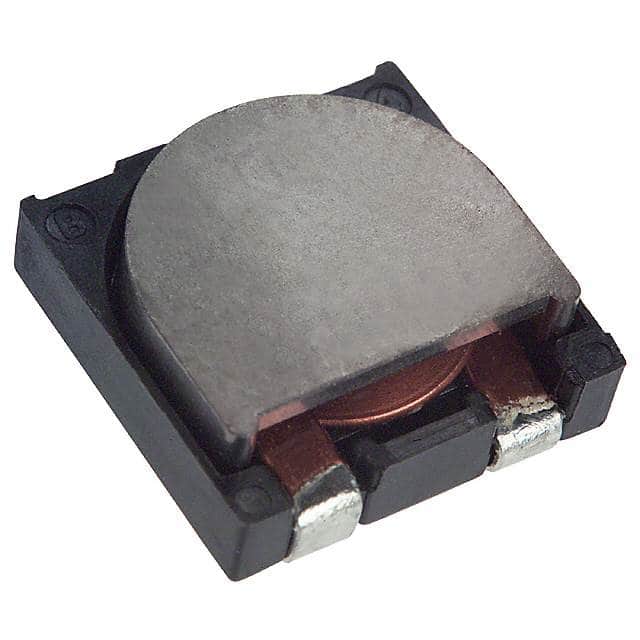

ETQ-P2H2R6BFAFIXED IND 2.61UH 12A 4.98 MOHM |
203 |
|
Datasheet | PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 2.61 µH | ±20% | 12 A | - | Shielded | 4.98mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
ETQ-P5LR60XFAFIXED IND 600NH 27A 1.1 MOHM SMD |
727 |
|
Datasheet | PCC-M1250L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal Composite | 600 nH | ±20% | 27 A | - | Shielded | 1.1mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|

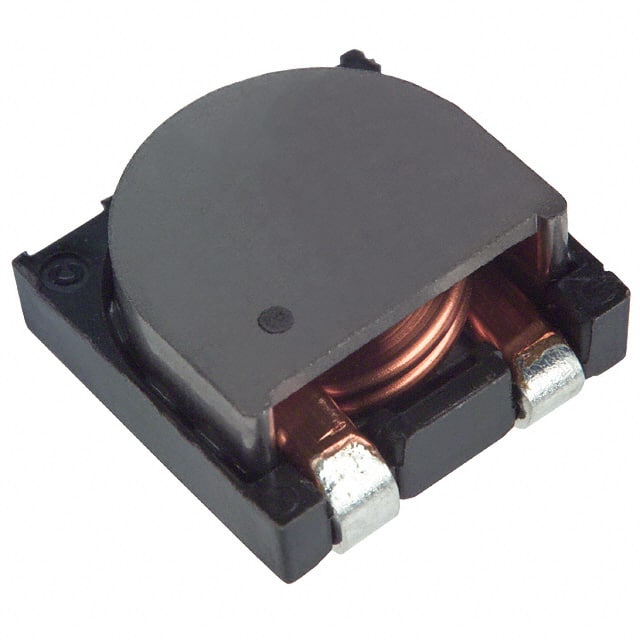

ETQ-P1H1R0BFAFIXED IND 1UH 19A 1.56 MOHM SMD |
119 |
|
Datasheet | PCC-D126H (NX3) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 19 A | - | Shielded | 1.56mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.236" (6.00mm) |
|

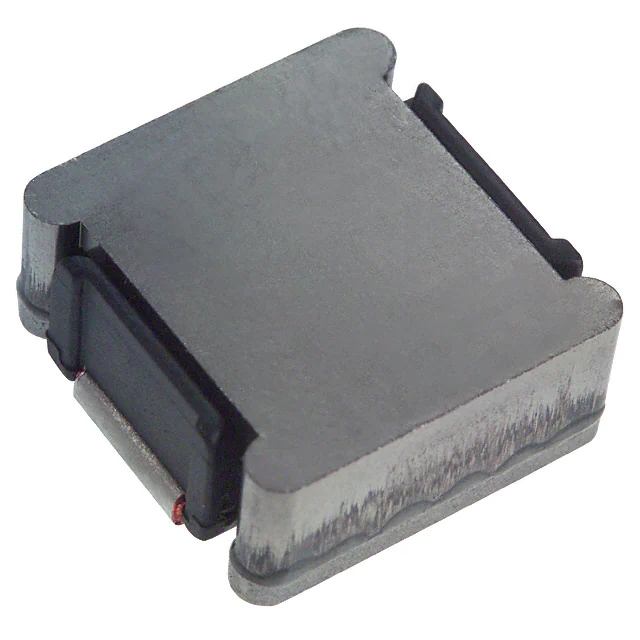

ETQ-P6F1R8BFAFIXED IND 1.71UH 14A 3.3MOHM SMD |
165 |
|
Datasheet | PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.71 µH | ±20% | 14 A | - | Shielded | 3.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|
ETQ-P4M101KVCINDUCTOR FIXED 100UH SMD |
3,124 |
|
Datasheet | PCC-M1040M-LP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 2.5 A | 3.5A | Shielded | 266.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P4M220KVKFIXED IND 22UH 3.8A 83.93MOHM SM |
1,795 |
|
Datasheet | PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 3.8 A | 6.7A | Shielded | 83.93mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
