Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

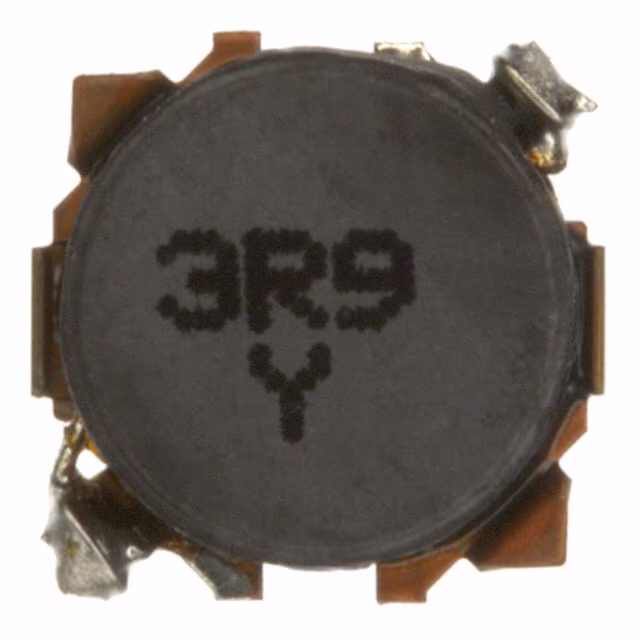

ELL-6GG3R9MFIXED IND 3.9UH 1.7A 60 MOHM SMD |
2,383 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±20% | 1.7 A | 1.65A | Shielded | 60mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
ETQ-P3W1R5WFNFIXED IND 1.5UH 11A 13 MOHM SMD |
1,868 |
|
Datasheet | PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.5 µH | ±20% | 11 A | - | Shielded | 13mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
ELL-8UV680MFIXED IND 68UH 1.1MA 130 OHM SMD |
3,712 |
|
Datasheet | ELL-8UV | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 mA | - | Unshielded | 130Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
ELL-ATV681MFIXED IND 680UH 370MA 1.15OHM SM |
500 |
|
Datasheet | V | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 370 mA | - | Shielded | 1.15Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.177" (4.50mm) |
|
ELT-3KN123BFIXED IND 1MH 30MA 25OHM SMD |
4,420 |
|
Datasheet | ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 25Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
ETQ-P6F0R6BFAFIXED IND 580NH 19A 1.44MOHM SMD |
4,809 |
|
Datasheet | PCC-D126F (N6B) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 580 nH | ±20% | 19 A | - | Shielded | 1.44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

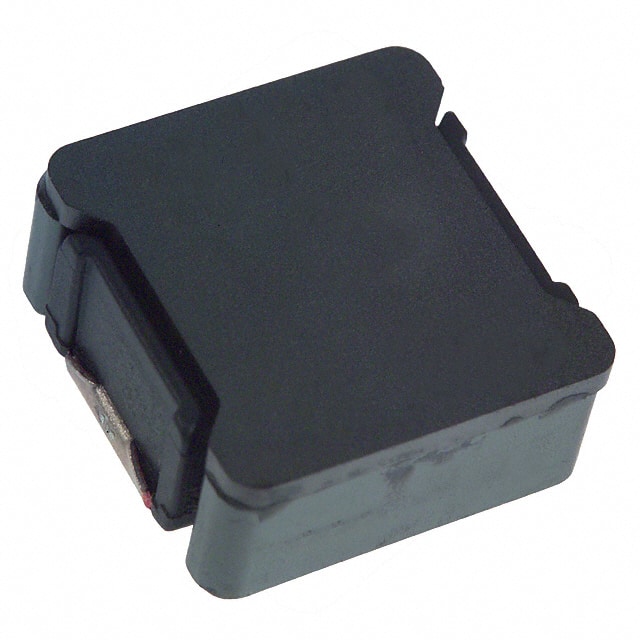

ETQ-P6F3R5SFAFIXED IND 3.5UH 9.3A 6.48MOHM SM |
3,563 |
|
Datasheet | PCC-F126F (N6) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 3.5 µH | ±30% | 9.3 A | 9.5A | Shielded | 6.48mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.224" (5.70mm) |
|

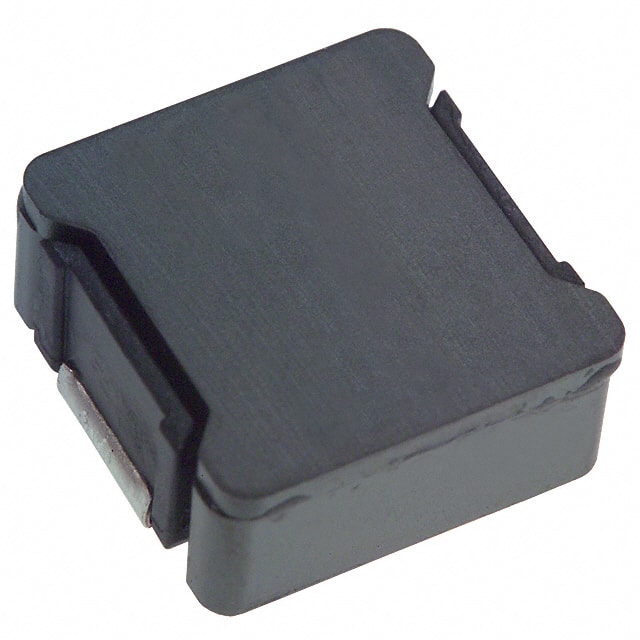

ETQ-PAF2R7HFAFIXED IND 2.7UH 17.5A 1.56 MOHM |
3,322 |
|
Datasheet | PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 2.7 µH | ±30% | 17.5 A | 15.5A | Shielded | 1.56mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
|
ETQ-P4M150KVKFIXED IND 15UH 4.5A 60.5MOHM SMD |
3,535 |
|
Datasheet | PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 4.5 A | 7.7A | Shielded | 60.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4M1R5KVKFIXED IND 1.5UH 15.1A 5.39 MOHM |
3,143 |
|
Datasheet | PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 15.1 A | 22.5A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
