Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-NC82NKFFIXED IND 82NH 185MA 730MOHM SMD |
1,800 |
|
Datasheet | NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 82 nH | ±10% | 185 mA | - | Unshielded | 730mOhm Max | 15 @ 100MHz | 520MHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

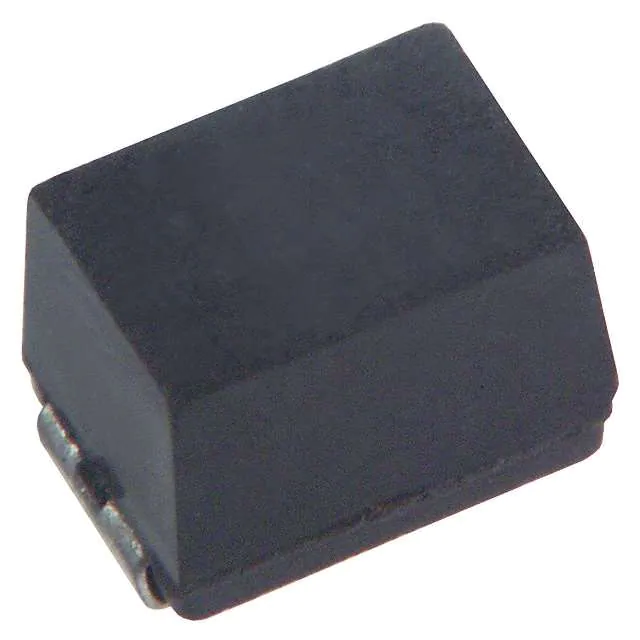

ELJ-FB181JFFIXED IND 180UH 85MA 13 OHM SMD |
6,581 |
|
Datasheet | FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 180 µH | ±5% | 85 mA | - | Unshielded | 13Ohm Max | 40 @ 1.5MHz | 5.1MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
ELL-4LG1R0NAFIXED IND 1UH 1.9A 43 MOHM SMD |
1,335 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.9 A | 2.2A | Shielded | 43mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
ELC-3GN470MFIXED IND 47UH 240MA 1.95OHM SMD |
5,589 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±20% | 240 mA | - | Unshielded | 1.95Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
|
ELC-3GN220MFIXED IND 22UH 330MA 950MOHM SMD |
2,006 |
|
Datasheet | N | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 330 mA | - | Unshielded | 950mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.059" (1.50mm) |
|
ETQ-P1W3R3WFPFIXED IND 3.3UH 2.8A 103MOHM SMD |
2,977 |
|
Datasheet | PCC-M0512W (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 2.8 A | - | Shielded | 103mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|

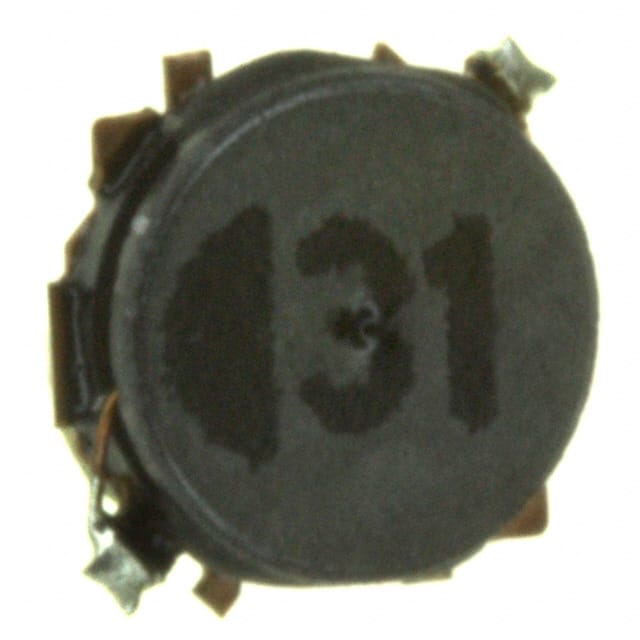

ELL-4FG1R0NAFIXED IND 1UH 1.95A 45 MOHM SMD |
1,387 |
|
Datasheet | G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 1.95 A | 1.9A | Shielded | 45mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.047" (1.20mm) |
|
ETQ-P3WR68WFNFIXED IND 680NH 17A 5.5 MOHM SMD |
821 |
|
Datasheet | PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 680 nH | ±20% | 17 A | - | Shielded | 5.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
ETQ-P3M1R5YFNFIXED IND 1.5UH 5.6A 11 MOHM SMD |
1,969 |
|
Datasheet | PCC-M0630M | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.5 µH | ±20% | 5.6 A | - | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3WR47WFNFIXED IND 470NH 20A 4.2 MOHM SMD |
1,490 |
|
Datasheet | PCC-M0630W | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 470 nH | ±20% | 20 A | - | Shielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
