Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P4MR47KLCINDUCTOR FIXED 0.47UH SMD |
830 |
|
Datasheet | PCC-M1040ML | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 470 nH | ±20% | 31.1 A | 47.3A | Shielded | 1.68mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P8MR33JFAINDUCTOR FIXED 0.33UH SMD |
410 |
|
Datasheet | PCC-M1280MF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 330 nH | ±20% | 53.5 A | 84.5A | Shielded | 0.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.496" W (13.20mm x 12.60mm) | 0.315" (8.00mm) |
|
ELJ-RF24NJFBFIXED IND 24NH 200MA 1 OHM SMD |
3,752 |
|
Datasheet | RF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Non-Magnetic | 24 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.9GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-RE1N8ZFAFIXED IND 1.8NH 500MA 80MOHM SMD |
4,084 |
|
Datasheet | RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.2nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|

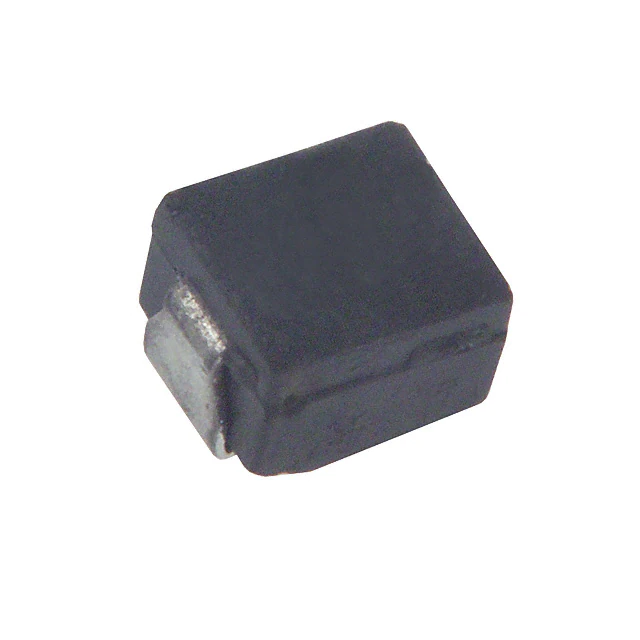

ELJ-FC180KFFIXED IND 18UH 65MA 5.4 OHM SMD |
2,000 |
|
Datasheet | FC | 1008 (2520 Metric) | Bulk | Obsolete | Wirewound | - | 18 µH | ±10% | 65 mA | - | Unshielded | 5.4Ohm Max | 25 @ 2.52MHz | 25MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-RF1N2DFBFIXED IND 1.2NH 400MA 60MOHM SMD |
3,805 |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 400 mA | - | Unshielded | 60mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-FCR39MFFIXED IND 390NH 160MA 950MOHM SM |
2,000 |
|
Datasheet | FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±20% | 160 mA | - | Unshielded | 950mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-QF18NJFFIXED IND 18NH 240MA 700MOHM SMD |
10,000 |
|
Datasheet | QF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 10 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF68NJFBFIXED IND 68NH 120MA 4 OHM SMD |
24,359 |
|
Datasheet | RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 68 nH | ±5% | 120 mA | - | Unshielded | 4Ohm Max | 8 @ 100MHz | 1.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-PF4N7DFFIXED IND 4.7NH 1.3A 100MOHM SMD |
9,380 |
|
Datasheet | PF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.3nH | 1.3 A | - | Unshielded | 100mOhm Max | 7 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
