Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744779068FIXED IND 6.8UH 2.2A 35 MOHM TH |
2,379 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.2 A | 2.8A | Unshielded | 35mOhm Max | - | 39.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
.6mm.jpg "74438321010")
|
74438321010FIXED IND 1UH 1.25A 196 MOHM SMD |
3,594 |
|
Datasheet | WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±30% | 1.25 A | 2.5A | Shielded | 196mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2506 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
|
744383210047FIXED IND 470NH 2.2A 95 MOHM SMD |
1,149 |
|
Datasheet | WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±30% | 2.2 A | 3.7A | Shielded | 95mOhm Max | - | 165MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2506 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
784773115FIXED IND 15UH 1.2A 235 MOHM SMD |
1,365 |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 1.46A | Unshielded | 235mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 4532 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
7447211222FIXED IND 2.2MH 460MA 2.4 OHM TH |
2,361 |
|
Datasheet | WE-TIF | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 2.2 mH | ±5% | 460 mA | 630mA | Unshielded | 2.4Ohm Max | - | 650kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.591" (15.00mm) |
|
744743471FIXED IND 470UH 580MA 1.5 OHM TH |
3,355 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 580 mA | 800mA | Unshielded | 1.5Ohm Max | - | 2.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|

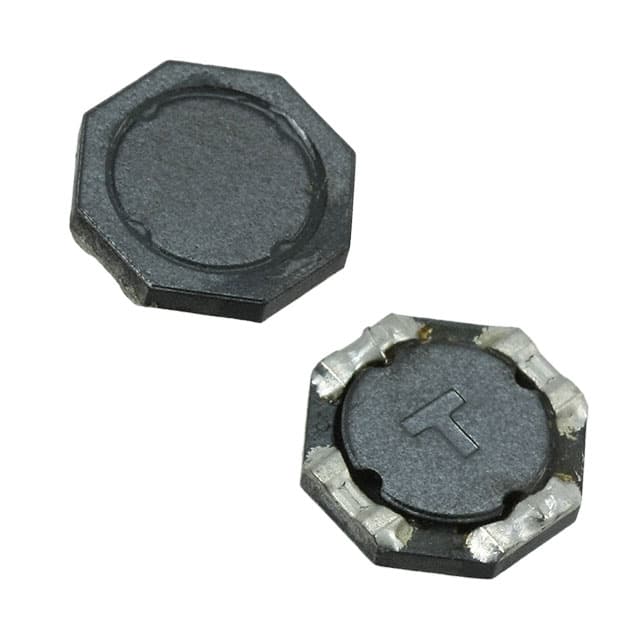

7440690016FIXED IND 1.6UH 3.1A 35 MOHM SMD |
3,741 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.6 µH | ±20% | 3.1 A | 3.3A | Shielded | 35mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.059" (1.50mm) |
|
744787101FIXED IND 100UH 950MA 467MOHM SM |
2,586 |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 950 mA | 870mA | Shielded | 467mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
7447231682FIXED IND 6.8MH 300MA 5.75OHM TH |
2,449 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 6.8 mH | ±5% | 300 mA | 390mA | Unshielded | 5.75Ohm Max | - | 400kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
|
7447231331FIXED IND 330UH 1.4A 290 MOHM TH |
1,595 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 330 µH | ±10% | 1.4 A | 1.75A | Unshielded | 290mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
