Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744153FIXED IND 137UH 7A 50 MOHM TH |
1,551 |
|
Datasheet | WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 137 µH | ±20% | 7 A | 2A | Unshielded | 50mOhm Max | - | 6.4MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - |
|
744156FIXED IND 380UH 6.2A 70 MOHM TH |
3,106 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 380 µH | ±20% | 6.2 A | 2A | Unshielded | 70mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.732" Dia x 0.610" W (44.00mm x 15.50mm) | - |
|
|
744155FIXED IND 220UH 7.1A 60 MOHM TH |
1,460 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 7.1 A | 2A | Unshielded | 60mOhm Max | - | 4.7MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.693" Dia x 0.591" W (43.00mm x 15.00mm) | - |
|

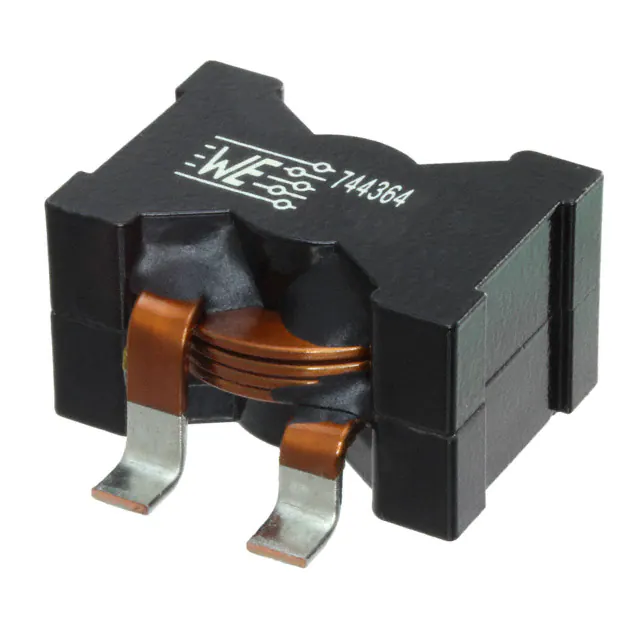

74436411500FIXED IND 15UH 36A 1.441MOHM SMD |
3,083 |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 36 A | 14.3A | Shielded | 1.441mOhm Max | - | 10.73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
744154FIXED IND 172UH 6.5A 55 MOHM TH |
3,994 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 172 µH | ±20% | 6.5 A | 2A | Unshielded | 55mOhm Max | - | 3.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - |
|

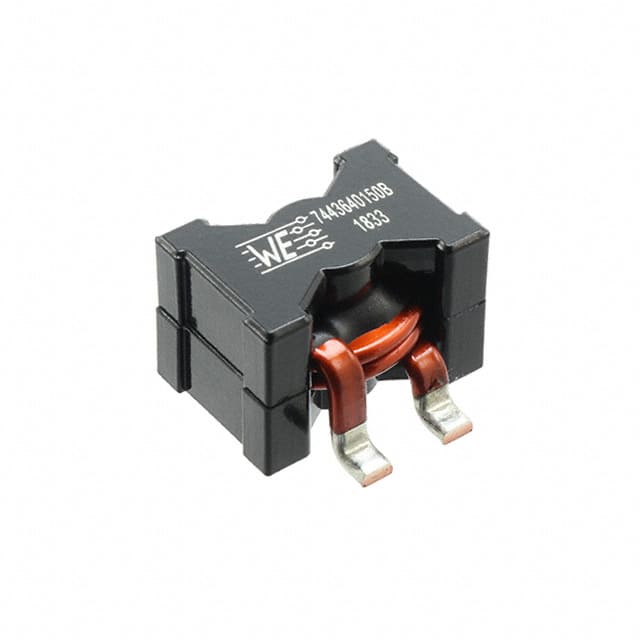

7443640150BFIXED IND 1.5UH 56A 0.484MOHM SM |
1,051 |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 56 A | 91.8A | Shielded | 0.484mOhm Max | - | 37.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
7443783533220FIXED IND 22UH 23.2A 8.8 MOHM TH |
2,106 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.2 A | 49.4A | Shielded | 8.8mOhm Max | - | 8.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
7447840075FIXED IND 7.5NH 300MA 310MOHM SM |
4,394 |
|
Datasheet | WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 7.5 nH | ±5% | 300 mA | - | Unshielded | 310mOhm Max | 8 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
7847806101WE-MCI MULTILAYER CERAMIC SMD IN |
1,959 |
|
Datasheet | WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847805220WE-MCI MULTILAYER CERAMIC SMD IN |
1,828 |
|
Datasheet | WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
