Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744304016FIXED IND 160NH 24A 0.00017OHM |
1,710 |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 160 nH | ±20% | 24 A | 32A | Shielded | 0.17mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1240 | 0.453" L x 0.465" W (11.50mm x 11.80mm) | 0.161" (4.10mm) |
|
744071101FIXED IND 100UH 1A 320 MOHM SMD |
3,484 |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1 A | 900mA | Shielded | 320mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.181" (4.60mm) |
|
74437356010FIXED IND 1UH 12.5A 0.00835OHM |
2,510 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 12.5 A | 34.2A | Shielded | 8.35mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.118" (3.00mm) |
|
|
744373560022FIXED IND 220NH 20A 0.00161OHM |
1,637 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 20 A | 63.4A | Shielded | 1.61mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8030 | 0.362" L x 0.335" W (9.20mm x 8.50mm) | 0.118" (3.00mm) |
|
744750420047FIXED IND 4.7UH 8.7A 8.5MOHM TH |
3,656 |
|
Datasheet | WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.7 A | 13.5A | Shielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
|

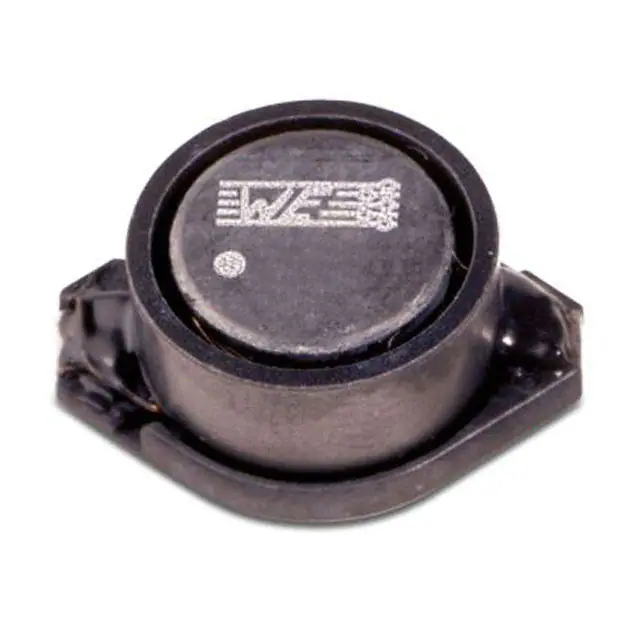

7445420FIXED IND 100UH 680MA 0.42OHM SM |
2,912 |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 680 mA | 1.1A | Shielded | 420mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
744750530047FIXED IND 4.7UH 11.8A 4.8MOHM TH |
2,014 |
|
Datasheet | WE-FAMI | Radial | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 11.8 A | 18A | Shielded | 4.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.433" (11.00mm) |
|
7447789147WFIXED IND 47UH 850MA 360MOHM SMD |
1,144 |
|
Datasheet | WE-PDW | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 850 mA | 1A | Shielded | 360mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|

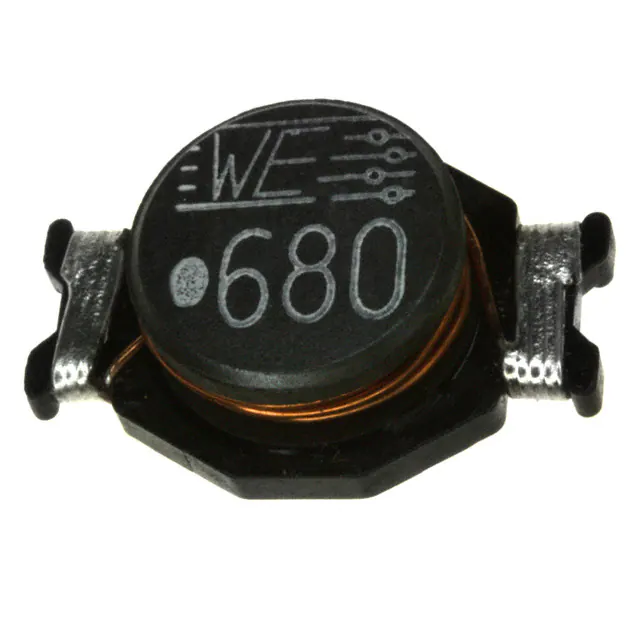

74457168FIXED IND 68UH 2.4A 134 MOHM SMD |
1,681 |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.4 A | 4A | Unshielded | 134mOhm Max | - | 7.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

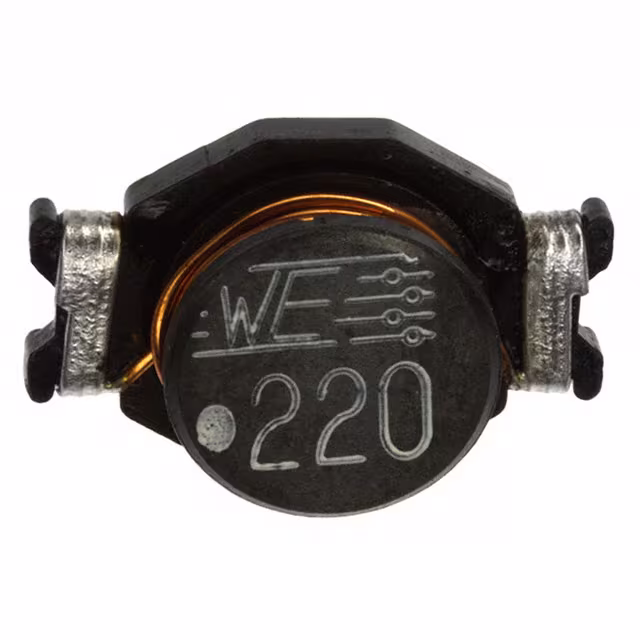

74457122FIXED IND 22UH 4A 47 MOHM SMD |
3,200 |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 4 A | 6.5A | Unshielded | 47mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
