Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

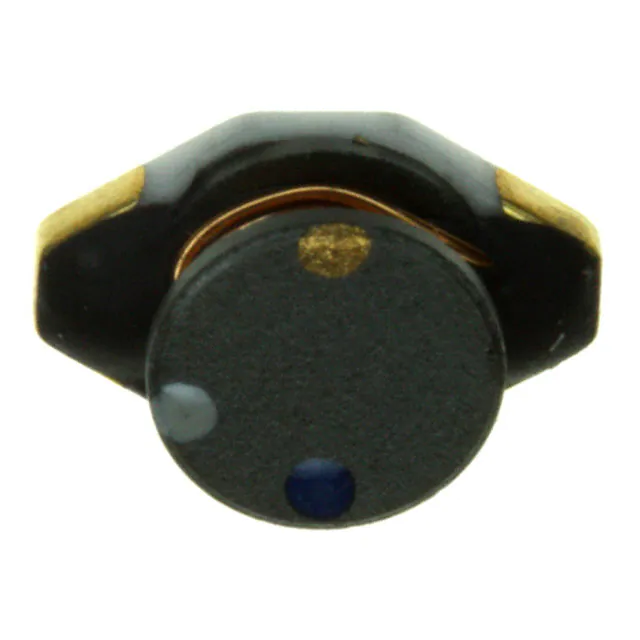

74455068FIXED IND 6.8UH 1.4A 130MOHM SMD |
1,743 |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.4 A | 1.2A | Unshielded | 130mOhm Max | - | 29MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

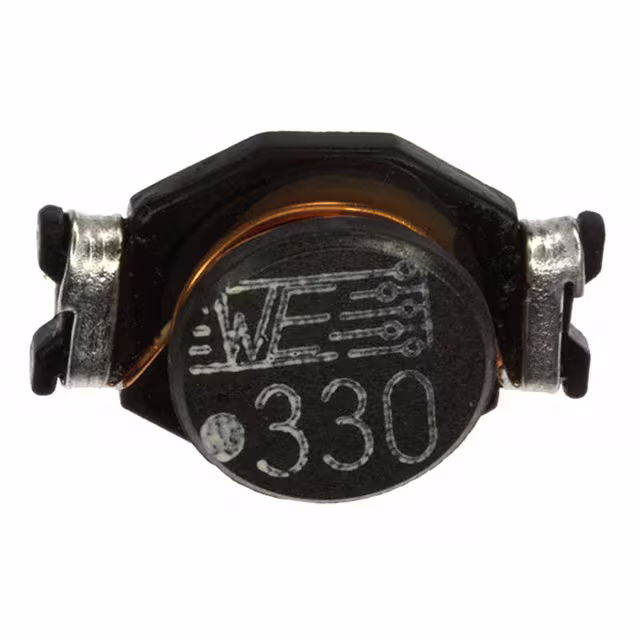

74457133FIXED IND 33UH 3.4A 70 MOHM SMD |
2,707 |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 3.4 A | 5.5A | Unshielded | 70mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
784777221FIXED IND 220UH 500MA 1.13OHM SM |
3,379 |
|
Datasheet | WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 µH | ±20% | 500 mA | 550mA | Shielded | 1.13Ohm Max | - | 3.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|
74437334012FIXED IND 1.2UH 5.2A 0.028OHM SM |
4,324 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.2 µH | ±20% | 5.2 A | 14A | Shielded | 28mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
7447471068FIXED IND 6.8UH 6.4A 13.9MOHM TH |
1,009 |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.4 A | 5A | Shielded | 13.9mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7843330820FIXED IND 8.2UH 7.2A 19.1MOHM SM |
1,591 |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7.2 A | 12.8A | Shielded | 19.1mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
7443782012033FIXED IND 3.3UH 28.7A 2.4MOHM TH |
2,330 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 28.7 A | 43A | Shielded | 2.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7444013119100FIXED IND 10UH 11A 4.8 MOHM TH |
2,634 |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 11 A | 58A | Unshielded | 4.8mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|
744138FIXED IND 727UH 3.5A 240 MOHM TH |
2,256 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 727 µH | ±20% | 3.5 A | 1.4A | Unshielded | 240mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 0.591" W (42.00mm x 15.00mm) | - |
|
74436410680FIXED IND 6.8UH 36A 1.441MOHM SM |
3,744 |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±15% | 36 A | 30A | Shielded | 1.441mOhm Max | - | 17.03MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
