Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-51591NLFIXED IND 20UH 2A 60 MOHM TH |
4,996 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 20 µH | - | 2 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.640" Dia x 0.280" W (16.26mm x 7.11mm) | - |
|
|
PE-52648NLFIXED IND 470UH 900MA 1.26OHM TH |
4,261 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
|
PE-92117NLFIXED IND 55UH 10A 13 MOHM TH |
1,318 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-53815NLFIXED IND 26UH 840MA 200 MOHM TH |
4,806 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 26 µH | ±20% | 840 mA | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.300" (7.62mm) |
|
|
PE-50503NLFIXED IND 500UH 1.75A 350MOHM TH |
3,079 |
|
Datasheet | - | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | 500 µH | - | 1.75 A | - | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.140" Dia (28.95mm) | 0.665" (16.89mm) |
|

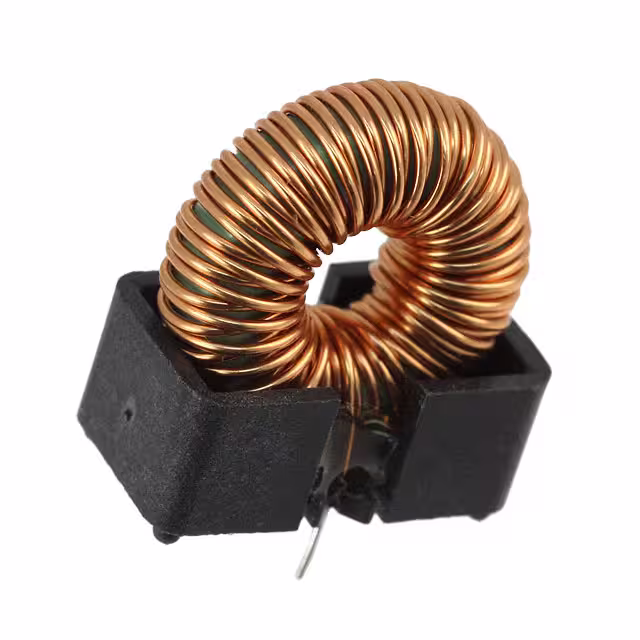

PE-54038NLTFIXED IND 77UH 2.7A 90 MOHM TH |
3,976 |
|
Datasheet | - | Radial, Vertical (Open) | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-92113NLFIXED IND 170UH 5A 50 MOHM TH |
1,643 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 170 µH | ±20% | 5 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-50508NLFIXED IND 2MH 1.5A 750 MOHM TH |
3,288 |
|
Datasheet | - | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | 2 mH | - | 1.5 A | - | Unshielded | 750mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.416" Dia (35.96mm) | 0.850" (21.59mm) |
|
|
PG0220.451NLFIXED IND 450NH 25.5A 1.85 MOHM |
2,511 |
|
Datasheet | PG0220NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | 450 nH | ±15% | 25.5 A | 35A | Unshielded | 1.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.362" (9.20mm) |
|
|
PA2080.141NLFIXED IND 140NH 40A 0.49 MOHM TH |
1,693 |
|
Datasheet | PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | 140 nH | ±10% | 40 A | 80A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
