Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-0603CDR12JTTFIXED IND 120NH 300MA 650MOHM SM |
1,175 |
|
Datasheet | 0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
P1167.394NLTFIXED IND 390UH 320MA 1.57 OHM |
4,831 |
|
Datasheet | P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±20% | 320 mA | 320mA | Shielded | 1.57Ohm Max | - | 2.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|

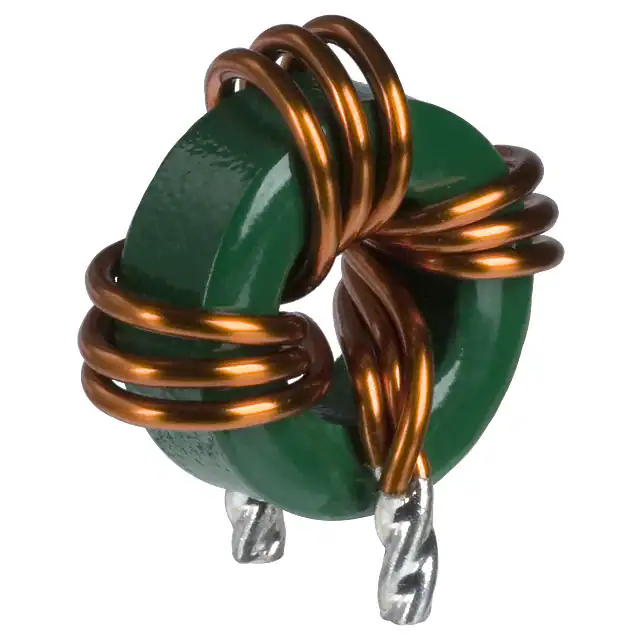

PG0122FIXED IND 480NH 30.5A 2 MOHM TH |
3,627 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 480 nH | - | 30.5 A | - | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.807" Dia x 0.374" W (20.50mm x 9.50mm) | - |
|
PA0690FIXED IND 880NH 22.5A 1.5MOHM TH |
2,645 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 880 nH | ±20% | 22.5 A | - | Unshielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|
PA0689FIXED IND 1.7UH 21.5A 2 MOHM TH |
1,342 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 1.7 µH | ±20% | 21.5 A | - | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|
P1967LFIXED IND 1.44UH 23.8A 3.8 MOHM |
1,777 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 1.44 µH | ±20% | 23.8 A | - | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - |
|

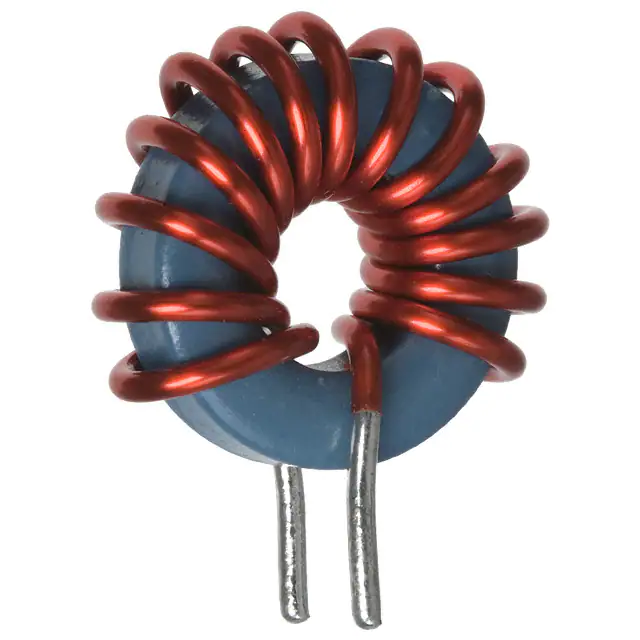

PA0431LFIXED IND 7.8UH 20.5A 5.5MOHM TH |
3,860 |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Bag | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|

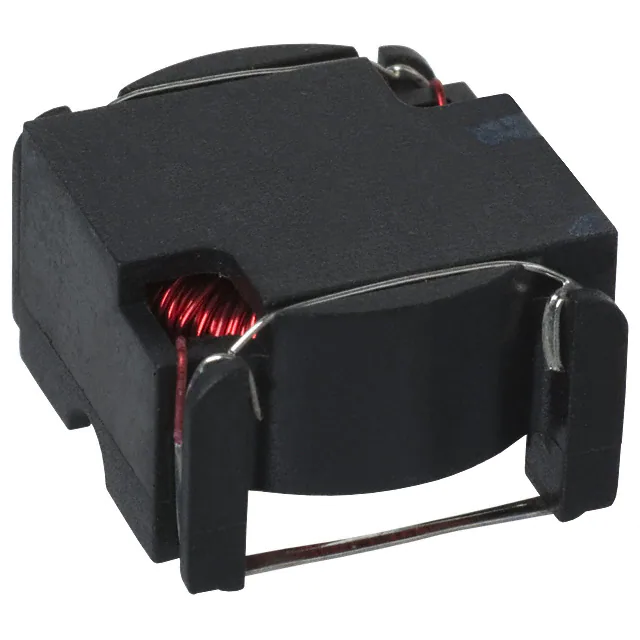

PE-53662FIXED IND 4.9UH 7.8A 12.4MOHM SM |
4,968 |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 4.9 µH | - | 7.8 A | - | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53651FIXED IND 5.1UH 5.4A 17.7MOHM SM |
4,260 |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 5.1 µH | - | 5.4 A | - | Unshielded | 17.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53652FIXED IND 9UH 5.5A 28 MOHM SMD |
1,395 |
|
Datasheet | SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
