Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-53801SFIXED IND 259UH 130MA 3.4OHM SMD |
4,682 |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 259 µH | ±20% | 130 mA | - | Shielded | 3.4Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.85mm) |
|

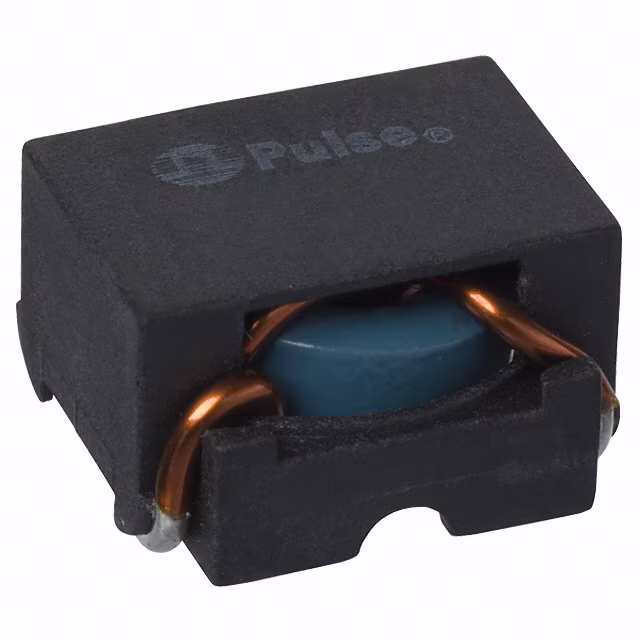

PE-53691NLFIXED IND 1.68UH 13.9A 3.6 MOHM |
3,419 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 1.68 µH | - | 13.9 A | - | Unshielded | 3.6mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.670" L x 0.670" W (17.02mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-53815SNLFIXED IND 26UH 840MA 200MOHM SMD |
1,336 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 26 µH | ±20% | 840 mA | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PG0322.122NLFIXED IND 1.2UH 32MA 1.674 MOHM |
4,343 |
|
Datasheet | PG0322NL | Radial, Horizontal - Corner Terminals | - | Obsolete | Wirewound | - | 1.2 µH | ±15% | 32 mA | 30A | Unshielded | 1.674mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Through Hole | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.374" (9.50mm) |
|
|
PG0087.333NLFIXED IND 33UH 650MA 386MOHM SMD |
1,026 |
|
Datasheet | PG0087NL | Nonstandard, Corner Terminals | Tray | Active | - | - | 33 µH | ±20% | 650 mA | 650mA | Shielded | 386mOhm Max | - | 17MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PE-53717NLFIXED IND 77UH 1.1A 309 MOHM SMD |
4,670 |
|
Datasheet | SLIC | Nonstandard | Tray | Active | Toroidal | - | 77 µH | - | 1.1 A | - | Shielded | 309mOhm Max | - | - | - | -40°C ~ 130°C | 500 kHz | - | Surface Mount | - | 0.560" L x 0.535" W (14.22mm x 13.59mm) | 0.350" (8.89mm) |
|
PA1494.622NLFIXED IND 6.2UH 9A 1.8 MOHM SMD |
3,075 |
|
Datasheet | PA1494NL | Nonstandard | Bulk | Active | Planar | - | 6.2 µH | ±15% | 9 A | 11A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1894.331NLFIXED IND 335NH 35A 0.64 MOHM TH |
2,626 |
|
Datasheet | PA1894NL | Radial, Vertical | Tray | Obsolete | - | - | 335 nH | ±10% | 35 A | 40A | Unshielded | 0.64mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
PE-92109NLFIXED IND 165UH 4A 70 MOHM TH |
2,290 |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 165 µH | ±20% | 4 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|
|
PG0036NLFIXED IND 19.5UH 3A 93 MOHM TH |
2,573 |
|
Datasheet | - | Radial, Horizontal Cylinder | Tray | Active | Toroidal | - | 19.5 µH | - | 3 A | 7A | Unshielded | 93mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.453" (11.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
