Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-54039SFIXED IND 53UH 3A 80 MOHM SMD |
3,733 |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54041SFIXED IND 25UH 3A 40 MOHM SMD |
4,068 |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-54044SFIXED IND 77UH 3A 80 MOHM SMD |
4,140 |
|
Datasheet | - | Nonstandard | Bulk | Obsolete | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
P0841FIXED IND 22.8UH 4.9A 36 MOHM TH |
4,115 |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Obsolete | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-53803FIXED IND 118UH 200MA 1.8 OHM TH |
1,017 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 118 µH | ±20% | 200 mA | - | Shielded | 1.8Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53804FIXED IND 79UH 250MA 1.5 OHM TH |
3,741 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 79 µH | ±20% | 250 mA | - | Shielded | 1.5Ohm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
|
PE-53807FIXED IND 26UH 450MA 620 MOHM TH |
2,655 |
|
Datasheet | - | Radial, Vertical - Corner Terminals | Bulk | Obsolete | Toroidal | - | 26 µH | ±20% | 450 mA | - | Shielded | 620mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.310" (7.87mm) |
|
P0751.103TFIXED IND 10UH 3.8A 50 MOHM SMD |
1,051 |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|

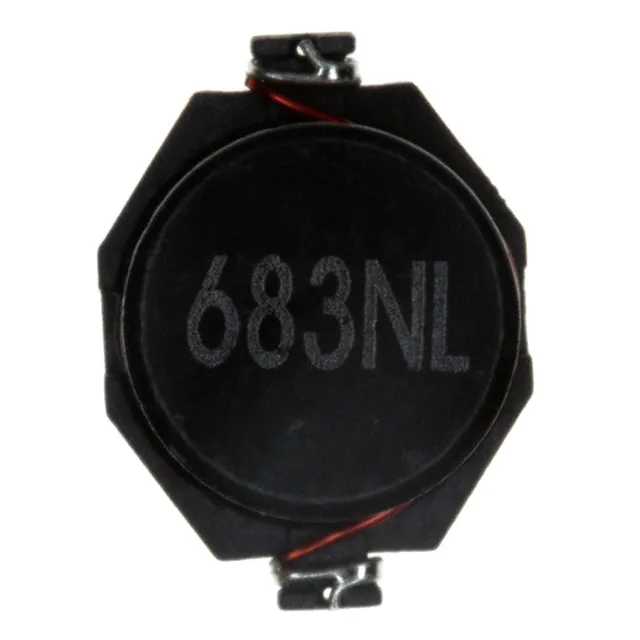

P0751.683TFIXED IND 68UH 1.4A 240 MOHM SMD |
4,293 |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1.4 A | 1.4A | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
P0848SFIXED IND 50UH 5A 25 MOHM SMD |
1,312 |
|
Datasheet | Bigfoot | Nonstandard | Tube | Obsolete | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
