| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

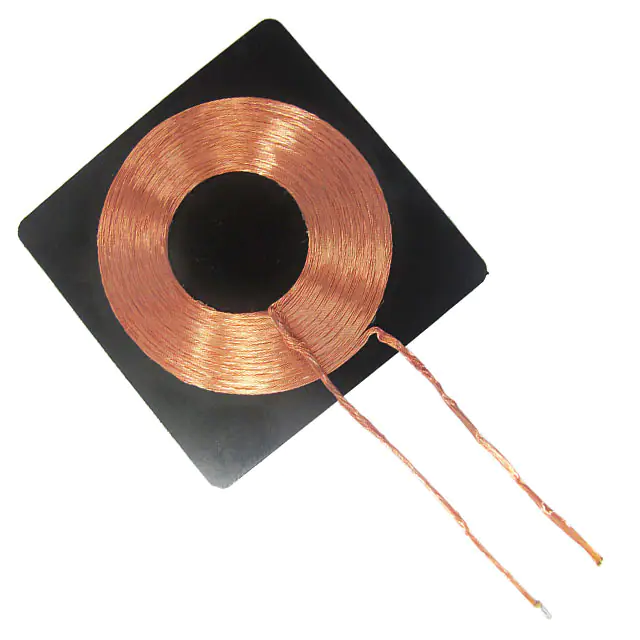

AWCCA-50N50H16-C51-BRX TX 1 COIL 1 LAYER 12.5UH |
2,059 |
|
Datasheet | AWCCA | Box | Discontinued at Digi-Key | Receiver, Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 80mOhm | 80 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm) |
|
AWCCA-47R38H08-C01-BRX 1 COIL 1 LAYER 11.5UH |
3,829 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 11.5µH | ±5% | 160mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.85" L x 1.50" W x 0.03" H (47.0mm x 38.0mm x 0.9mm) |
|

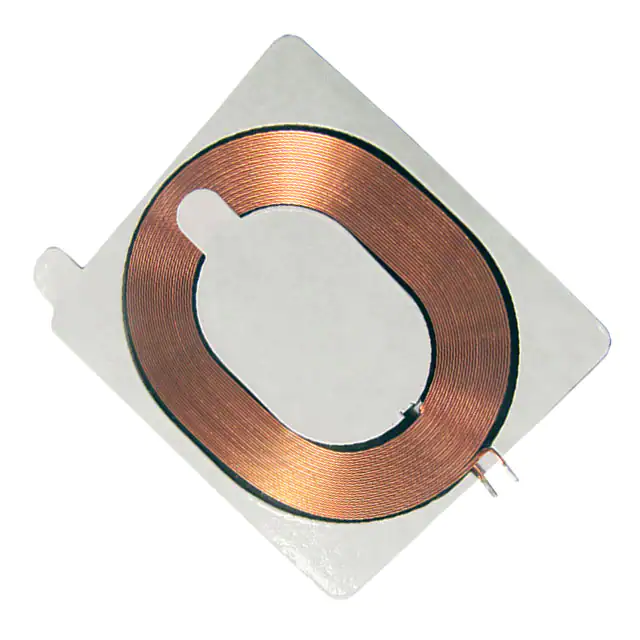

AWCCA-42R38H08-C03-BRX 1 COIL 1 LAYER 12UH |
3,970 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±5% | 350mOhm | 28 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm) |
|
AWCCA-36R36H08-C51-BRX 1 COIL 1 LAYER 12UH |
3,362 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 350mOhm | 27 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm) |
|
AWCCA-12R12H11-C01-BRX 1 COIL 1 LAYER 8UH |
3,902 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 520mOhm | 10 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm) |
|
AWCCA-50N50H30-C21-BRX TX 1 COIL 1 LAYER 6.3UH |
4,425 |
|
Datasheet | AWCCA | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 38mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
AWCCA-98T56H38-C01-BTRANSMITTER 3 COIL 1 LAYER |
1,421 |
|
Datasheet | AWCCA | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.0µH, 11.5µH, 12.0µH | ±10% | 56mOhm | 120 @ 100kHZ, 110 @ 100kHZ | - | - | - | -25°C ~ 85°C | 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) |
|
IWTX47R0BEEB6R3J11WIRELESS CHARGING COIL |
4,828 |
|
Datasheet | - | Bulk | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 38mOhm | 190 @ 200kHz | 7A | 22A | 22MHz | -55°C ~ 105°C | 1.85" Dia x 0.19" H (47.0mm x 4.9mm) |
|
AWCCA-30R30H05-C01-BRECEIVER COIL, 1 COIL, 29.5UH |
2,879 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 29.5µH | ±10% | 1.8mOhm | 10.4 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.02" H (30.0mm x 0.5mm) |
|
AWCCA-28R15H08-C01-BRECEIVER COIL, 1 COIL, 7.5UH |
2,910 |
|
Datasheet | AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 500mOhm | 15 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm) |
|
AWCCA-30N30H20-C01-BRECEIVER COIL, 1 COIL, 6.3UH |
4,913 |
|
Datasheet | AWCCA | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|
WRM483265-10F5-12V-GWIRELESS POWER TRANSFER RX COIL |
2,836 |
|
Datasheet | WRM | Box | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | - | - | - | - | 1.25A | - | - | -30°C ~ 70°C | 3.02" L x 1.29" W x 0.07" H (76.7mm x 32.7mm x 1.8mm) |
|
QPT-003515W TRANSMITTER MODULE |
2,440 |
|
Datasheet | - | Box | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 50mOhm | 40 @ 100kHz | - | - | - | - | 2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm) |
|
L41200R0248UH Q = 19 TYPICAL AT 125KHZ WI |
2,694 |
|
Datasheet | - | Tray | Active | Receiver | 1 Coil, 1 Layer | 48µH | - | - | 19 @ 125kHz | - | - | - | -40°C ~ 105°C | 1.20" L x 1.40" W x 0.08" H (30.5mm x 35.5mm x 2.0mm) |
|
WMRR126F-0WIRELESS CHARGE COIL |
1,152 |
|
Datasheet | - | Bag | Active | Receiver | 1 Coil, 1 Layer | 11.5µH | ±10% | 1.1mOhm | - | - | - | - | - | 1.02" L x 0.75" W x 0.02" H (26.0mm x 19.0mm x 0.4mm) |
|
CTRX103010BF-12R8KWIRELESS RECEIVER COIL |
4,678 |
|
Datasheet | CTRX103010BF | Bulk | Active | Receiver | 1 Coil, 2 Layer | 12.8µH | ±10% | 780mOhm Max | - | 800mA | - | - | -40°C ~ 85°C | 1.18" L x 0.39" W x 0.04" H (30.0mm x 10.0mm x 1.0mm) |
|
CTTX504424SF-6R3KWIRELESS TRANSMITTER COIL |
2,933 |
|
Datasheet | CTTX504424SF | Bulk | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
QPT-0014Transmitter |
3,632 |
|
Datasheet | - | Tape & Box (TB) | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 30mOhm | 40 @ 100kHz | - | - | - | - | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
|
|
CTTX505024SF-6R3KWIRELESS TRANSMITTER COIL |
3,084 |
|
Datasheet | CTTX505024SF | Bulk | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
CTRX324517SF-140KWIRELESS RECEIVER COIL |
2,185 |
|
Datasheet | CTRX324517SF | Bulk | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm | - | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
